LSIS XEC-DR32H User Manual

Chapter 7 Input/Output Specifications

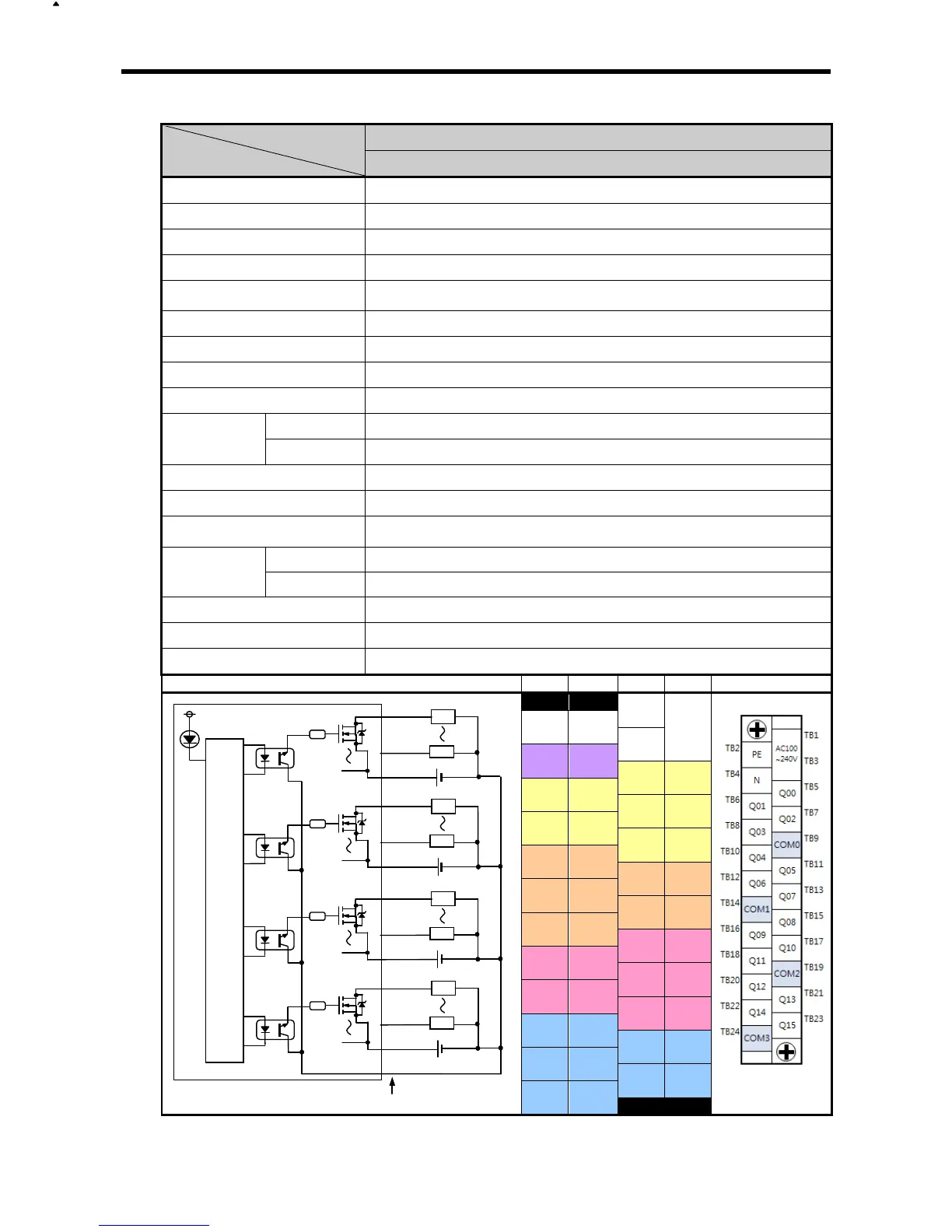

7.3.4 XEC-DP32H output unit (Source type)
Model
Specification
Main unit
XEC-DP32H
Output point 16 point
Insulation method Photo coupler insulation
Rated load voltage DC 12 / 24V
Range of load voltage DC 10.2 ~ 26.4V
Max. load current
General output: 0.5A/1 point,
Output for positioning (%QX0.0.0 ~ %QX0.0.3): 0.1A/1point, 2A/1COM
Off leakage current
0.1 ㎃ or less
Max. inrush current
4A / 10 ㎳ or less
On max. voltage drop
DC 0.4V or less
Surge killer Zenner diode
Response time
Off → On
1 ㎳ or less
On → Off
1 ㎳ or less (Rated load, resistive load)
Common method 4 point / COM
Proper cable size
Strand wire 0.3~0.75 ㎟ (external diameter 2.8 ㎜ or less)
Internal consumption
current
410 ㎃ (When all output are on)
External power
supply
Voltage
DC12/24V ± 10% (ripple voltage 4 Vp-p or less)
Current
25 ㎃ or less (When connecting DC24V)
Operation indicator Output On, LED On
External connection method 24 point connecting connector (M3 X 6 screw)
Weight 500g
Circuit configuration
No.
Contact
No.
Contact
Type
TB1
AC100
~240V
TB2 PE
TB3
TB4 N
TB5 00
TB6 01
TB7 02
TB8 03
TB9
COM
0
TB10 04
TB11 05
TB12 06
TB13 07
TB14 COM1
TB15 08
TB16 09
TB17 10
TB18 11
TB19
COM
2
TB20 12
TB21 13
TB22 14
TB23 15
TB24 COM3
내
부
회
로
TB04
DC12/24V
R
TB08
TB09
DC12/24V
R
TB10
TB13
TB14
DC12/24V
R
TB15
TB18
TB19
DC12/24V
R
TB20
TB23
TB24
DC5V
TB05
7-13
