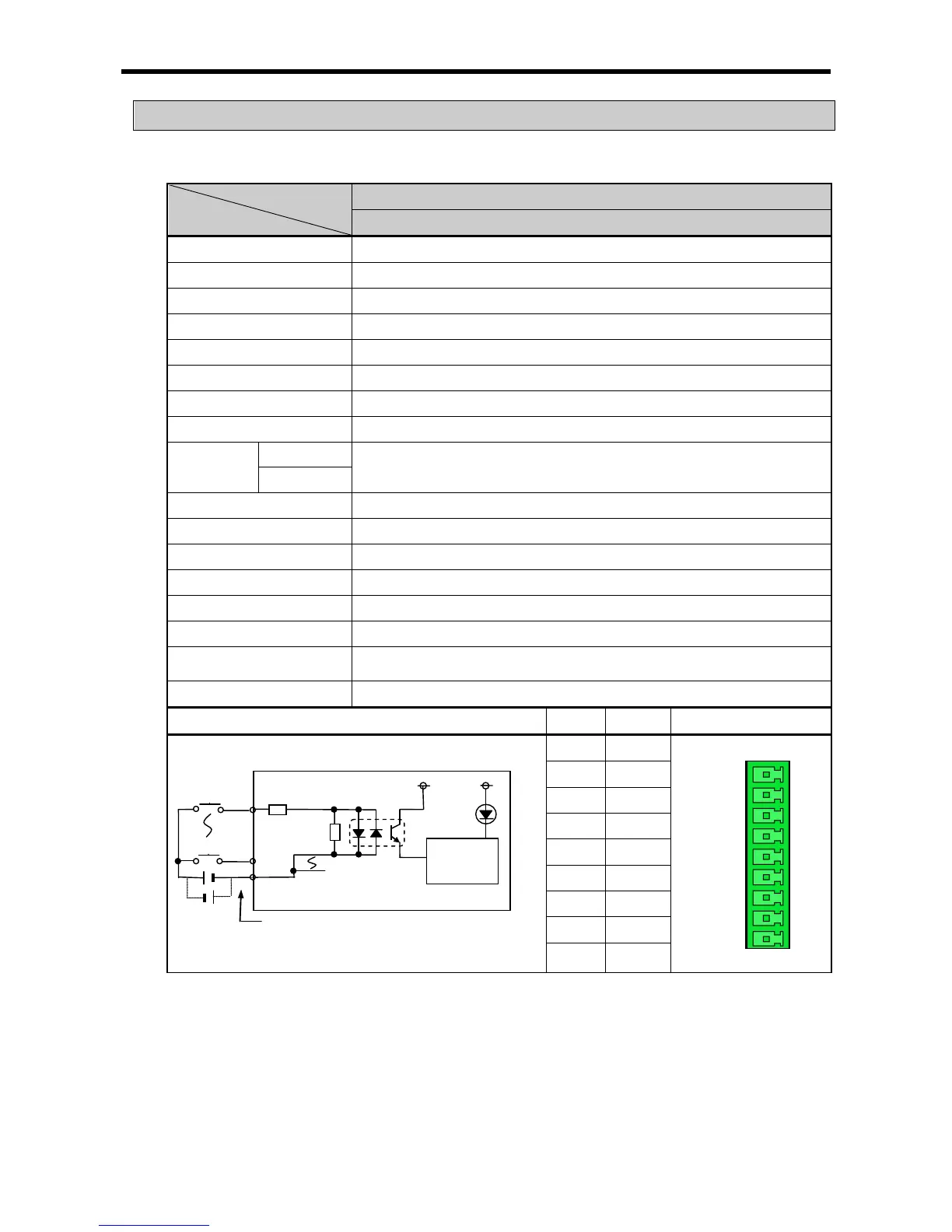

DC input module
XBE-DC08A
Input point 8 point
Insulation method Photo coupler insulation
Rated input voltage DC24V
Rated input current
About 4 ㎃
Operation voltage range DC20.4~28.8V (ripple rate < 5%)
On Voltage/Current DC19V or higher / 3 ㎃ or higher
Off Voltage/Current DC6V or less / 1 ㎃ or less
Input resistance
About 5.6 ㏀
Response
time
Off → On
1/3/5/10/20/70/100 ㎳(set by CPU parameter) Default: 3 ㎳
On → Off
Insulation pressure AC560Vrms / 3Cycle (altitude 2000m)
Insulation resistance 10 ㏁ or more by Mega ohmmeter
Common method 8 point / COM
Proper cable size
Stranded pair 0.3~0.75 ㎟ (External diameter 2.8 ㎜ or less)
Current consumption
30 ㎃ (when all point On)
Operation indicator Input On, LED On
