LSIS XEC-DR32H User Manual

Chapter 2 System Configuration
Chapter 2 System Configuration
The XGB series has suitable to configuration of the basic, computer link and network systems.
This chapter describes the configuration and features of each system.

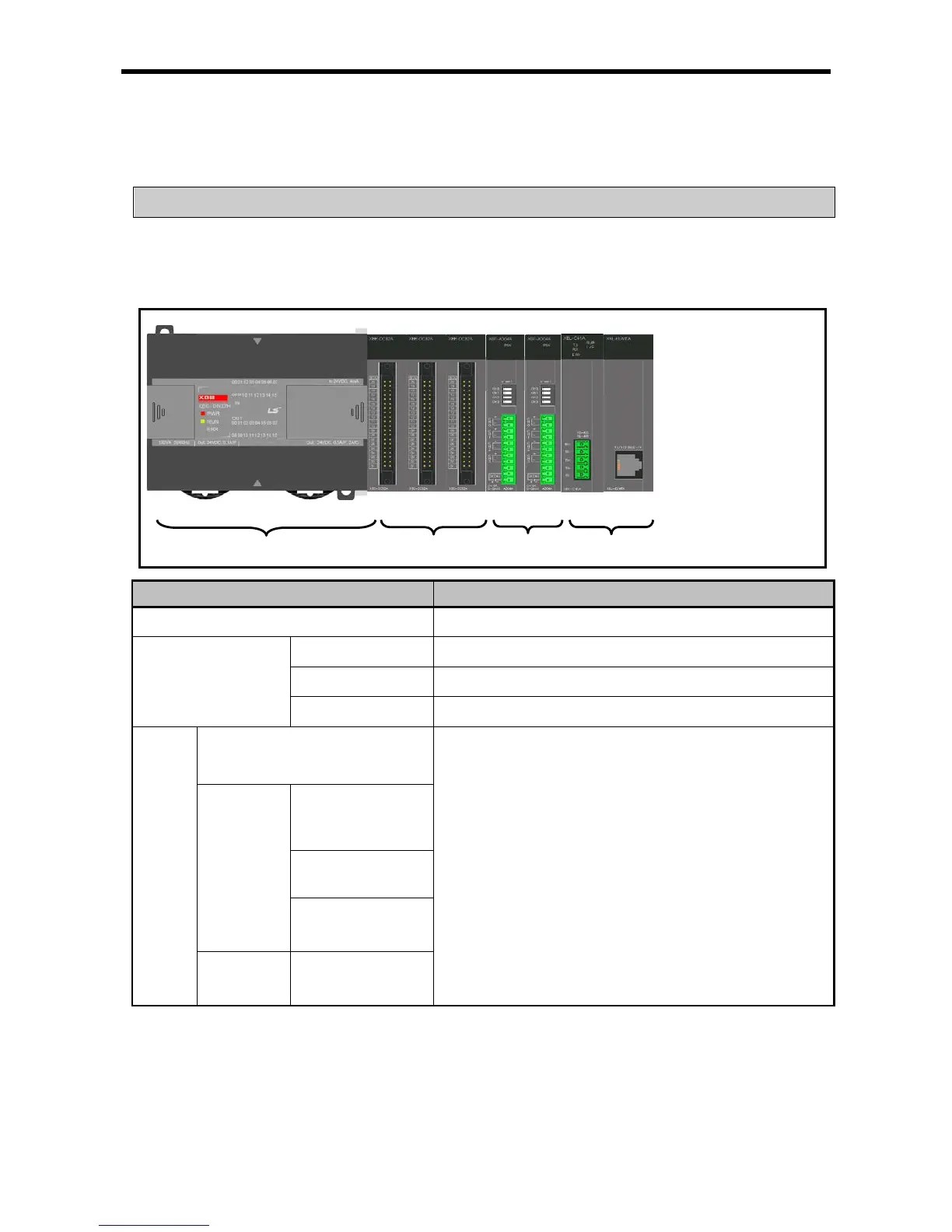

2.1 XGB System Configuration
XGB series System Configuration is as follows. Expanded I/O module and special module are available to
connect maximum 7 stages for “S” type and 10 stages for “H” type. Expanded communication module is
available to connect maximum 2 stages.
Item Description
Total I/O points
• XEC-DxxxH : 32~384 points
Maximum number of
expansion
modules
Digital I/O module
•
Max. 10
Special module
•
Max. 10
Comm. I/F module
•
Maximum 2
Items
Main unit
• refer to 2.2 Product List
Expansion
module
Digital I/O module
Special module
Communication I/F
module
Option
module
Memory module
* XG5000 V3.0 or above is required for XEC
Main Unit
I/O Module
Special Module
Communication Module
2-1
