Chapter 7 Input/Output Specifications

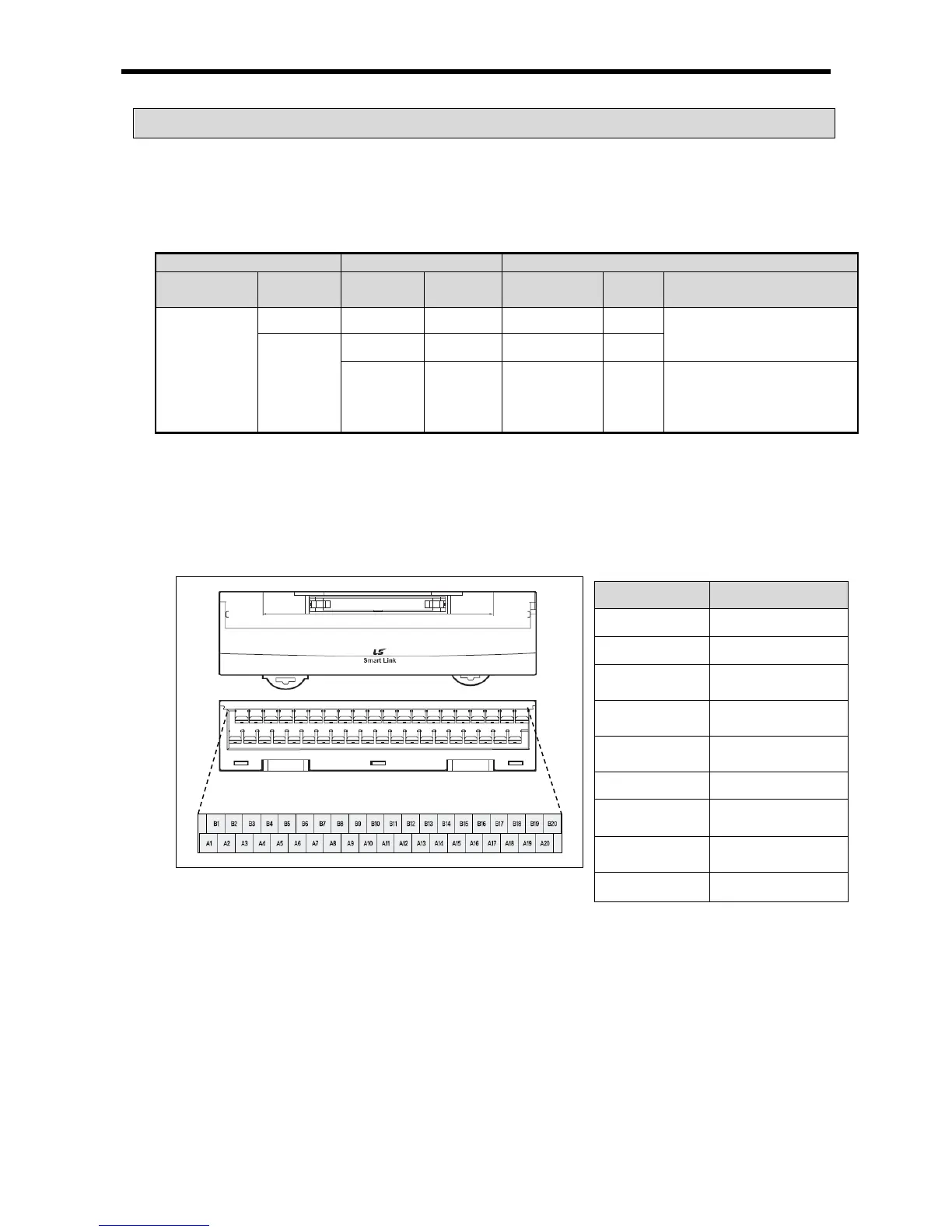

7.8 IO Wiring by Using Smart Link Board
7.8.1 Smart link board
Easy wiring is available by connecting the IO connector with smart link board.
The available smart link and IO cable are as follows.
XGB
Smart link
Connection cable
Classification Model Model
The no.
of pin
Model Length Content
Extension
module
XBE
-DC32A
SLP-T40P 40
SLT-CT101-XBE
1m
For extension module
connection
(40Pin)
XBE
-TN32A
SLP-T40P 40
SLT-CT101-XBE
1m
SLP-RY4A 40
SLP-CT101-XBE
1m
For extension module
connection (40Pin)
Exclusive for relay built-in
SLP type
It describes wring of XGB, SLP-T40P and SLT-CT101-XBM.
For wring of other smart link boards or XGB extension module, refer to XGB user manual for hardware.
1) SLT-T40P terminal array
Terminal array of SLP-T40P is as follows.
Item Specification
Rated voltage AC/DC 125[V]
Rated current Max. 1[A]
Withstanding
voltage
600V 1min
Insulation
resistor
100 ㏁ (DC500V)
Cable
specification
1.25[㎟] or below
Terminal/screw M3 X 8L
Torque
6.2
㎏
f.
㎝
or
above
Terminal
material
PBT, UL94V-0
Weight 186g
7-29
