LSIS XEC-DR32H User Manual

Chapter 7 Input/Output Specifications

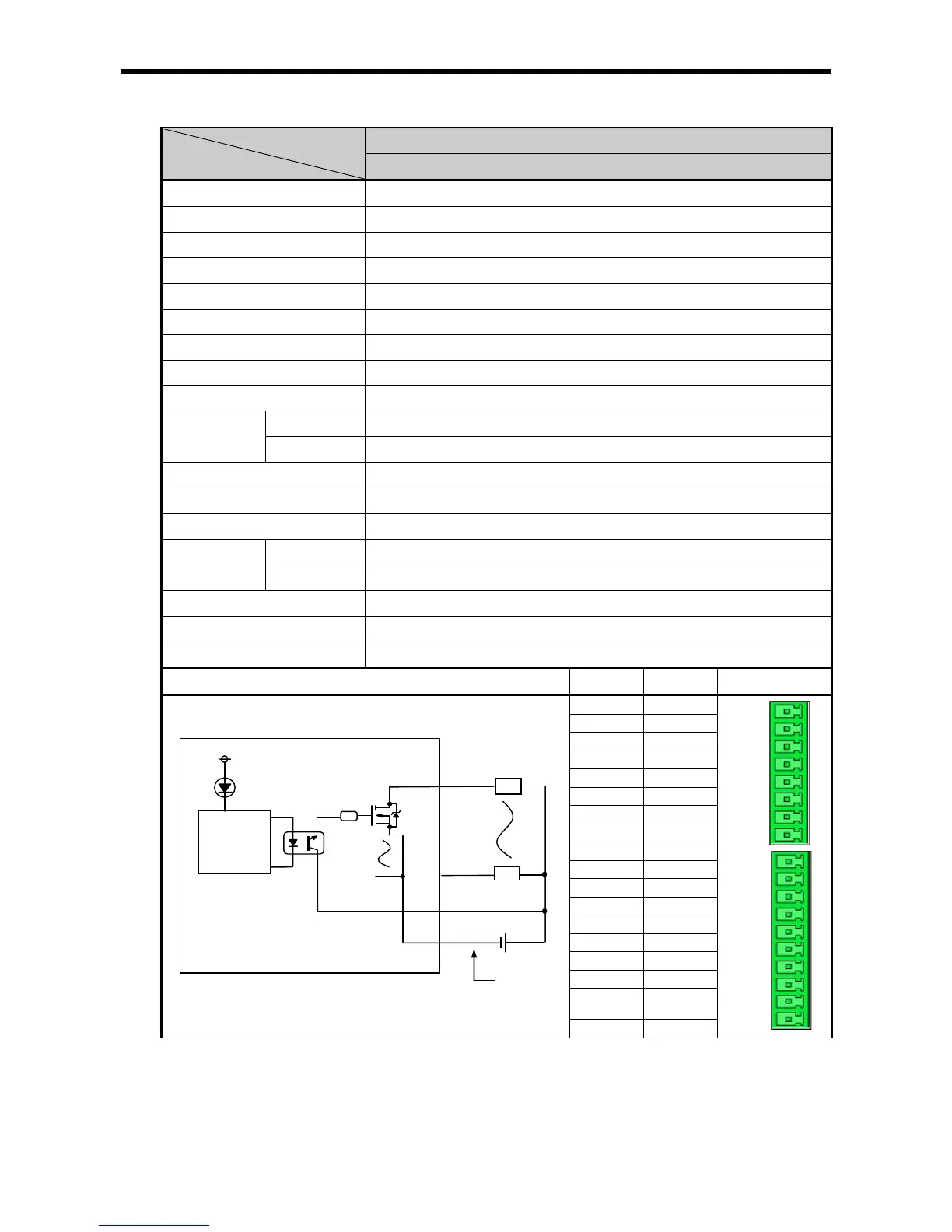

7.5.4 16 point transistor output module (Sink type)
Model
Specification
Transistor output module
XBE-TN16A
Output point 16 point
Insulation method Photo coupler insulation
Rated load voltage DC 12 / 24V
Load voltage range DC 10.2 ~ 26.4V
Max. load voltage 0.2A / 1 point, 2A / 1COM
Off leakage current
0.1 ㎃ or less
Max. inrush current
4A / 10 ㎳ or less
Max. voltage drop (On) DC 0.4V or less
Surge absorber Zener Diode
Response
time
Off → On
1 ㎳ or less
On → Off
1 ㎳ or less (Rated load, resistive load)
Common method 16 point / COM
Proper cable size
Stranded pair 0.3~0.75 ㎟ (External diameter 2.8 ㎜ or less)
Current consumption
60 ㎃ (when all point On)
External
power supply
Voltage
DC12/24V ± 10% (ripple voltage 4 Vp-p or less)
Current 10 ㎃ or less (DC24V connection)
Operation indicator Output On, LED On
External connection method 8 pin terminal block connector + 10 pin terminal block connector
Weight 54 g
Circuit configuration No. Contact Type
TB01
0
TB02
1
TB03
2
TB04
3
TB05
4
TB06
5
TB07
6
TB08
7
TB01
8
TB02
9
TB03
A
TB04
B
TB05
C
TB06
D
TB07
E
TB08
F
TB09
DC12
/24V
TB10
COM
Terminal block no.
DC12/24V
R
Internal
circuit
TB10
TB09
TB08
TB10
DC5V
TB01
TB02
TB03
TB04
TB05
TB06
TB07
TB08
TB09
TB10
TB01
TB02
TB03
TB04
TB05
TB06
TB07
TB08
7-22
