Relay output module
XBE-RY16A
Output point 16 point
Insulation method Relay insulation
Rated load voltage/ current
DC24V 2A (Resistive load) / AC220V 2A (COSΨ = 1), 5A/COM
Min. load voltage/current
DC5V / 1 ㎃
Max. load voltage/current AC250V, DC125V
Off leakage current
0.1 ㎃ (AC220V, 60 ㎐)
Max. On/Off frequency 3,600 times/hr
Surge absorber None
Service
life
Mechanical 20 millions times or more
Electrical
Rated load voltage / current 100,000 times or more
AC200V / 1.5A, AC240V / 1A (COSΨ = 0.7) 100,000 times or more
AC200V / 1A, AC240V / 0.5A (COSΨ = 0.35) 100,000 times or more
DC24V / 1A, DC100V / 0.1A (L / R = 7 ㎳) 100,000 times or more
Response
time
Off → On
10 ㎳ or less
On → Off
12 ㎳ or less
Common method 8 point / COM
Proper cable size
Twisted pair0.3~0.75 ㎟ (External diameter 2.8 ㎜ or less)
Current consumption
420 ㎃ (when all point On)
Operation indicator Output On, LED On
External connection method 9 point terminal block connector x 2 ea
Weight 130g

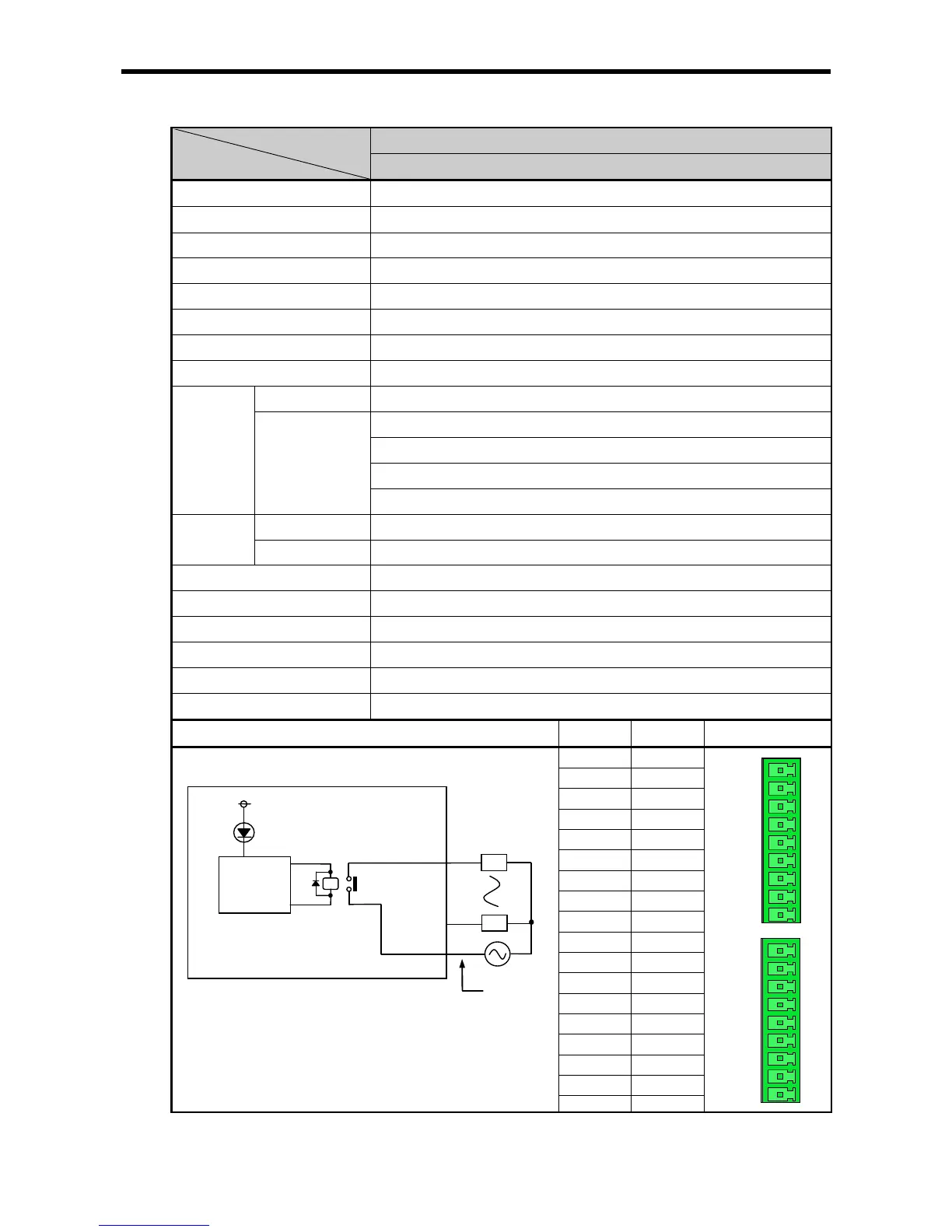

Circuit configuration No. Contact Type
