Chapter 8 Built-in High-speed Counter Function

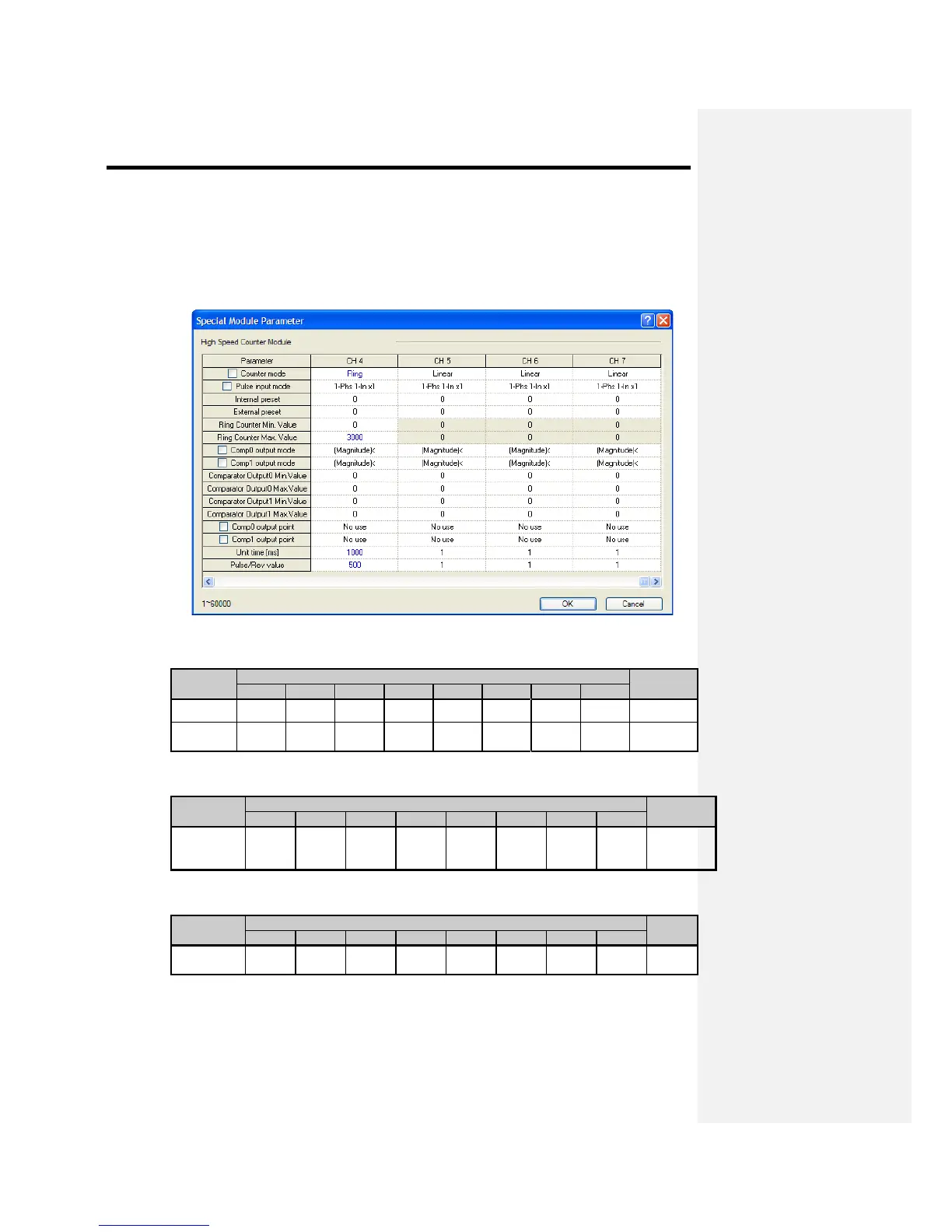

(6) Revolution/Unit time
While the Flag about the number of revolution per unit time is On, it counts the number of input
pulses for a specified time.
(a) Setting
1) Set the unit time and the number of pulse per 1 revolution.
Setting value is saved at the following special K area and user can designate directly.
Class
Device per each channel (Word)
Setting
range
Ch.0
Ch.1
Ch.2
Ch.3
Ch.4
Ch.5
Ch.6
Ch.7
Unit time
%KW322 %KW352 %KW382 %KW412 %KW2242
%KW2272 %KW2302
%KW2332
1~60000㎳
Pulse/Rev
value
%KW323 %KW353 %KW383 %KW413 %KW2243
%KW2273 %KW2303
%KW2333
1~60000
2) In case of using Rev/unit time function, enable the following special K area
Class
Device per each channel (Word)
Operation
Ch.0
Ch.1
Ch.2
Ch.3
Ch.4
Ch.5
Ch.6
Ch.7
Rev/unit
time
command
%KX4165 %KX4325 %KX4485 %KX4645 %KX34885 %KX35045
%KX35205
%KX35365
0: disable
1: enable
3) Rev/unit time value is saved at the following special K area.
Class
Device per each channel (Word)
Ref.
Ch.0
Ch.1
Ch.2
Ch.3
Ch.4
Ch.5
Ch.6
Ch.7
Rev/unit
time
%KD132 %KD137 %KD142 %KD147 %KD1029 %KD1097 %KD1102 %KD1107
-
8-17
