4.7 Remove Power to Administrative Workstation (
Netra
1
t 1120 and
Netra
20)
OVERVIEW
Since all peripherals on the Netra t 1120 and Netra 20 are internal, the only power
that needs to be removed is the System Power.
PROCEDURE
1. Be sure the AW has been “halted.” If this has not already been done, see "Halt
the Administrative Workstation," Procedure 4.2.
2. Remove power to the AW by pressing the ON/STBY switch on the front of the AW
to the STBY “
” position and holding it until the system powers down.
1. Trademark of Sun Microsystems, Inc.

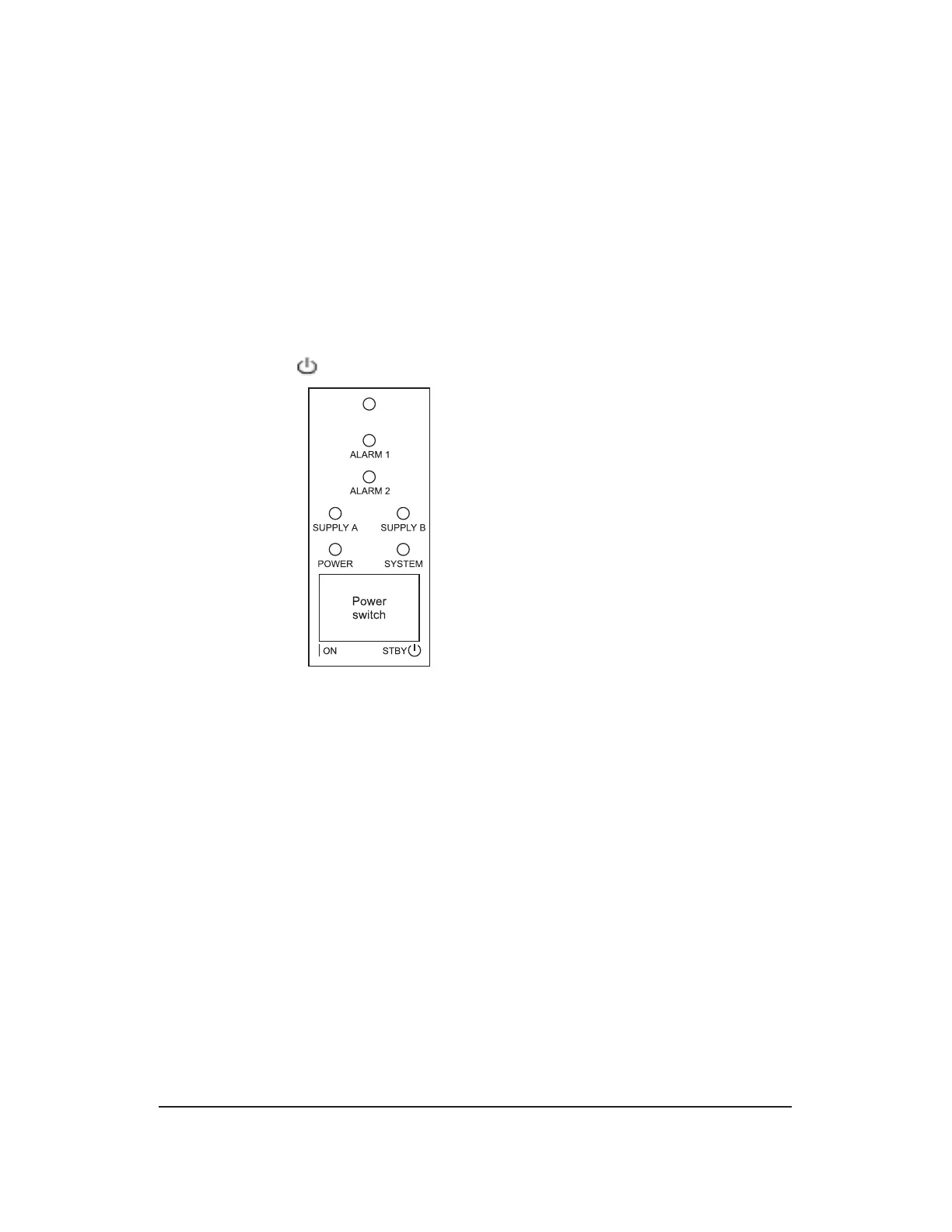

Figure 4.7-1 —
Netra
t 1120 Power Panel
235-200-150
October 2005
ADMINISTRATIVE WORKSTATION MAINTENANCE
Procedure 4.7
Issue 3.00L Page 4.7-1
