Table 2-8 BGE Port Assignments
BGE Port
Ethernet
Networks
0SM
1 Not assigned
2 ASM
3 Not assigned
2.9.5 Master Control Center (MCC)
The Master Control Center (MCC) is the primary communication link between on site
maintenance personnel and the DRM. A dual ported terminal is used to connect the
Solaris Console to the A serial port and the MCC to the B serial port on the rear of
the Netra t 1120 and Netra 20 AW. For a Netra 240 AW, the Solaris Console is
connected to the DB-9 serial port on the rear of the AW and the MCC is connected to
serial port 6 on SAI-1.
Figures 2-25, 2-26 and 2-27 illustrate the MCC and Solaris Console cable connections
for the KS-22396 terminal.
MCC Terminal
Keyboard
Video
AUX Port EIA Port
PCI
1
PCI
2
PCI
3
PCI
4

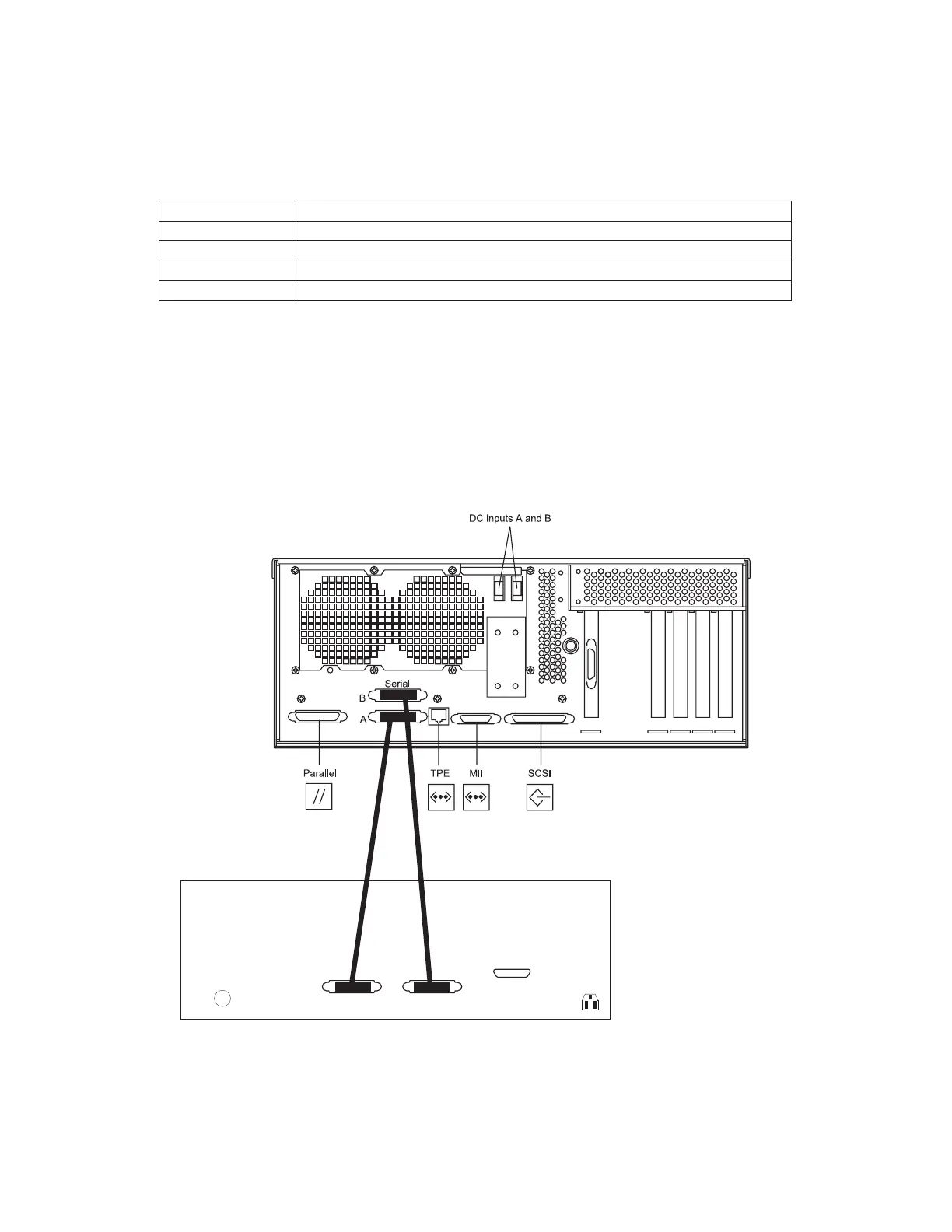

Figure 2-25 KS-22396 MCC Interface to Administrative Workstation -
Netra
t 1120
235-200-150
Feburary 2007
5ESS
®
SWITCH DISTINCTIVE REMOTE MODULE
Issue 3.00O Page 2-31
