The ASM and 5ESS switch are located at the host site, and the DRM and AW are
located at the remote sites.
2.7.2 Network Requirements
The host, remote, and the OSS sites all require network connectivity equipment
supporting the following network protocols:
WAN connectivity
ISDN
Ethernet/Fast Ethernet
Asynchronous/Synchronous connectivity
x.25, Internet Protocol (IP)
Standard IP routing protocol(s)
Protocol translation/conversion (XOT).
In addition, NEBS Level 3/ETSI compliance is recommended for all data network
equipment.
2.7.3 Functions
The DRM network consists of components that connect the ASM at the host site to the
DRM sites. This data network can be provided by Lucent Technologies, Inc., or
supplied by the customer. See Figure 2-9 for the Lucent Network Components Solution
(LNCS).
10 Base T
10 Base T
10 Base T
DynaStar 500
(Remote)
DynaStar 500
(Remote)
DynaStar 500
(Growth)
DynaStar 500
(Base)
Hub
Cajun™ P333T
Control
Workstation
DRM
(AW)
DRM
(AW)
1st DRM
15th DRM
ASM
DSCH
OSS Local
DS1/T1
5ESS®
Switch
10 Base T
10 Base T
DS1/T1
DS1/T1
OSS Remote
OS Local
OS Local
OSS Site
Host Site
Remote Site Remote Site
= Customer provided equipment
100 Base T
10 Base T
10 Base T

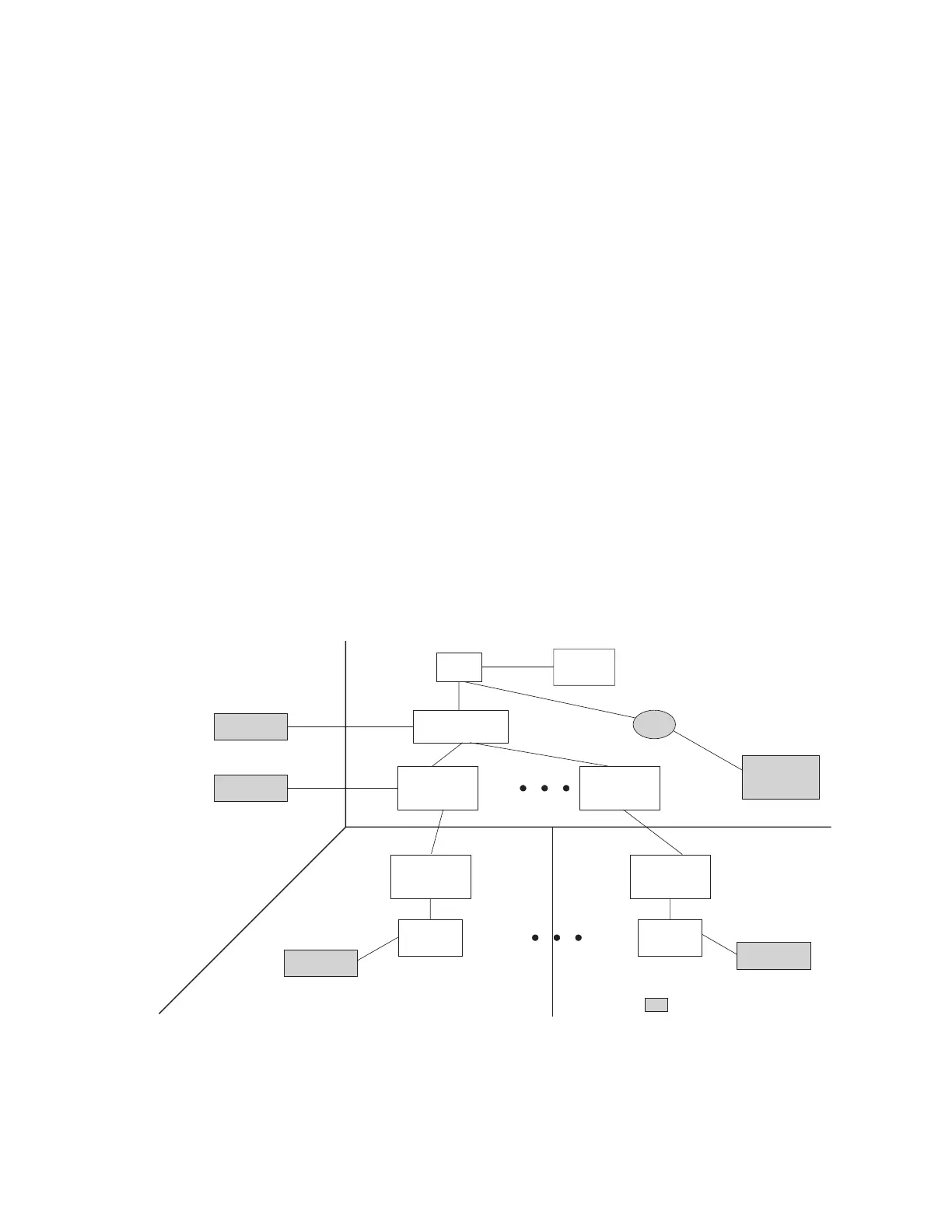

Figure 2-9 The Lucent Network Component Solution (LNCS) Architecture
5ESS
®
SWITCH DISTINCTIVE REMOTE MODULE 235-200-150
Feburary 2007
Page 2-14 Issue 3.00O
