Lucent 5ESS DRM User Manual

2.4.1 Administrative Workstation (AW) Hardware
The AW can be one of the following workstations equipped with a Master Control
Center (MCC), keyboard, CPU, two hard disk drives, DAT tape drive, and CD ROM
Netra t 1120 or DVD (Netra 20 and Netra 240) drive as follows:
• Netra t 1120 workstation, shown in Figure 2-2.
• Netra 20 workstation, shown in Figure 2-3.
• Netra 240 workstation, shown in Figure 2-4.
The AW also provides an Ethernet Interface for communication and data transfer to
the ASM and SM, a Serial Interface for terminal connections and a High Speed
Interface (HSI) for data link connections
The Netra t 1120 and Netra 20 are equipped with internal disk and DAT tape drives.
The Netra 240 is equipped with internal disk drives and an external DAT tape drive.
See Table 2-1 for a list of disk drive capacities.
Table 2-1 — Disk Drive Capacities
Disk Drive
5E16.2 and Later Releases
Netra t 1120 9GB/18GB
b
Netra 20 36GB
a
Netra 240 146GB
b
Note(s):
a. Fibre Channel Arbitrated Loop (FC-AL) Drive
b. Small Computer System Interface (SCSI) Drive

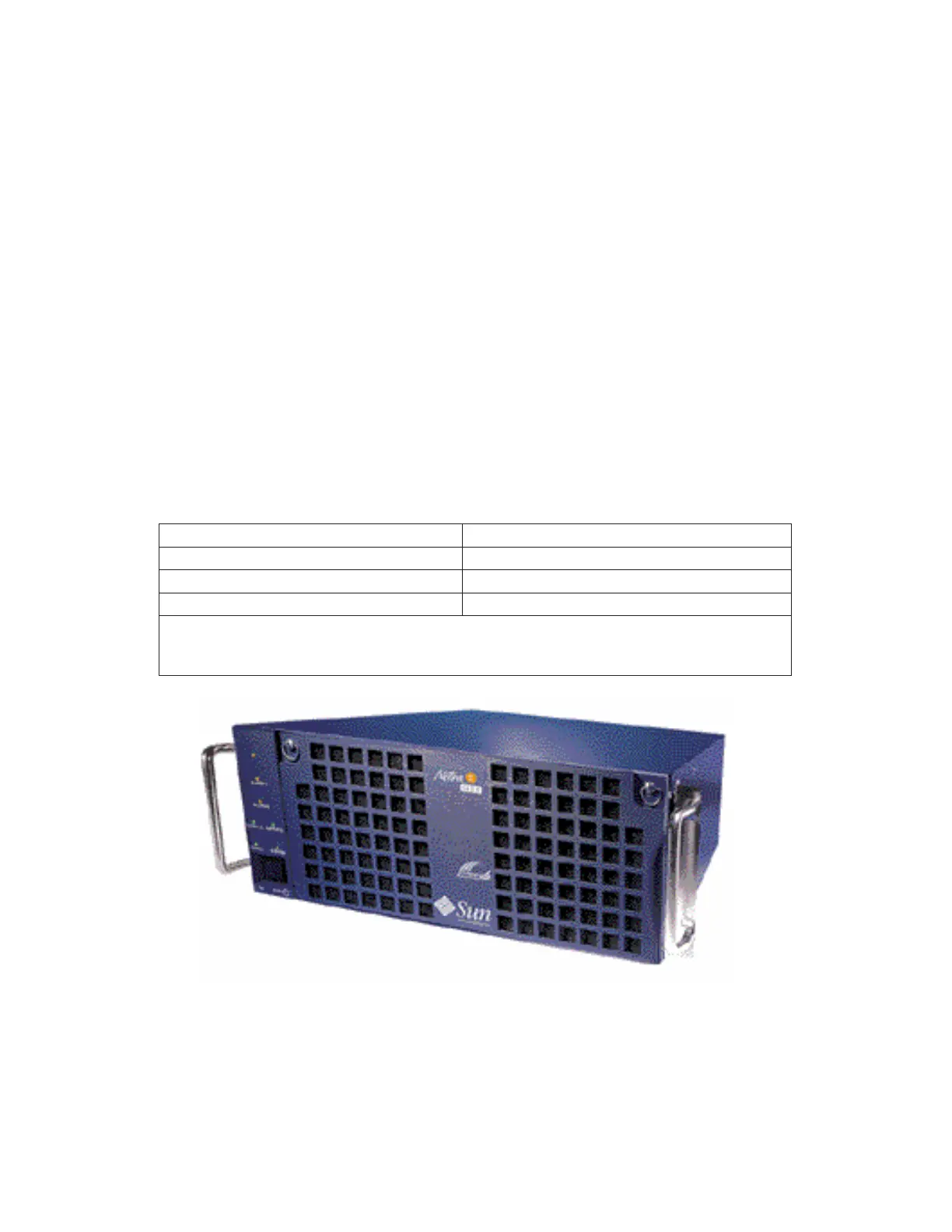

Figure 2-2 — Netra t 1120
5ESS
®
SWITCH DISTINCTIVE REMOTE MODULE 235-200-150
Feburary 2007
Page 2-4 Issue 3.00O
