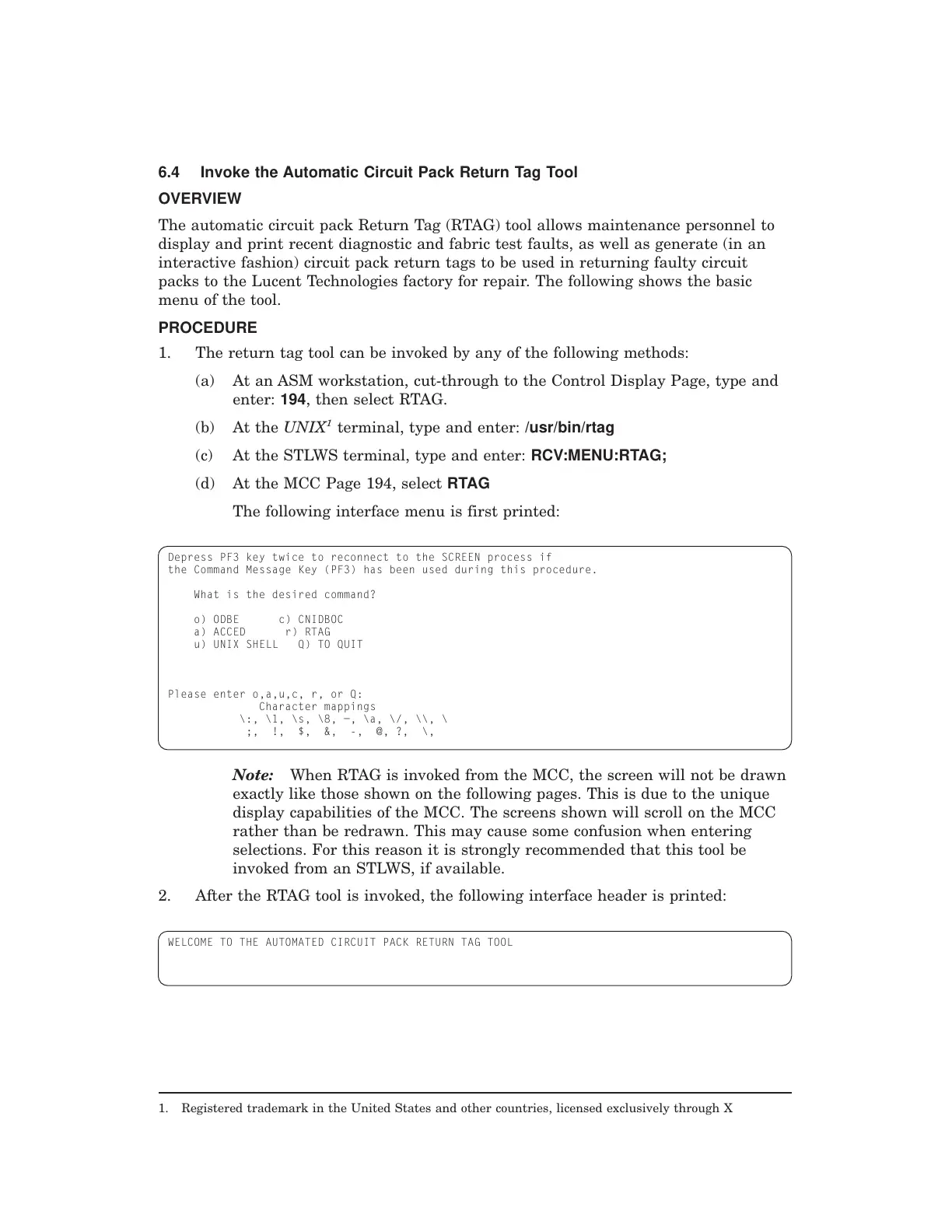

6.4 Invoke the Automatic Circuit Pack Return Tag Tool

OVERVIEW

The automatic circuit pack Return Tag (RTAG) tool allows maintenance personnel to

display and print recent diagnostic and fabric test faults, as well as generate (in an

interactive fashion) circuit pack return tags to be used in returning faulty circuit

packs to the Lucent Technologies factory for repair. The following shows the basic

menu of the tool.

PROCEDURE

1. The return tag tool can be invoked by any of the following methods:

(a) At an ASM workstation, cut-through to the Control Display Page, type and

enter: 194, then select RTAG.

(b) At the UNIX

terminal, type and enter: /usr/bin/rtag

(d) At the MCC Page 194, select RTAG

The following interface menu is first printed:

Depress PF3 key twice to reconnect to the SCREEN process if

the Command Message Key (PF3) has been used during this procedure.

What is the desired command?

o) ODBE c) CNIDBOC

a) ACCED r) RTAG

u) UNIX SHELL Q) TO QUIT

Please enter o,a,u,c, r, or Q:

Character mappings

\:, \1, \s, \8, −, \a, \/, \\, \

;, !, $, &, -, @, ?, \,

Note: When RTAG is invoked from the MCC, the screen will not be drawn

exactly like those shown on the following pages. This is due to the unique

display capabilities of the MCC. The screens shown will scroll on the MCC

rather than be redrawn. This may cause some confusion when entering

selections. For this reason it is strongly recommended that this tool be

invoked from an STLWS, if available.

2. After the RTAG tool is invoked, the following interface header is printed:

WELCOME TO THE AUTOMATED CIRCUIT PACK RETURN TAG TOOL

1. Registered trademark in the United States and other countries, licensed exclusively through X/Open

Company, Limited

235-200-150

January 2003

CORRECTIVE MAINTENANCE

Procedure 6.4

Issue 3.00 Page 6.4-1

Lucent 5ESS DRM User Manual
