5
10
4
2
3
1
6
9
7
8
7
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 65266 WATER RESERVOIR LEFT 1
2 9538 HOSE CLAMPS Ø 5/8" 3
3 66412 HOSE WATER ID . 1/2" 1
4 66407 HOSE WATER ID . Ø 1/2" 1
5 66408 WATER HOSE ID . Ø 3/4" 1
6 65634 WATER TANK RETAINER FLAT BAR LEFT HAND 1
7 90021 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 3/4" Lg. 2
8 90018 LOCK WASHER Ø 1/4" 2
9 66480 FOAM TANK SUPPORT 1
10 66477 LOWER WATER TANK FOAM TRIM 4

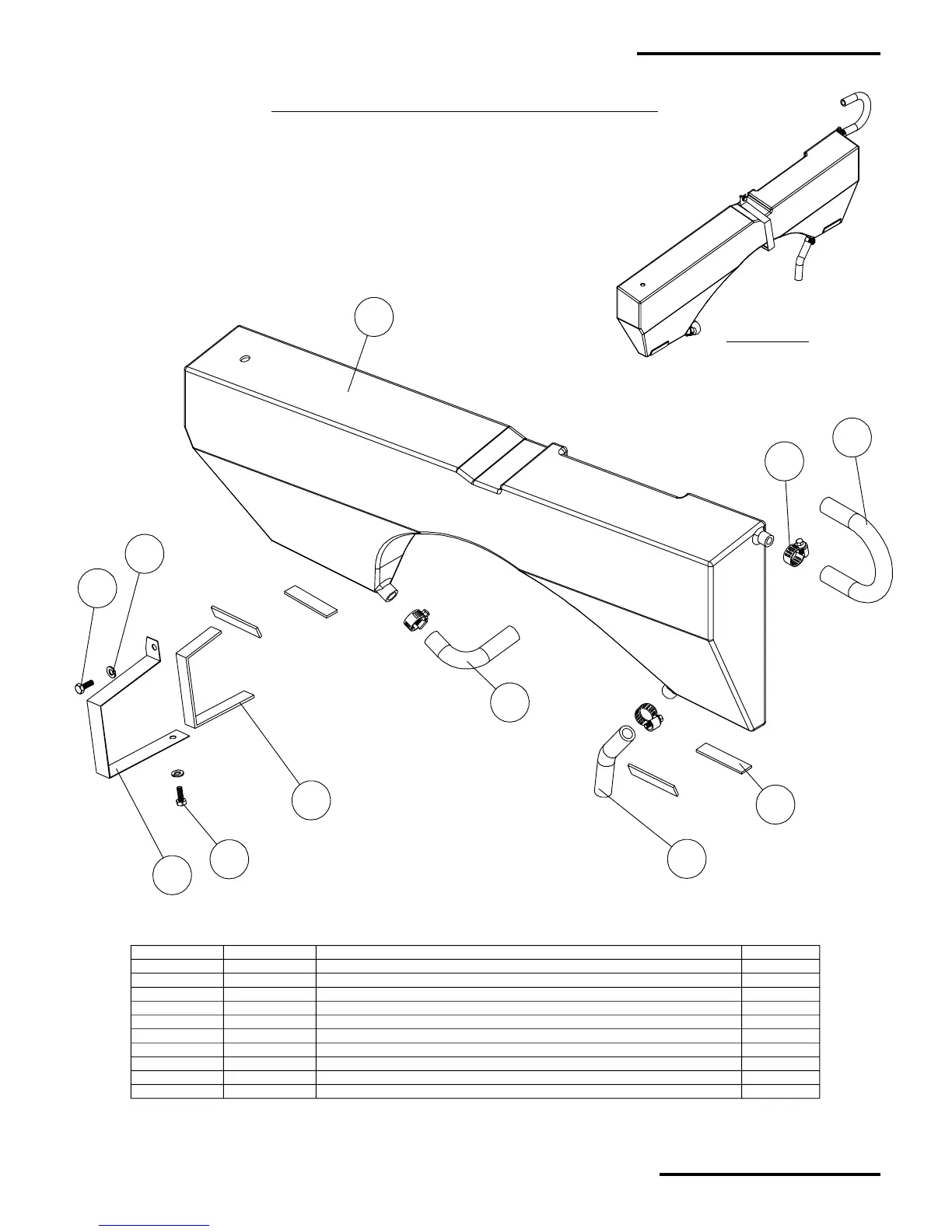

ASSEMBLY VIEW
A67597 - LEFT WATER TANK
LEFT WATER TANK & SUPPORT FOR ALL SERIAL NUMBER
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: ---
WA-3
Water System Section
