MADVAC PS300 - Page 107

3
1
10
9
8
7
5
2
4
11
6
8
7
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 65268 WATER RESERVOIR RIGHT 1
2 9538 HOSE CLAMPS Ø 5/8" 1
3 65753 WATER TANK CAP 1
4 66406 WATER HOSE I.D Ø 3/4" 1
5 65990 WATER TANK RETAINER FLAT BAR RIGHT HAND 1
6 66090 RIGHT WATER TANK RETAINING BRACKET 1
7 90021 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 3/4" Lg. 4
8 90018 LOCK WASHER Ø 1/4" 4
9 66480 FOAM TANK SUPPORT 1
10 66481 ALUMINIUM TAPE 1
11 66480 FOAM TANK SUPPORT 1

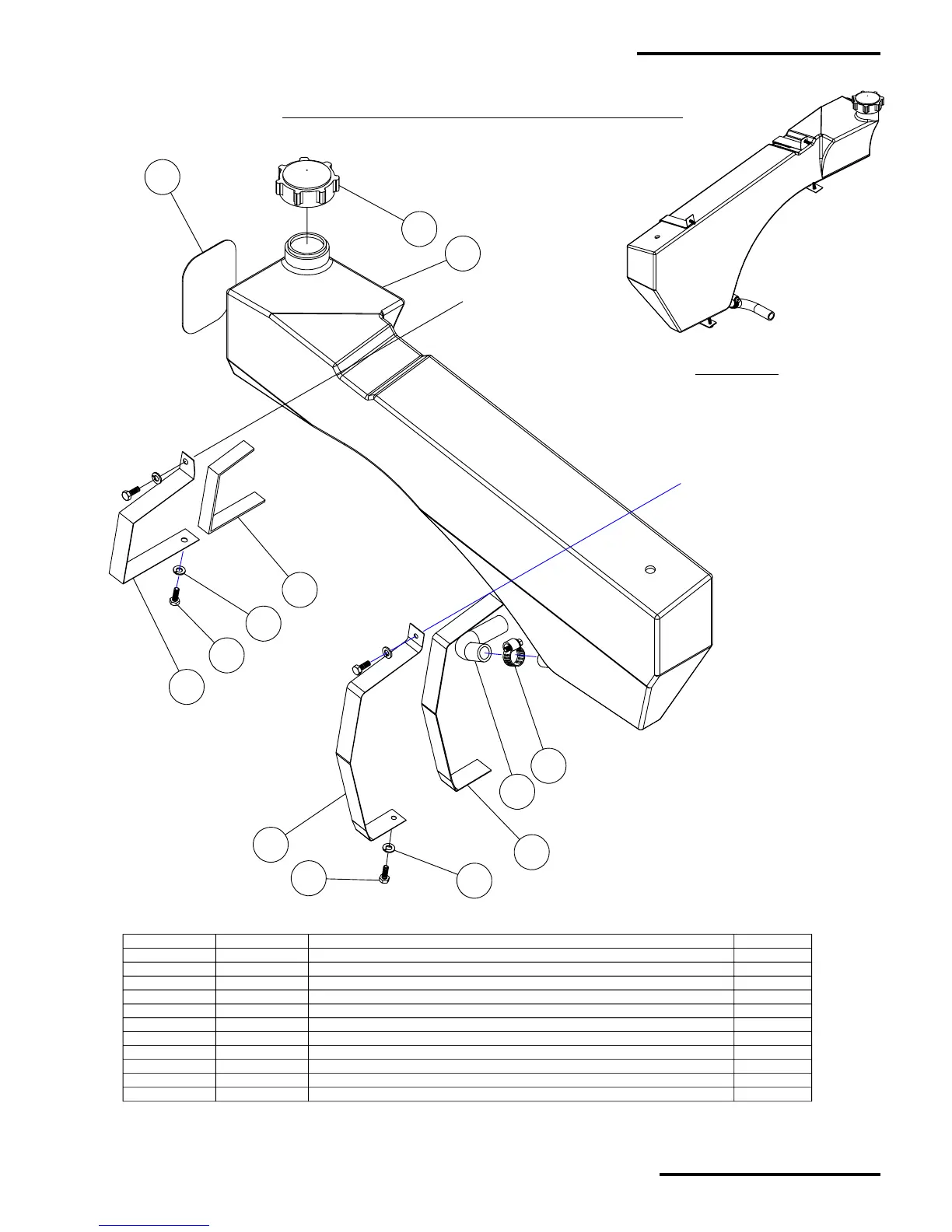

ASSEMBLY VIEW
A67596 - RIGHT WATER TANK
RIGHT WATER TANK & SUPPORT FOR ALL SERIAL NUMBER
MadVac Inc.
PS 300 Operator's & Parts Manual
May 2002, Revision: A
WA-4
Water System Section
