MADVAC PS300 - Page 108

8
11
12
7
13
15
15
13
7
4
5
6
4
5
6
6
5
4
3
14
9
10
2
1
14
9
10
A
A
A
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 66478 TANK SUPPORT FOAM TRIM 2
2 65088 FRONT WATER TANK SUPPORT PLATE 1
3 65090 REAR WATER TANK SUPPORT PLATE 1
4 66808 NYLON BARB FITTING Ø 3/4" 3
5 9538 HOSE CLAMPS Ø 5/8" 3
6 66406 WATER HOSE I.D Ø 3/4" 3
7 66501 WATER HOSE Ø 3/8" 2
8 66807 NYLON CAP 1
9 90018 LOCK WASHER Ø 1/4" 8
10 90021 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 3/4" Lg. 8
11 66477 LOWER WATER TANK FOAM TRIM 2
12 65276 LOWER WATER TANK 1
13 8426 HOSE CLAMP Ø 3/8" 2
14 90004 WASHER Ø 1/4" 8
15 66502 DEXTER FITTING 3/8" 2

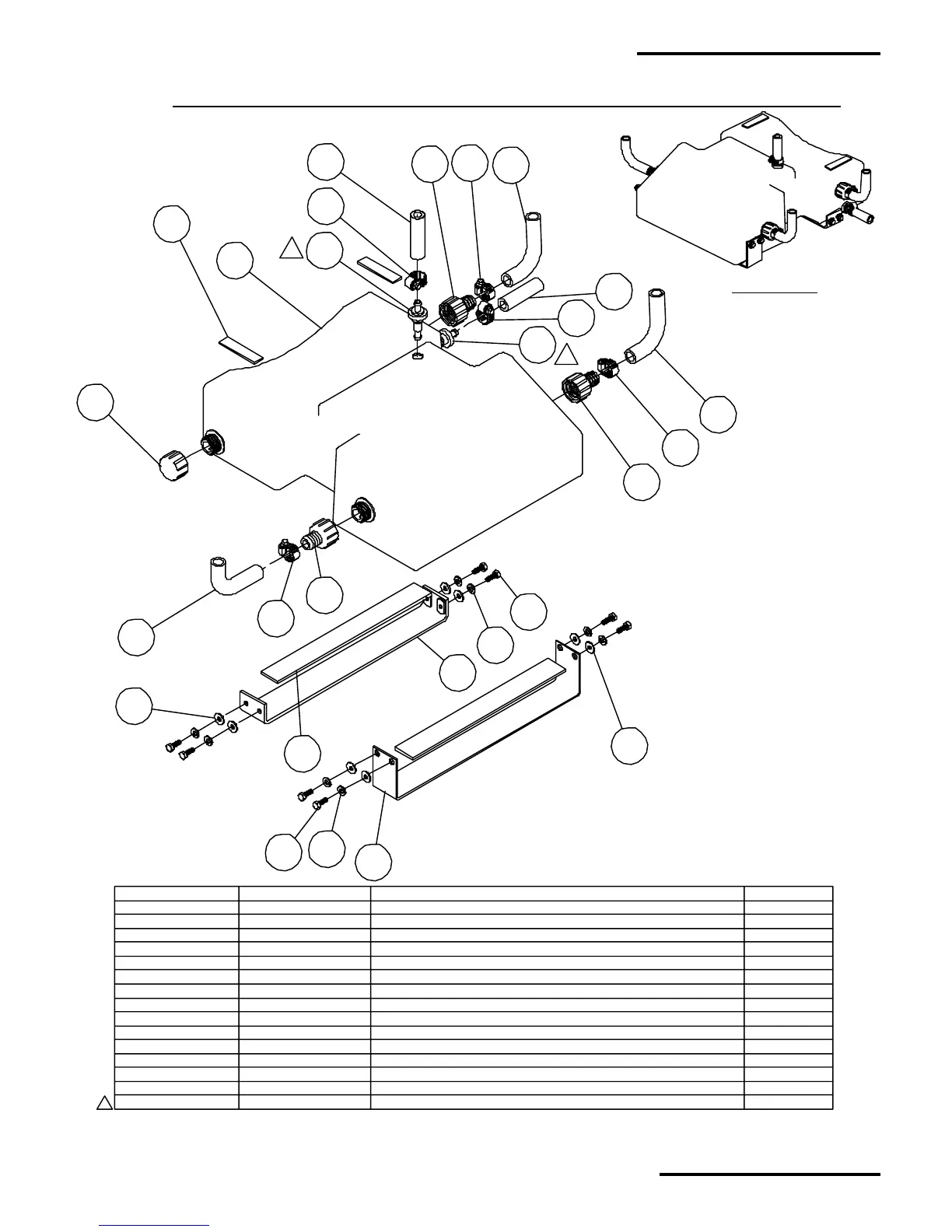

ASSEMBLY VIEW
A67595 - LOWER WATER TANK
LOWER WATER TANK & SUPPORT FOR SERIAL NUMBER 17251 AND UP, OTHERWISE CALL FACTORY.
MadVac Inc.
PS 300 Operator's & Parts Manual
March 2003, Revision: A
WA-5
Water System Section
