MADVAC PS300 - Page 155

5
2
18
19
6
9
10
3
7
8
14
15
11
12
17
13
1
4
16
22
20
21
25
23
24
28
29
30
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67610 CHASSIS & MIRROR 1
2 66279 REAR RUBBER SUPPORT 1
3 65702 LEFT ADUSTABLE HINGE SUPPORT PLATE 1
4 65538 RIGHT ADJUSTABLE HINGE SUPPORT PLATE 1
5 66373 RADIATOR FLATE BAR FOAM 1
6 67243 PEDAL ASSY RIGHT 1
7 67244 PEDAL ASSY LEFT 1
8 67248 PS300 PEDAL COLLAR 2
9 67449 PLASTIC PLUG 2
10 66123 HINGE RIGHT (PS300-61) 2
11 66124 HINGE LEFT (MALE) 2
12 90048 FLAT COUNTERSINK HEAD SCREW Ø 1/4" - 20 UNC X 3/4" Lg. 4
13 90079 ROUND HEAD CAP SCREW Ø 1/4" - 20 UNC. X 5/8" Lg. 4
14 90077 HEX. HEAD SET SCREW Ø 1/4" - 20 UNC. X 1/4" Lg. 4
15 90075 HEX BOLT Ø 5/16" - 18 UNC X 1" Lg. 2
16 90001 WASHER Ø 5/16" 6
17 90000 LOCK NUT Ø 5/16" - 18 UNC. 4
18 90021 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 3/4" Lg. 4
19 90018 LOCK WASHER Ø 1/4" 4
20 66441 RECESSED BUMPER 2
21 90157 SELF TAPPING 10-32- X 1/2" lg 2
22 67247 ANTI-SLIP FOR PS300 PEDAL 2
23 90005 WASHER # 10 3
24 90006 LOCK NUT # 10 - 32 UNF 3
25 66302 BACK RUBBER SHIELD 1
26 90003 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 1" Lg. (FULL THREADS) 2
27 90004 WASHER Ø 1/4" 2
28 66303 HITCH RUBBER PATCH 1
29 90074 POP RIVET Ø 3/16 X 3/8" lg 5
30 90159 FLAT WASHER Ø 3/16" 5

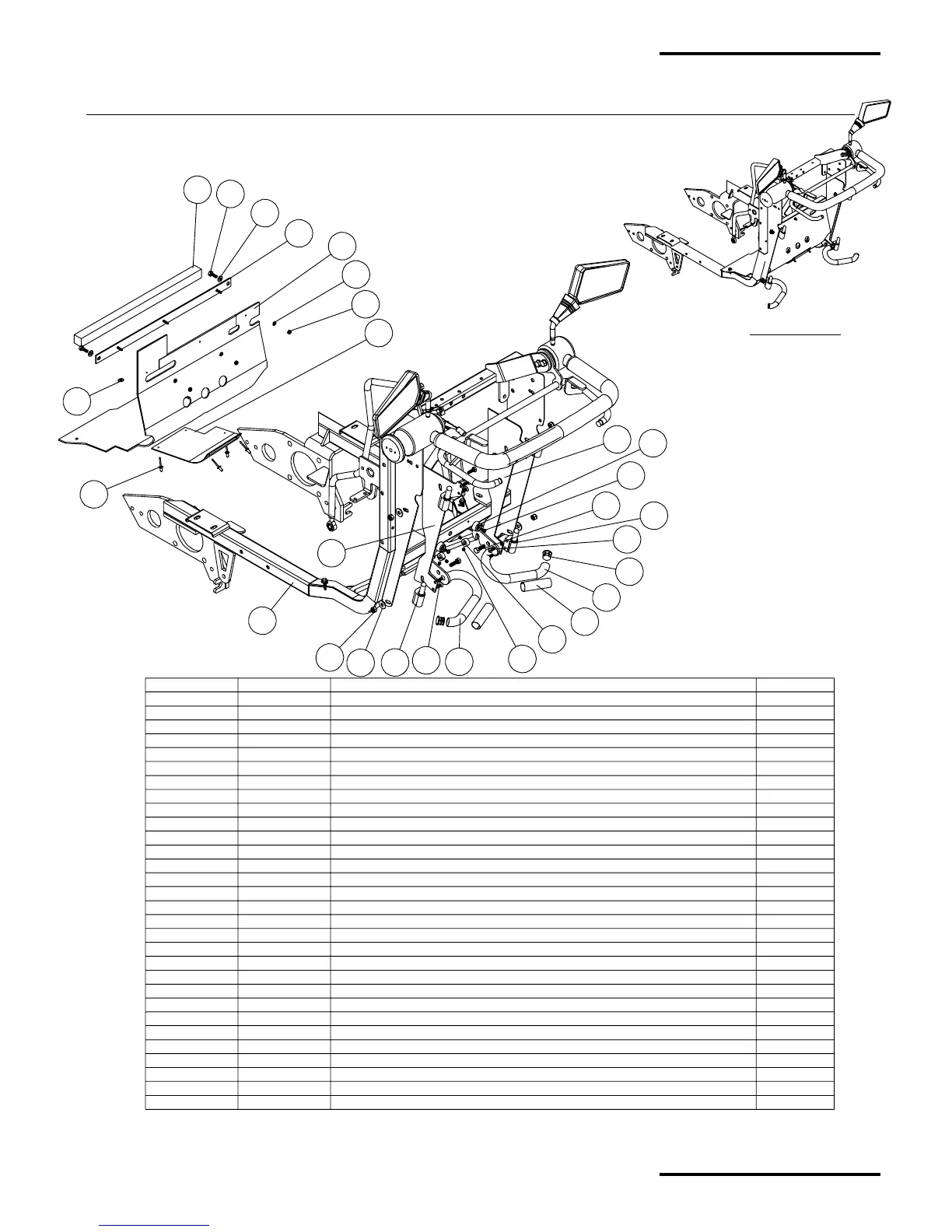

ASSEMBLY VIEW
A67622 - HINGE PLATE ADJUSTABLE & CONTROL PEDALS (OPT
HINGE PLATE ADJUSTABLE, RUBBER SHEILD SUPPORT & OPTIONAL PEDAL ASSEMBLY FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: ---
CO-1
Controls Section
