MADVAC PS300 - Page 156

22
23
2
1
4
8
12
9
11
5
10
3
16
15
6
14
7
13

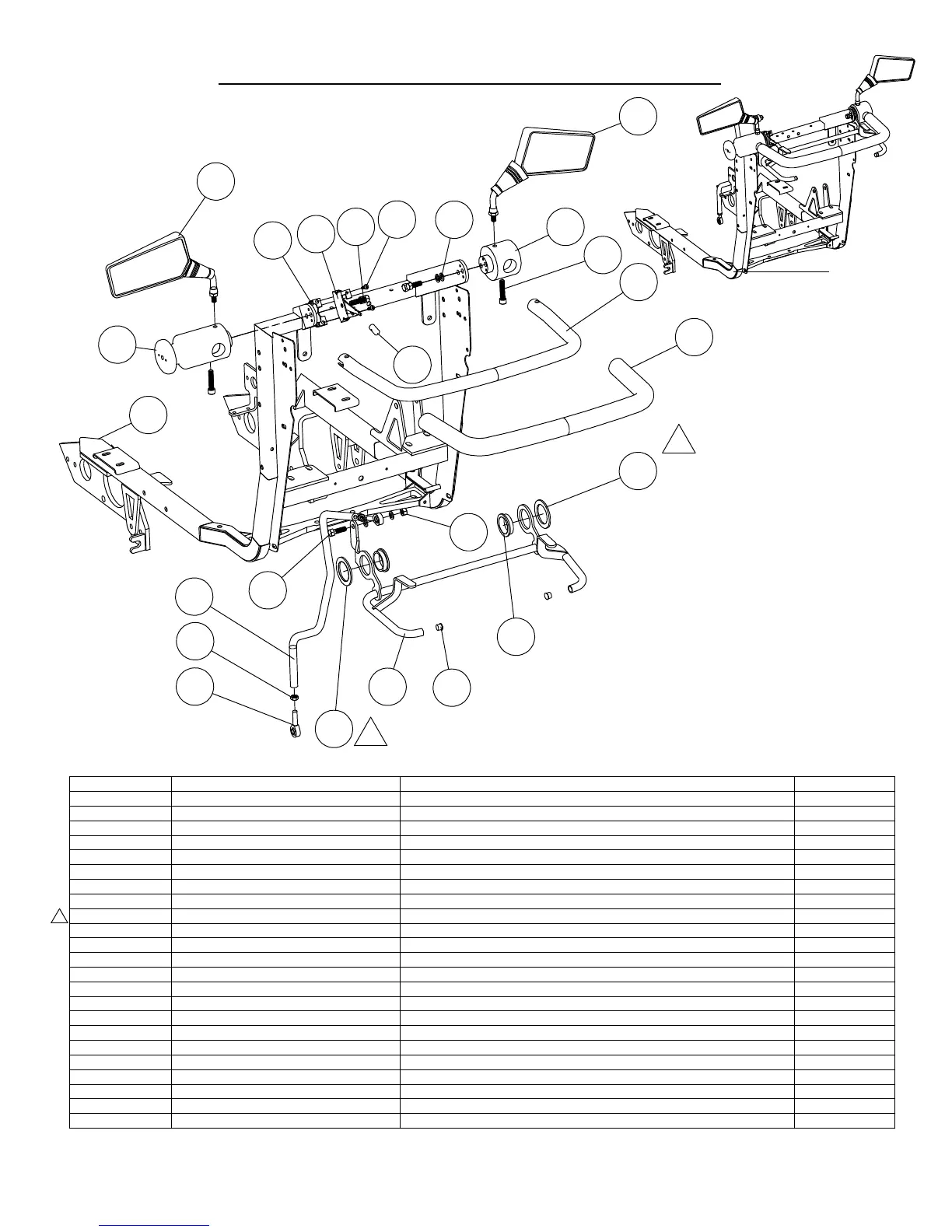

ASSEMBLY VIEW
17
19
18
20
21
NO LONGER USED ON
FACTORY PRODUCTION.
STILL AVAILABLE FOR
REPLACEMENT PART
ON OLDER MACHINES.
A
9
A
A
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 65401 HANDLE FIXATION CYLINDER LEFT 1
2 65312 HANDLE FIXATION CYLINDER RIGHT 1
3 90101 SOCKET HEAD CAP SCREW Ø 3/8" X 24 UNF X 2" Lg. 2
4 65320 HANDLE 1
5 65472 POWER BAR 1
6 90064 HEX BOLT Ø 3/8" - 16 UNC X 1" Lg. 4
7 90065 LOCK WASHER Ø3/8 6
8 65733 FOAM HANDLE BAR 1
9 65769 BRONZE TRUST BEARING 2
10 66364 HOLE PLUG Ø 1/2" 2
11 66627 BUSHING POWER BAR 2
12 (SUB-SECTION OF 65037) FRAME 1
13 65544 THROTTLE CABLE ASSEMBLY 1
14 90029 ROUND HEAD CAP SCREW # 10 - 32 UNC. X 3/4" Lg. 2
15 90104 THREADED INSERT # 10 - 32 UNF 2
16 65402 THROTTLE CABLE HANDLE 1
17 65231 ADJUSTABLE LINK 1
18 65763 ROD END 2
19 90126 NUT HEX. Ø 3/8" - 16 UNC. 2
20 90093 NUT Ø 3/8" - 16 UNC. 1
21 90042 BOLT HEX. HEAD Ø 3/8 " - 16 UNC. X 1-1/4" Lg. 1
22 65796 (KIT INCLUDE BOTH SIDES) RIGHT SIDE MIRROR ASSEMBLY 1
23 65796 (KIT INCLUDE BOTH SIDES) LEFT SIDE MIRROR ASSEMBLY 1
A67610 - TRACTION POWER BAR & THROTTLE CABLE
TRACTION POWER BAR & THROTTLE CABLE FOR ALL SERIAL NUMBER
MadVac Inc.
PS 300 Operator's & Parts Manual
February 2003, Revision: A
