MADVAC PS300 - Page 157

7
6
5
4
5
3
11
2
10
14
8
14
10
1
13
12
15
9
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67668 MOUNTING CYLINDER HANDLE RIGHT 1
2 67669 MOUNTING CYLINDER HANDLE LEFT 1
3 67663 HANDLE WELDMENT 1
4 67664 ISOLATOR RING HANDLE 2
5 9475 BUSHING RUBBER 4
6 90001 WASHER Ø 5/16" 2
7 90058 SOCKET HEAD Ø 5/16" -18 UNC X 1-1/2" . TORQUE:18 lb-ft 2
8 67657 POWER BAR WELDMENT 1
9 66364 HOLE PLUG Ø 1/2" 2
10 90322 HEX SET SCREW 1/4" X 20 X 3/8" lg 2
11 67670 FOAM HANDLE 1
12 67836 SWITCH BOARD 1
13 65518 CONSOL CONTROL PANEL 1
14 66626 BUSHING POWER BAR 2
15 (SUB-SECTION OF 65037) FRAME 1

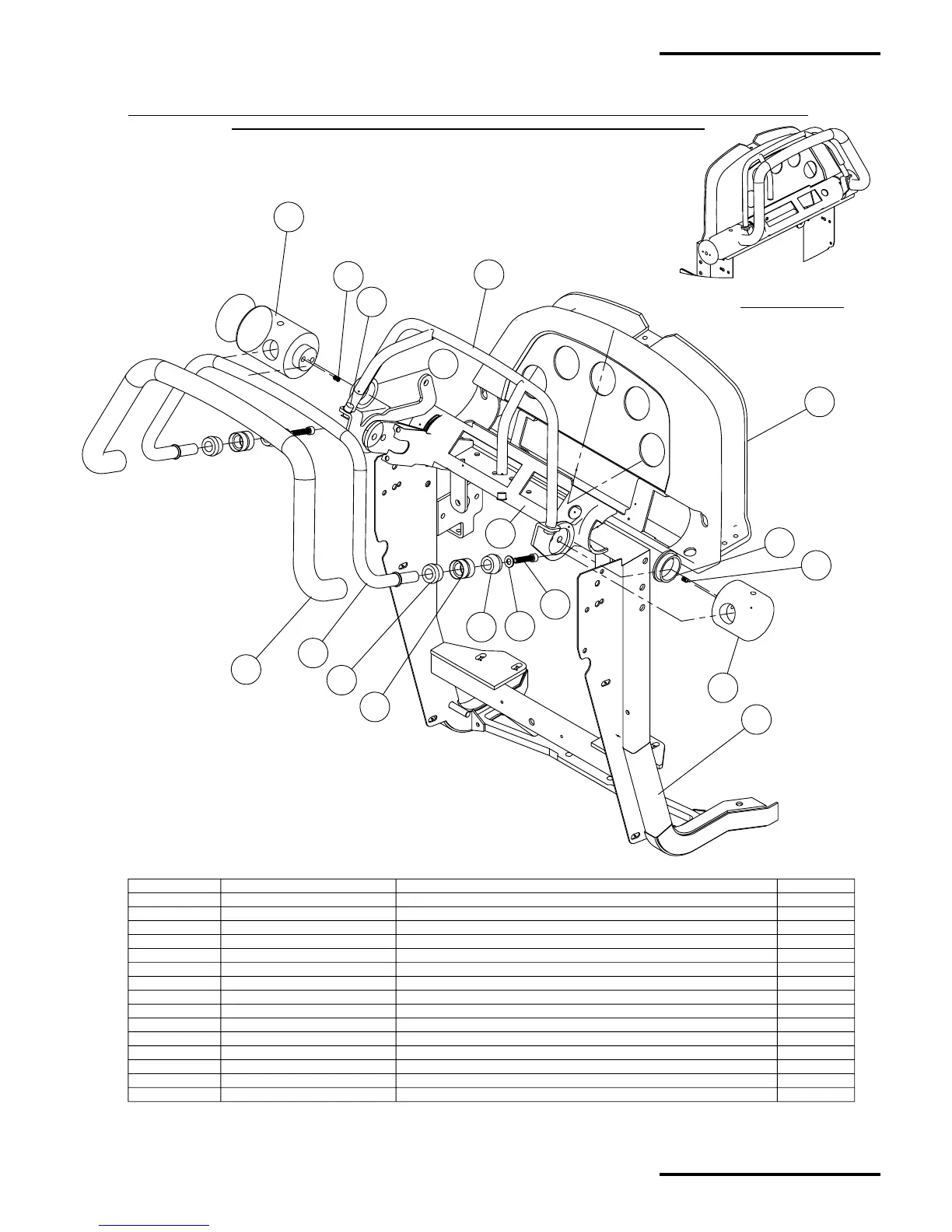

ASSEMBLY VIEW
A67656 - POWER BAR FOR DELUXE SEAT OPTION (K67020 OPTION)
POWER BAR MODIFICATION FROM STANDARD PS300 EQUIPPED WITH DELUXE SEAT OPTION k67020
REFER TO DRAWING A67590 - CONTROLS, FOR MISSING COPONENTS
MadVac Inc.
PS300 Operator's & Parts Manual
January 2003, Revision: ---
CO-3
Controls Section
