MADVAC PS300 - Page 85

1
3
8
9
10
7
2
6
4
5

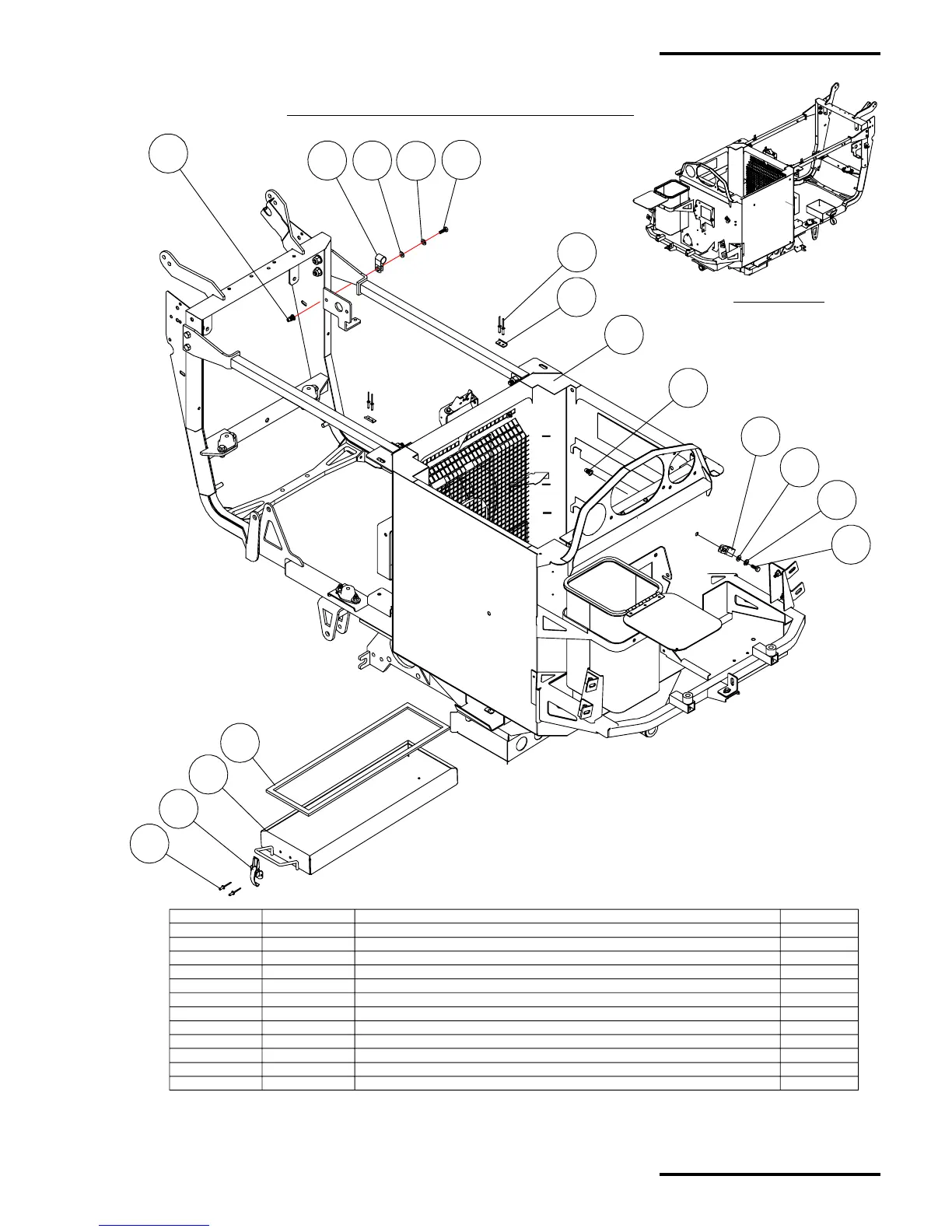

ASSEMBLY VIEW
7
3 8 9
10
12
11
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67549 FRAME ASSEMBLY 1
2 66003 DUST BUCKET SEAL 1
3 67019 CLAMP -CL 13 2
4 7499 LEVER LOCK WITH FLAT BASE 1
5 90074 POP RIVET Ø 3/16 X 3/8" lg 2
6 65314 DUST BUCKET 1
7 90147 RIV NUT 1/4 - 20 UNC 2
8 90004 WASHER Ø 1/4" 2
9 90018 LOCK WASHER Ø 1/4" 2
10 90021 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 3/4" Lg. 2
11 66067 HINGE PANEL KEEPER PLATE 2
12 66462 POP-RIVET 4
A67619 - DUST BUCKET
DUST BUCKET & LATCH FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: ---
VA-8
