MADVAC PS300 - Page 86

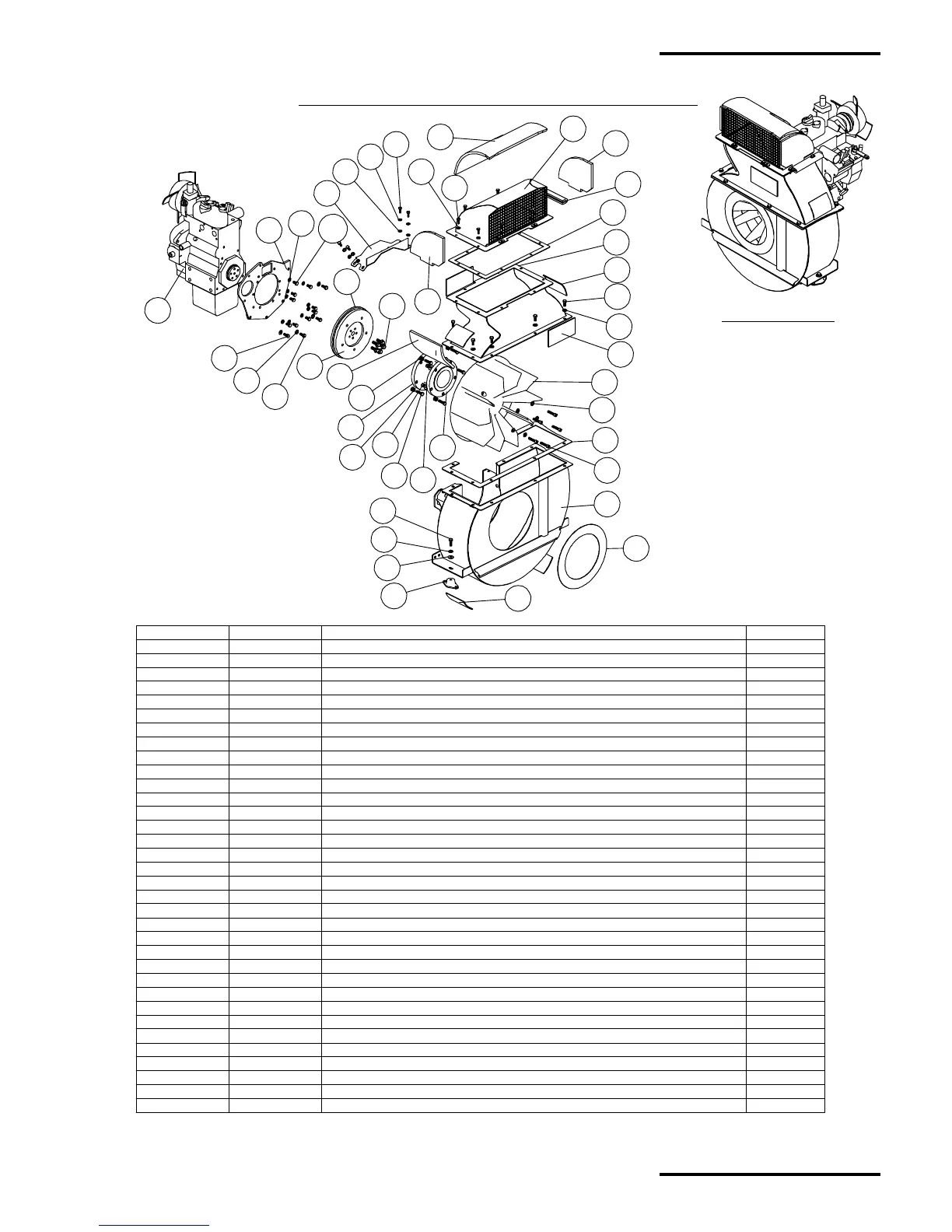

ASSEMBLY VIEW
16
6
7
2
19
11
18
17
20
1
14
12
7
3
5
7
6
15
4
8
9
21
13
28
26
7
20
25
24
2
31
6
27
31
32
10
23
10
18
29
8
9
22
30
33
34
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 65150 LOWER VOLUTE 1
2 66232 FLYWHEEL (REPLACEMENT KUBOTA PART) 1
3 65131 FAN CASTING 1
4 65357 OUTLET DUCT 1
5 65414 UPPER VOLUTE 1
6 90022 BOLT HEX. HEAD Ø 5/16" - 18 UNC. X 3/4" Lg. 12
7 90023 LOCK WASHER Ø 5/16" 19
8 90021 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 3/4" Lg. 12
9 90018 LOCK WASHER Ø 1/4" 12
10 90752 LOCK WASHER Ø M8 14
11 66630 BOLT HEX HEAD Ø M8 X 1.25 X 30mm lg.TORQUE:24 lb-ft 5
12 66635 SOCKET HEAD Ø 5/16" -18 UNC X 1-1/2" . TORQUE:18 lb-ft 5
13 65754 KUBOTA ENGINE DIESEL 1
14 65828 LOWER VOLUTE SEAL 1
15 65827 UPPER VOLUTE SEAL 1
16 65455 ENGINE PLATE 1
17 90000 LOCK NUT Ø 5/16" - 18 UNC. 5
18 66631 FAN ADAPTER 1
19 90062 BOLT HEX HEAD FLANGE Ø M10 - 1.25 X 25 mm. Lg. 5
20 90001 WASHER Ø 5/16" 7
21 65215 BELL HOUSING COVER 1
22 90004 WASHER Ø 1/4" 4
23 90707 BOLT HEX. HEAD Ø M8 - 1.25 X 16 mm. Lg. 9
24 65681 VOLUTE SEAL 1
25 65751 ENGINE RUBBER MOUNT 2
26 90075 HEX BOLT Ø 5/16" - 18 UNC X 1" Lg. 2
27 66287 OUTLET DUCK TOP NOISE BARRIER 1
28 66288 OUTLET DUCK SIDE NOISE BARRIER 1
29 66380 OUTLET DUCK SIDE NOISE BARRIER 1
30 66281 UPPER VOLUTE CUT-OFF NOISE BARRIER 1
31 66321 ANTI-VIBRATION PAD # 7 4
32 90757 WASHER Ø M8 5
33 66318 ANTI-VIBRATING PAD # 4 2
34 66429 TRIM OUTLET DUCT FLANGE 1
A67548 - FAN CASING
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: ---
FAN CASING & KUBOTA ENGINE FOR ALL SERIAL NUMBERS
VA-9
Vacuum Section
