MADVAC PS300 - Page 87

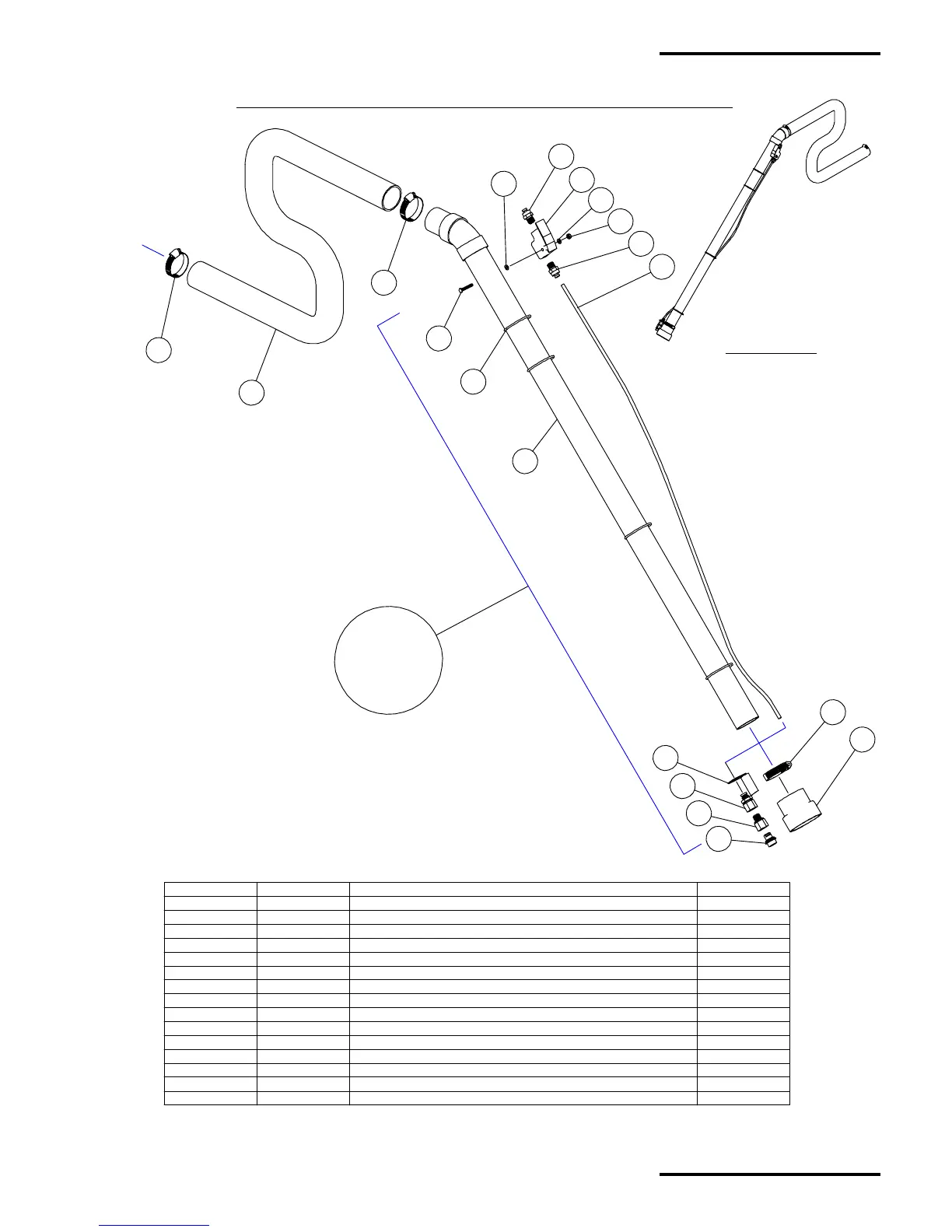

ASSEMBLY VIEW
To D.E.A. vacuum
inlet pipe
6
15
6
1
10
12
8
11
9
9
7
8
13
6
2
3
14
4
5
66887
REPLACEMENT
HOSE
FACTORY
PRE-ASSEMBLED
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 66934 RIGID HOSE ASSEMBLY 1
2 66909 RUBBER INLET ADAPTOR P10-4089 1
3 66855 NOZZLE ANGLE 1
4 66912 JET CORPS 1/4 QPP 1
5 66913 PRO-MAX JET 1/4 NPT QPH-2.8W 1
6 9554 HOSE CLAMP Ø 2" 3
7 66916 WATER VALVE PARKER 1
8 66915 QUICK-CONNECT 1/4-1/4 NPT MALE 2
9 90005 WASHER # 10 2
10 90080 BOLT HEX. HEAD # 10 - 32 UNC. X 5/8" Lg. 1
11 90006 LOCK NUT # 10 - 32 UNF 1
12 66919 O RING 4
13 66979 WHITE WATER HOSE 1/4 1
14 66910 PANEL MOUNT FITTING 1
15 66918 VACCUM HOSE 1
A66925 - D.E.A. OPTION - WANDER HOSE
D.E.A.OPTION WANDER HOSE AND JET SPRAY FOR ALL SERIAL NUMBERS
MadVac Inc.
PS 300 Operator's & Parts Manual
September 2001, Revision: ---
VA-10
Vacuum Section
