MADVAC PS300 - Page 92

5
3
6
2
4
9
12
14
13
1
7
10
11
8
15
APPLY NON-REMOVABLE
THREAD LOCKER ON ALL
FASTENERS
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67407 BASKET FRAME ASSEMBLY 1
2 (SEE DRAWING A67775) LINKAGES SUB-ASSEMBLY 1
3 67727 ROTATION ARM RIGHT 1
4 67750 ROTATION ARM LEFT 1
5 67739 FLANGE BUSHING 8
6 90423 SHOULDER SCREW 3/8 X 1-1/4 (5/16-18) 4
7 67725 ROTATION LINK RIGHT 1
8 65758 BRONZE FLANGE BUSHING Ø 1/2" I.D. X Ø 5/8" O.D. X 3/4" Lg. 4
9 67726 ROTATION LINK LEFT 1
10 90022 BOLT HEX. HEAD Ø 5/16" - 18 UNC. X 3/4" Lg. 2
11 90023 LOCK WASHER Ø 5/16" 2
12 67410 HINGE AXIS 1
13 (SEE DRAWING A67774) LOWER LINKAGES SUB-ASSEMBLY 1
14 67719 PIVOT 2
15 90413 MACHINE SCREW FLAT Ø 10-32 X 1/2" lg 2

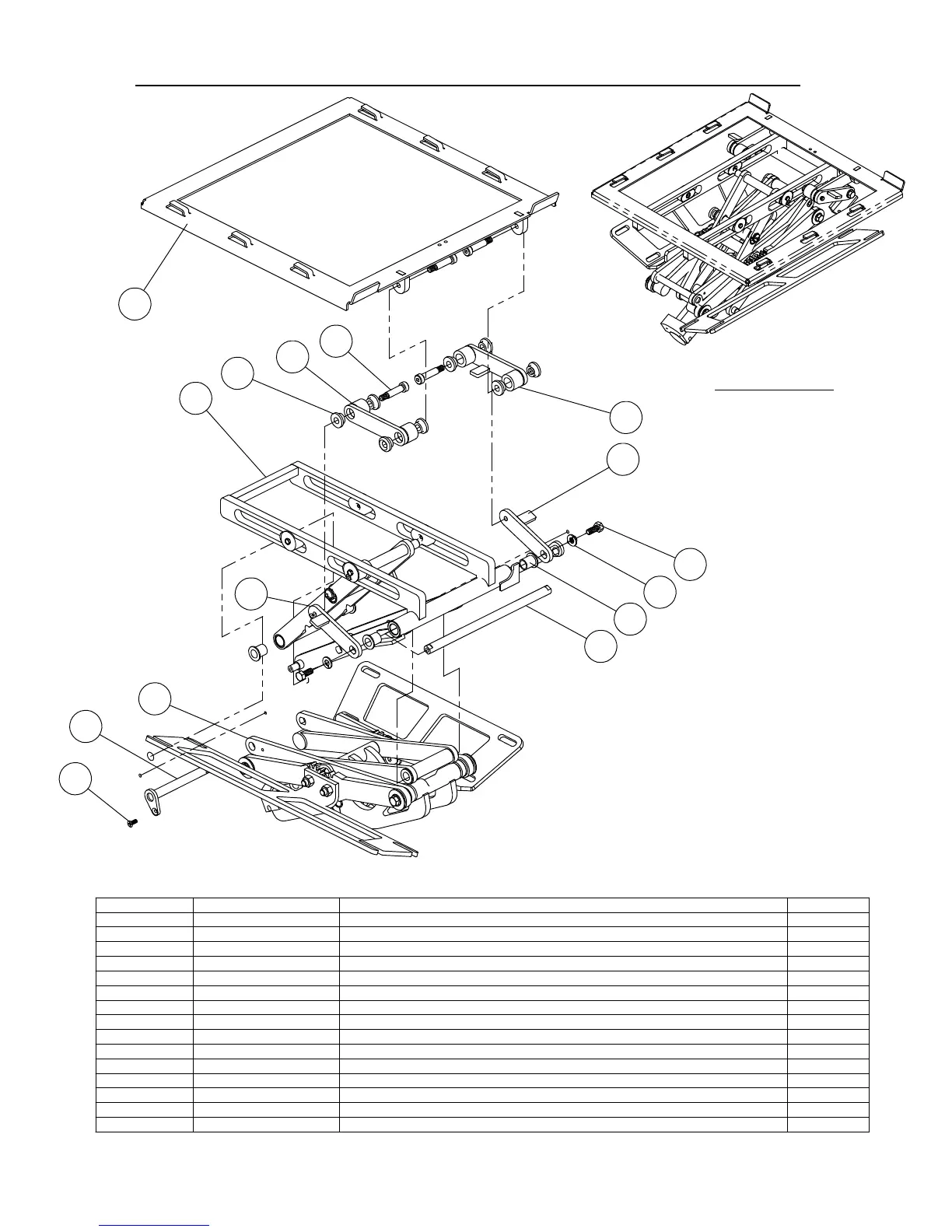

ASSEMBLY VIEW
A67776 - MECHANICAL COMPONENTS ASSEMBLY (OPTION K673677)
MECHANICAL COMPONENTS ASSEMBLY FOR PS300 OPTION K67377 - HYDRAULIC SIDE DUMP
MadVac Inc.
PS300 Operator's & Parts Manual
September 2002, Revision: ---
