MADVAC PS300 - Page 93

5
3
4
7
8
2
8
10
1
6
11
9
REAM
A
A
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67401 CARRIAGE ASSEMBLY 1
2 67568 INTERIOR TOP LEVER ASSEMBLY 1
3 90496 FENDER WASHER Ø 9/32" 4
4 67572 SKATE 4
5 90070 BOLT HEX HEAD # 10 - 32 UNF X 1/2" Lg. 4
6 67570 EXTERIOR TOP LEVER ASSEMBLY 1
7 67719 PIVOT 1
8 65758 BRONZE FLANGE BUSHING Ø 1/2" I.D. X Ø 5/8" O.D. X 3/4" Lg. 2
9 90898 ROUND HEAD CAP SCREW Ø 5/16" - 18 UNC. X 3/4" Lg. 1
10 90023 LOCK WASHER Ø 5/16" 1
11 90413 MACHINE SCREW FLAT Ø 10-32 X 1/2" lg 1

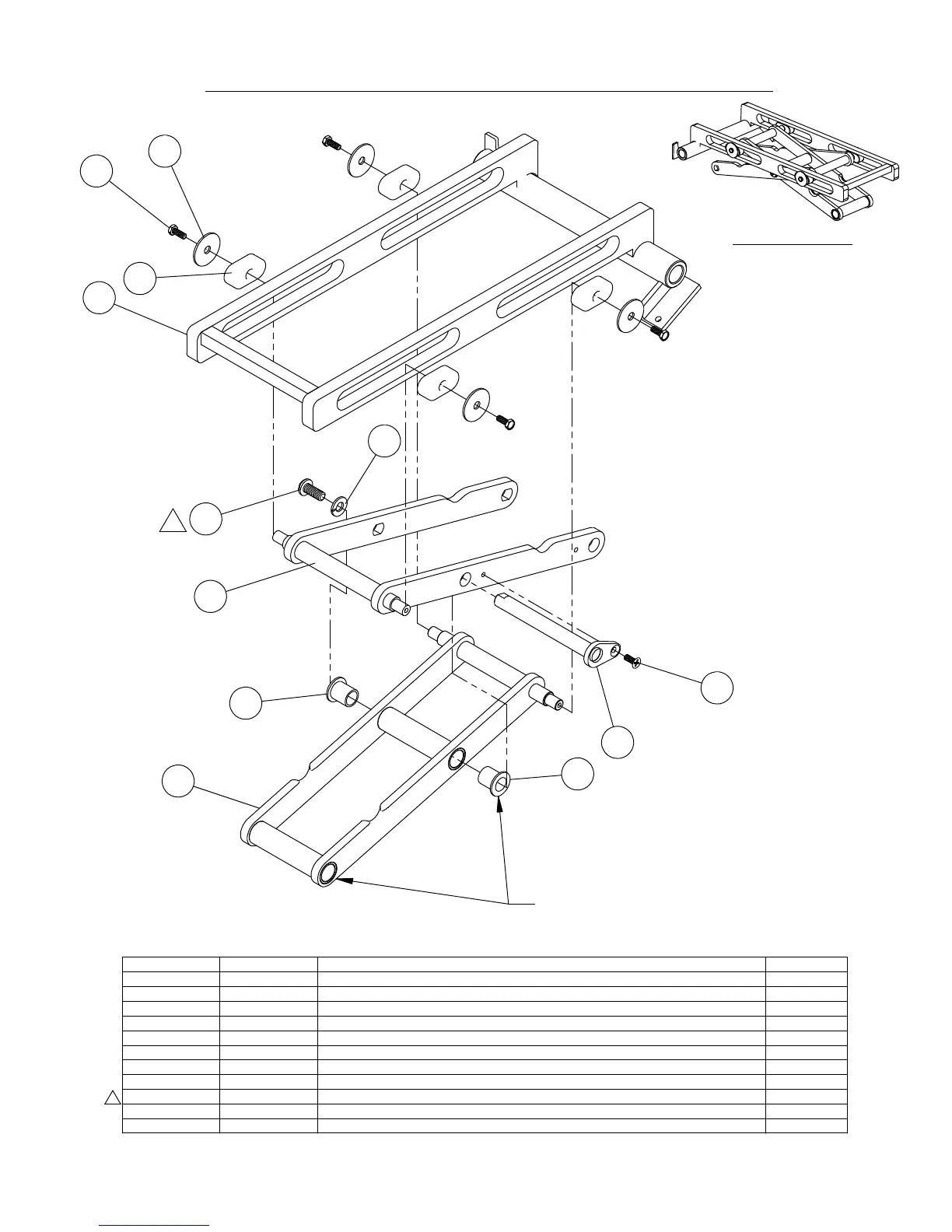

ASSEMBLY VIEW
A67775 - LINKAGES SUB-ASSEMBLY (OPTION K67377)
LINKAGES SUB ASSEMBLY FOR PS300 OPTION K67377 - HYDRAULIC SIDE DUMP
MadVac Inc.
PS300 Operator's & Parts Manual
January 2003, Revision: A
