MADVAC PS300 - Page 94

1
2
3
7
6
5
4
8
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 (SEE DRAWING A67773) CYLINDER ARM LEVER SUB-ASSEMBLY 1
2 (SEE DRAWING A67771) RIGHT BASE PLATE SUB-ASSEMBLY 1
3 (SEE DRAWING A67772) LEFT BASE PLATE SUB-ASSEMBLY 1
4 65767 FLAT BRONZE BUSHING 8
5 90487 STEEL FENDER WASHER Ø 1/4" 4
6 90023 LOCK WASHER Ø 5/16" 4
7 90022 BOLT HEX. HEAD Ø 5/16" - 18 UNC. X 3/4" Lg. 4
8 67543 SLEEVE BEARING 4

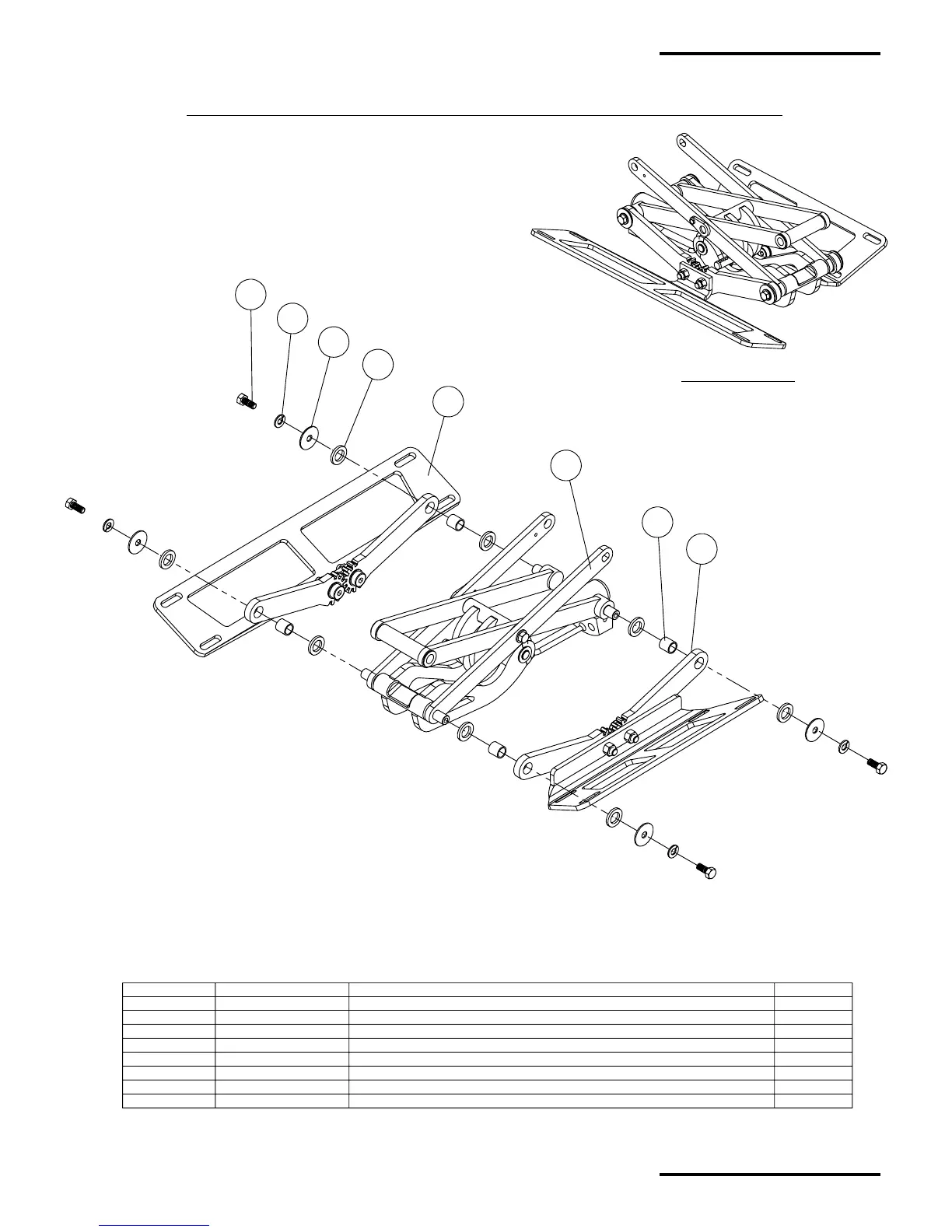

ASSEMBLY VIEW
A67774 - LOWER LINKAGES SUB-ASSEMBLY (OPTION K67377)
LOWER LINKAGES SUB-ASSEMBLY FOR PS300 OPTION K67377 - HYDRAULIC SIDE DUMP
MadVac Inc.
PS300 Operator's & Parts Manual
September 2002, Revision: ---
VA-17
Vacuum Section
