MADVAC PS300 - Page 95

5
6
2
3
1
4
APPLY NON-REMOVABLE
THREAD LOCKING SEALANT
(LOCKTITE # 262 "RED" OR EQUIVALENT)
ON ALL FASTENERS
7
A
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67378 MOUNTING PLATE FRONT 1
2 67383 STABILIZING ARM LEFT 1
3 67382 STABILIZING ARM RIGHT 1
4 90093 NUT Ø 3/8" - 16 UNC. 2
5 67546 SHOULDER SCREW 1/2" X 5/8"LG. 2
6 67713 FLANGED TYPE 2
7 68101 THRUST BEARING 2

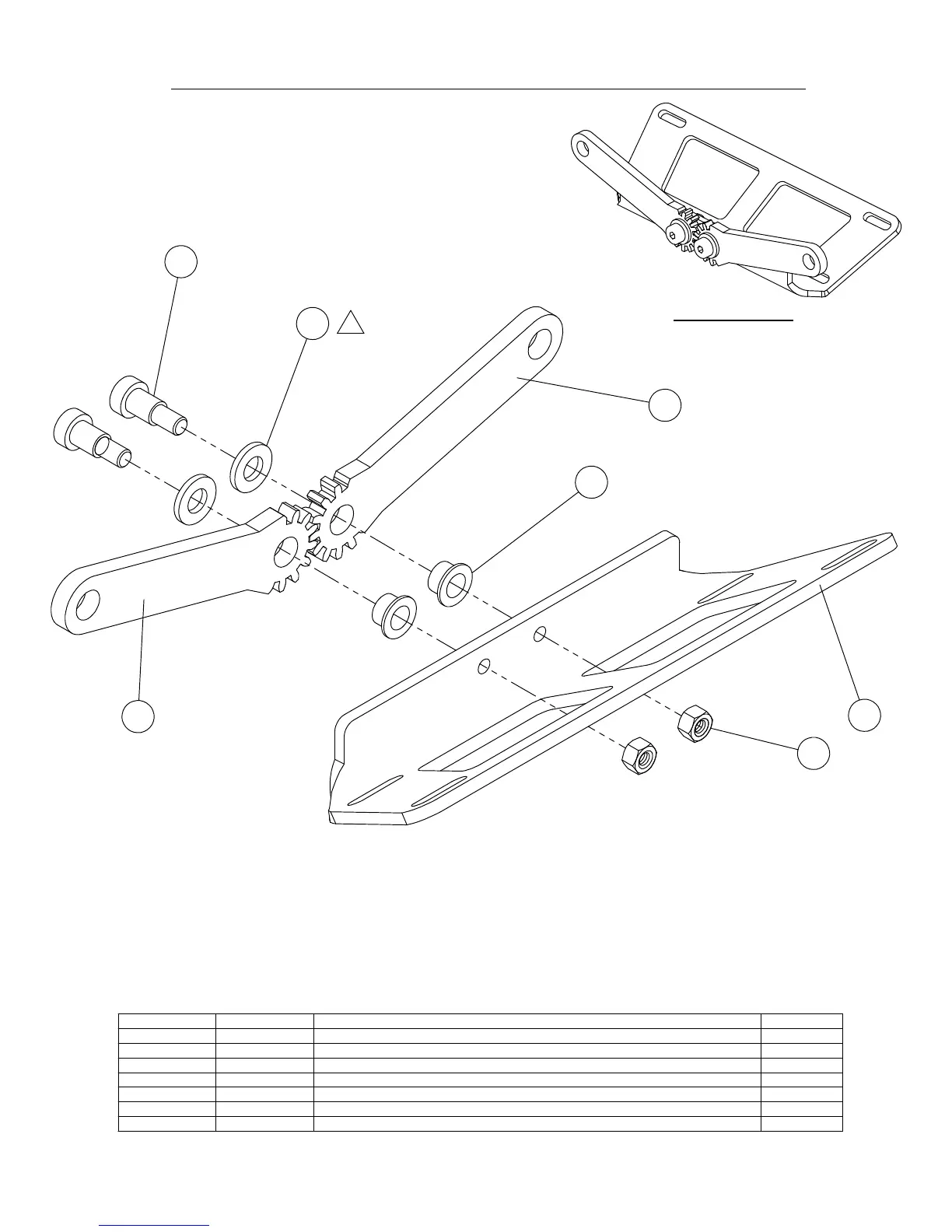

ASSEMBLY VIEW
A67771 - RIGHT BASE PLATE SUB-ASSEMBLY (OPTION K67377)
RIGHT BASE PLATE SUB-ASSEMBLY FOR PS300 OPTION K67377 - HYDRAULIC SIDE DUMP
MadVac Inc.
PS300 Operator's & Parts Manual
September 2002, Revision: A
