MADVAC PS300 - Page 96

4
6
3
2
1
5
APPLY NON-REMOVABLE
THREAD LOCKING SEALANT
(LOCKTITE # 272 OR EQUIVALENT)
ON ALL FASTENERS
7
A
A
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67379 MOUNTING PLATE REAR 1
2 67383 STABILIZING ARM LEFT 1
3 67382 STABILIZING ARM RIGHT 1
4 67546 SHOULDER SCREW 1/2" X 5/8"LG. 2
5 90093 NUT Ø 3/8" - 16 UNC. 2
6 67713 FLANGED TYPE 2
7 68101 THRUST BEARING 2

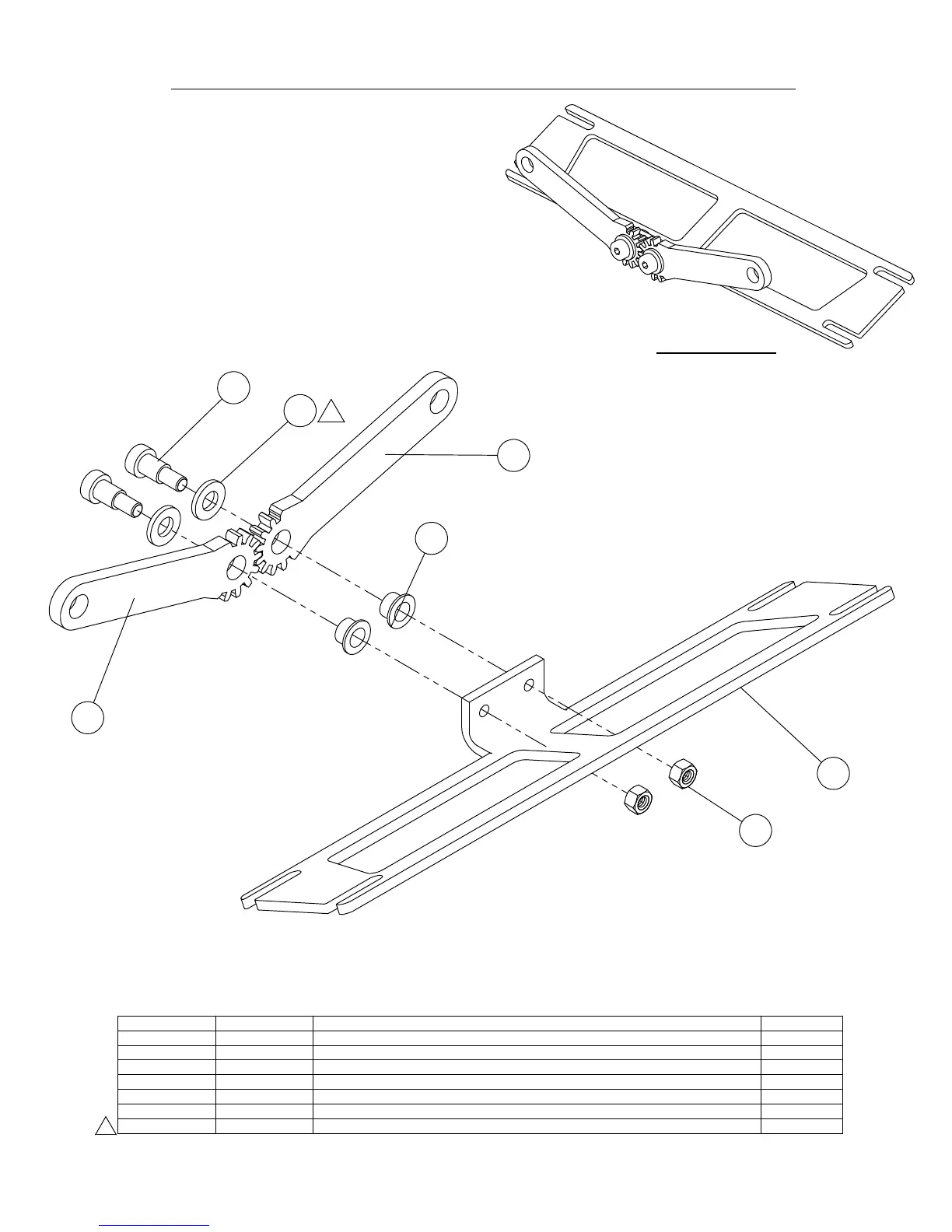

ASSEMBLY VIEW
A67772 - LEFT BASE PLATE SUB-ASSEMBLY (OPTION K67377)
LEFT BASE PLATE SUB-ASSEMBLY FOR PS300 OPTION K67377 - HYDRAULIC SIDE DUMP
MadVac Inc.
PS300 Operator's & Parts Manual
August 2003, Revision: A
