MADVAC PS300 - Page 98

4
3
2
1
5
6
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 67548 FAN CASING & ENGINE ASSEMBLY 1
2 67810 SUPPORT PLATE, RIGHT 1
3 67809 SUPPORT PLATE, LEFT 1
4 67808 SHUTTER 1
5 90018 LOCK WASHER Ø 1/4" 4
6 90021 BOLT HEX. HEAD Ø 1/4" - 20 UNC. X 3/4" Lg. 4

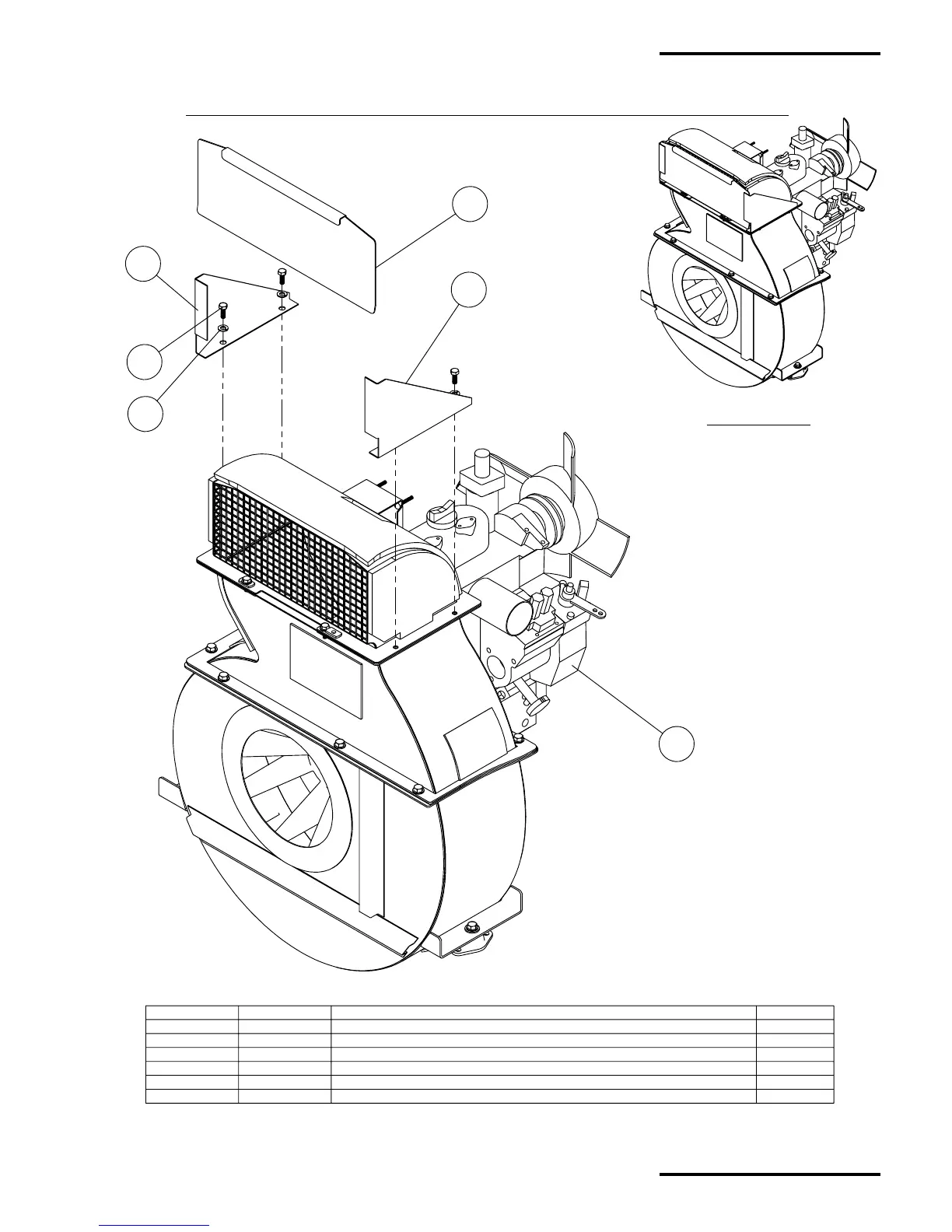

ASSEMBLY VIEW
A67815-MANUAL SHUTTER FOR HYDRAULIC SIDE DUMP (OPTION K67377)
MANUAL SHUTTER FOR PS300 EQUIPPED WITH HYDRAULIC SIDE DUMP (OPTION K67377)
MadVac Inc.
PS300 Operator's & Parts Manual
November 2002, Revision: ---
VA-21
Vacuum Section
