Chapter 13
Analog Input triggered AT command
Note: Available only on M100 2G !
This feature uses the Analog Input port as a trigger to execute an AT command when the specified condition is met.

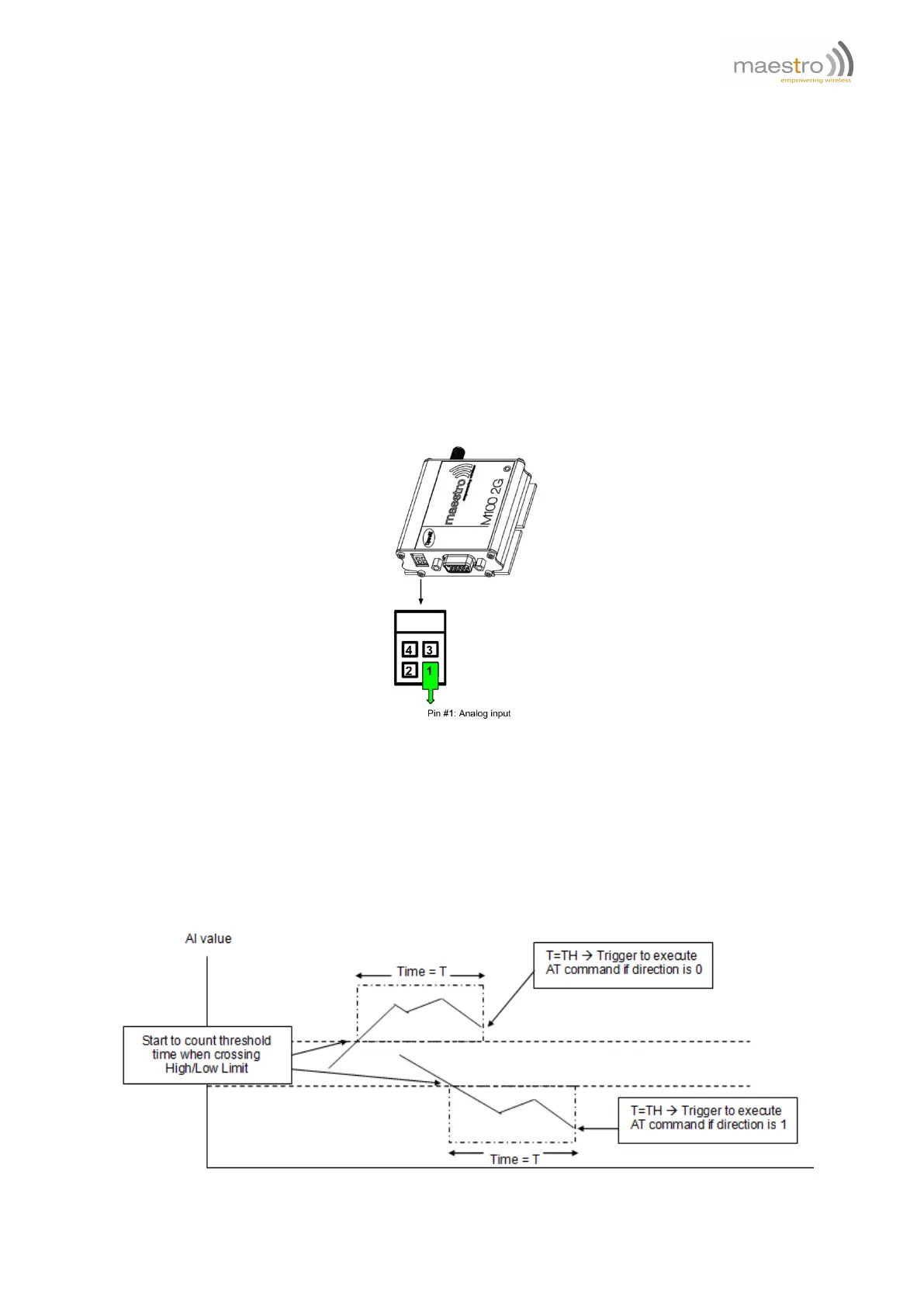

13.1 Description of the operation
1. Connect an external analog voltage of maximum 5V.
2. Every 100ms the analog value is checked, it will trigger if:
(a) it exceeds high limit (low-to-high trigger)
(b) it goes below low limit (high-to-low trigger)
3. The specified AT command will be executed.
Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd.
