Magnetek Impulse G+ series 4 User Manual

IMPULSE®•G+ & VG+ Series 4 Instruction Manual – February 2017
5-31
NOTE: C06-11 through C06-16 are hidden unless C06-10 is set to “Custom”. Otherwise, C06-11
through C06-14 are automatically modified by C06-10.
C06-05 SL REV Current (V/f)
SL REV Torque (OLV)
UL REV Torque (FLV)
Output Current/Torque < C06-
05 to enable Swift-Lift
Reverse. Not used with
Adaptive UL.
0–100% 30 G+/VG+
C06-06 SL Enabling Spd (V/f and
OLV)
UL Enabling Spd (FLV)
Fout > C06-06 to Enable Swift-
Lift. (Threshold Speed)
0.1–150.0 Hz 59.0 G+/VG+
C06-07 SL Delay Time (V/f and
OLV)
UL Delay Time (FLV)
Delay time at Enabling speed
to check Output Torque
0.0–25.5 sec 2.0 G+/VG+
C06-08 SFS Acc Gain Swift-Lift acceleration multiplier
for V/f Modes. Settings greater
than 1 increase the
acceleration time
proportionately; settings less
than 1 decrease the
acceleration time
proportionately
0.1–9.9 1.0 G+

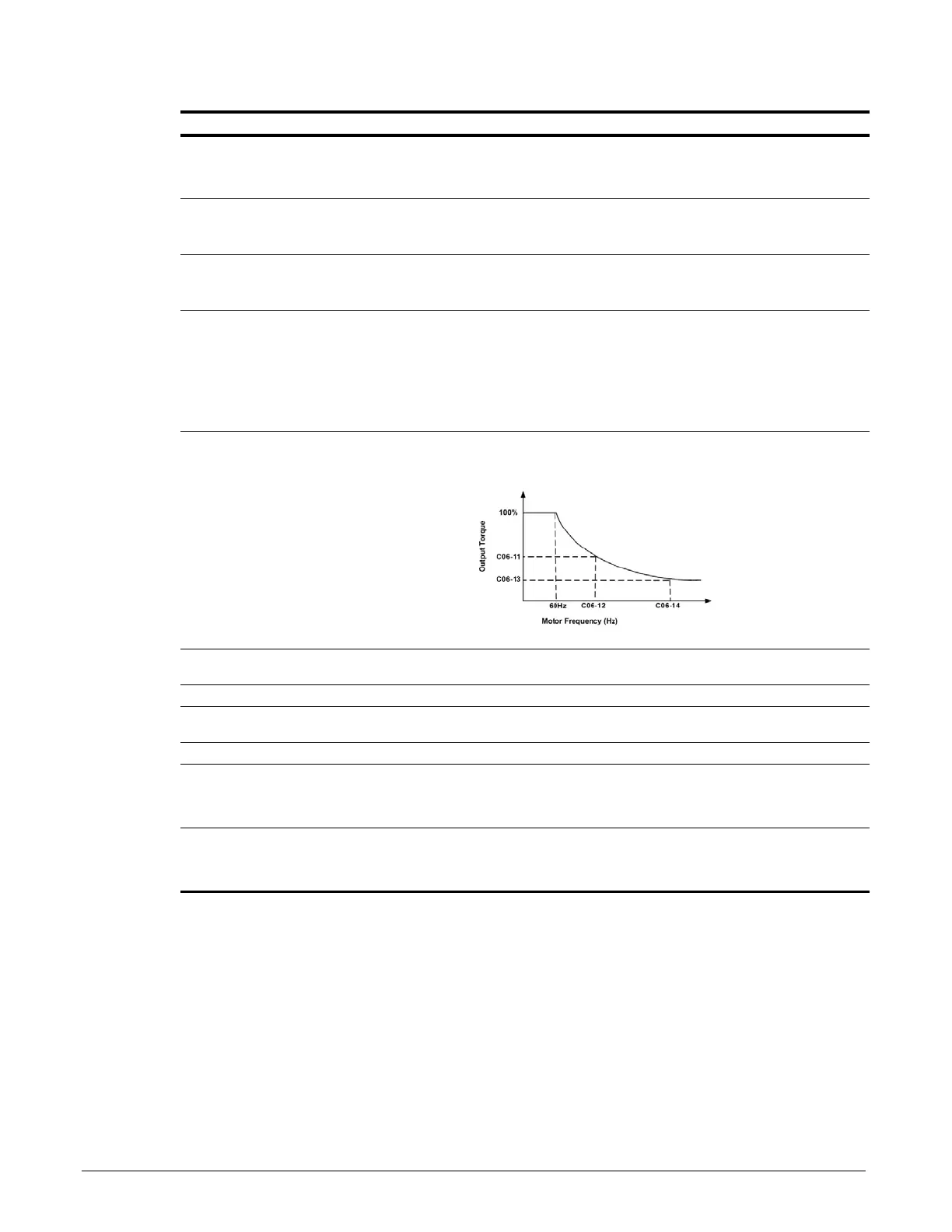

C06-10 Mtr Trq Quickset Set available motor torque
over base speed.
0–5 3 VG+
0Custom
1 Very Low Torque
2 Low Torque
3 Standard
4 High Torque
5 Very High Torque
C06-11 Motor Torque 1 Sets the available torque at
Speed 1 (above base speed)
1–100% 45 VG+
C06-12 Motor Speed 1 Sets the Speed 1 point 100–300% 150 VG+
C06-13 Motor Torque 2 Sets the available torque at
Speed 2 (above base speed)
1–100% 25 VG+
C06-14 Motor Speed 2 Sets the Speed 2 point 100–300% 200 VG+
C06-15 AUL FWD Offset Adaptive UL torque
measurement offset in the up
direction to allow for
deceleration.
0–100% 10 VG+
C06-16 AUL REV Offset Adaptive UL torque
measurement offset in the
down direction to allow for
deceleration
0–100% 20 VG+
Parameter Display Function Range Default Model
