Terminal Block Configuration

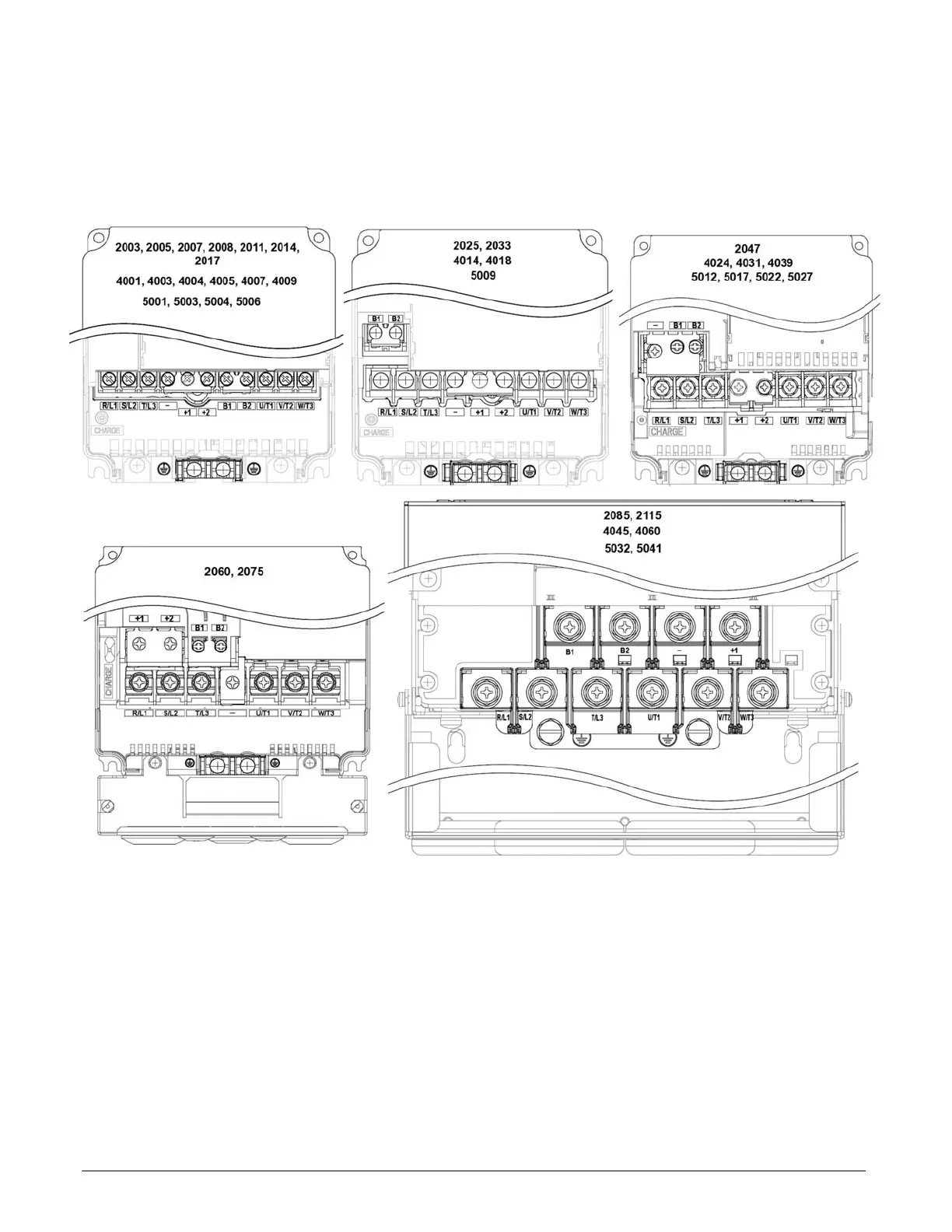

Figure 3-7 and Figure 3-8 show the different main circuit terminal arrangements for the drive
capacities.
Figure 3-7: Main Circuit Terminal Block Configuration
