IMPULSE®•G+ & VG+ Series 4 Instruction Manual - February 2017

3-10

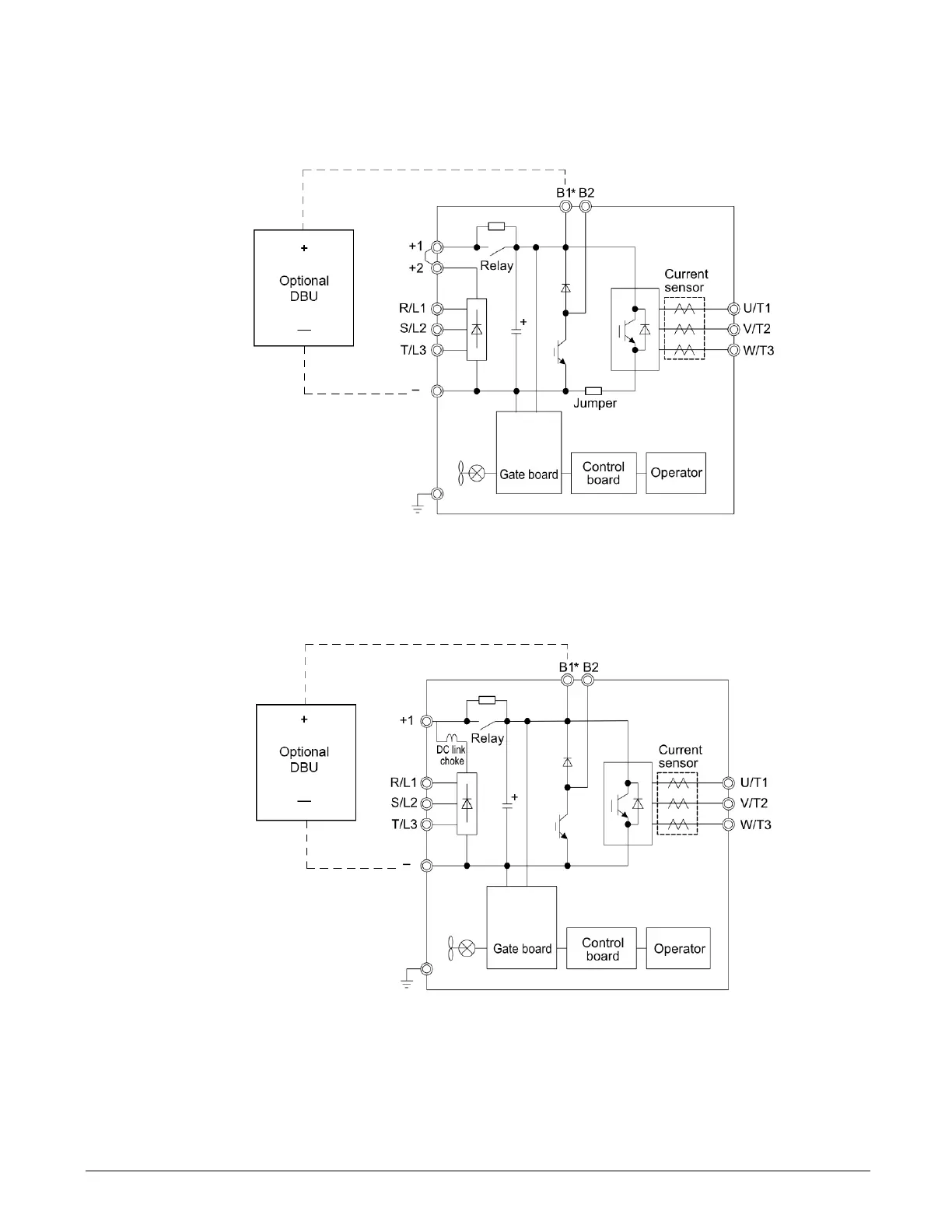

Main Circuit Connection Diagram

Figure 3-2: Connecting Main Circuit Terminals

(2003 to 2075)

(4001 to 4039)

(5001 to 5027)

Figure 3-3: Connecting Main Circuit Terminals

(2085 and 2115)

(4045 and 4060)

(5032 and 5041)

* Connect optional DBU to terminals B1 and –
