Acceleration/Deceleration
Acceleration time sets the time necessary for the output frequency to accelerate from 0 Hz to
maximum output frequency (E01-04). Deceleration time sets the time necessary for the output
frequency to decelerate from the maximum output frequency (E01-04) to 0 Hz.
Table 5-10: Acceleration/Deceleration Parameter Settings

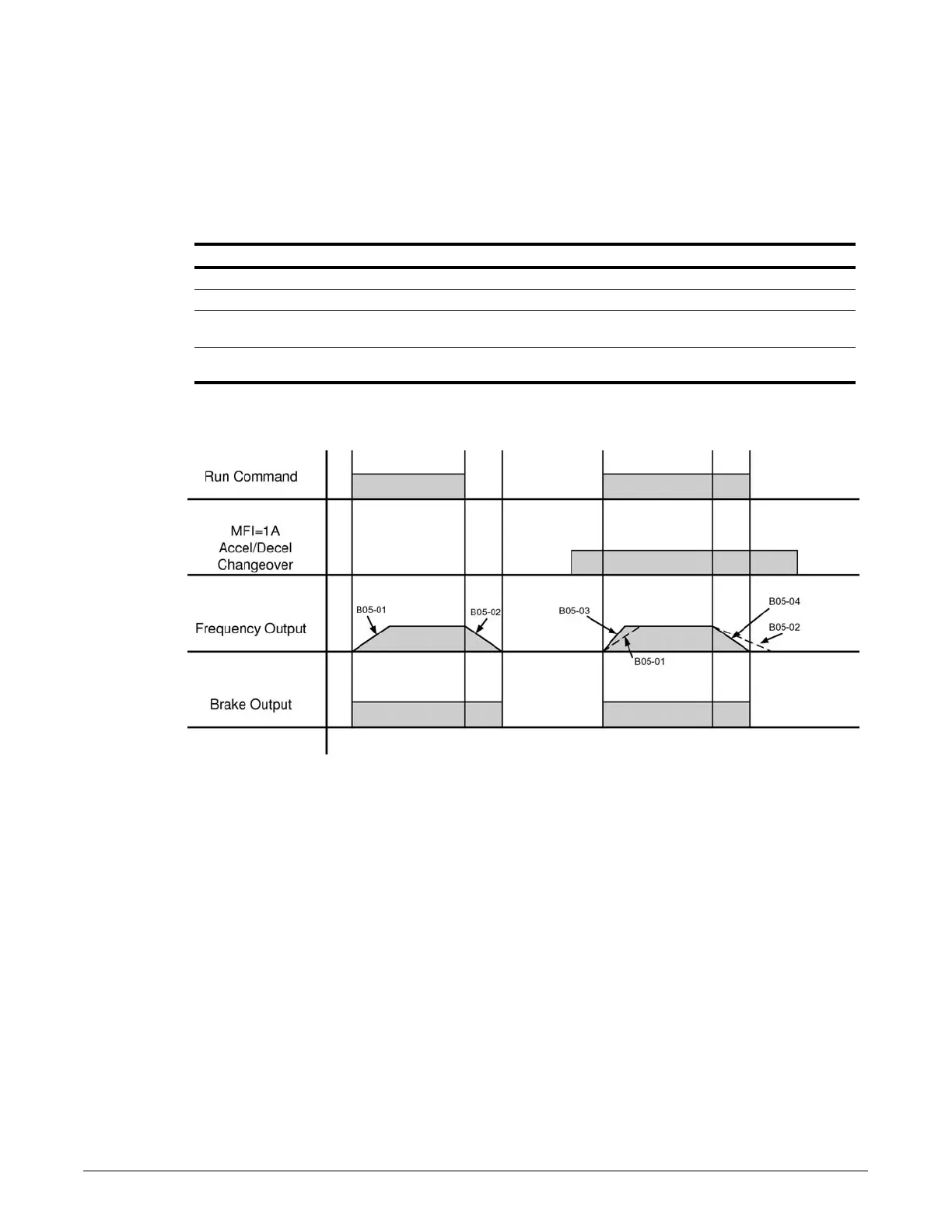

Figure 5-5: Normal Accel/Decel Time and Multiple Accel/Decel Changeover
NOTE: Assume the constant B03-03 is set to “0” (Decel to Stop).
Parameter Display Function Range Default
B05-01 Accel Time 1 Sets acceleration time. 0.0–25.5 sec** 5.0*
B05-02 Decel Time 1 Sets deceleration time. 0.0–25.5 sec** 3.0*
B05-03 Accel Time 2 Acceleration time 2 enabled when
H01-xx = 1A.
0.0–25.5 sec** 10.0
B05-04 Decel Time 2 Deceleration time 2 enabled when
H01-xx = 1A.
0.0–25.5 sec** 10.0
* Initial value is determined by X-Press Programming (Table 4-6, 4-7, or 4-8 on pages 4-12, 4-13, and 4-14).
** Range is extended to 0.0–6000.00 when B05-16 = 1.
