IMPULSE®•G+ & VG+ Series 4 Instruction Manual - February 2017
2-9
Multiple Drive Installation (Side-by-Side Installation)
Models 2003 to 2075, 4001 to 4039, and 5001 to 5027 can take advantage of Side-by-Side
installation.
When mounting drives with the minimum clearing of 0.08 inches (2 mm) according to Figure 2-4, set
parameter L08-35 to 1 while considering derating.
A – 1.97 in (50 mm) minimum C – 0.08 in (2 mm) minimum
B – 1.18 in (30 mm) minimum D – 4.73 in (120 mm) minimum

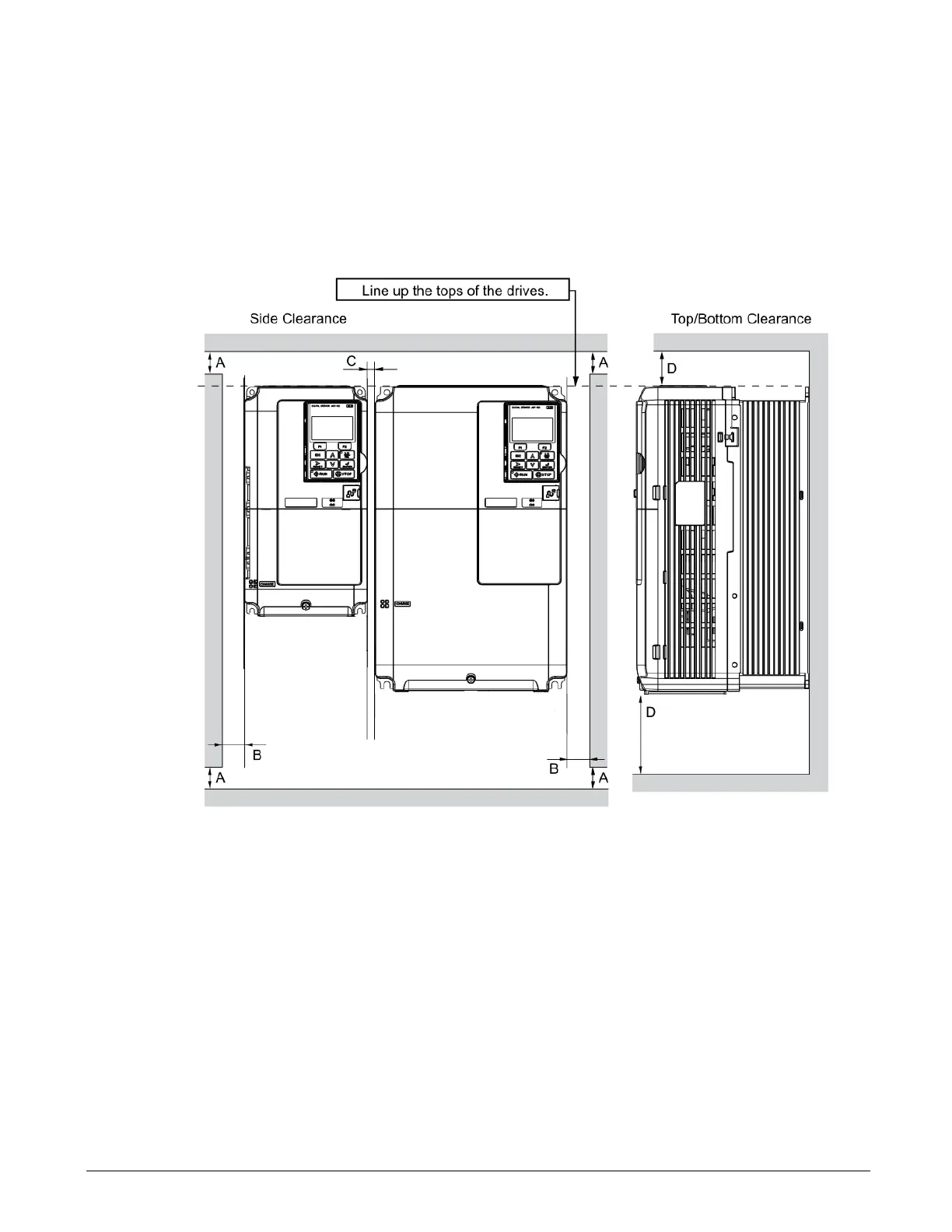

Figure 2-4: Space Between Drives (Side-by-Side Mounting)
NOTE: Align the tops of the drives when installing drives of different heights in the same
enclosure panel. Leave space between the tops and bottoms of stacked drives for easier
cooling fan replacement.
