IMPULSE®•G+ & VG+ Series 4 Instruction Manual – February 2017
5-51
Inching Control
Inching Control Function can be enabled by programming H01-01–08 = 17, 18, and 19, respectively.
The frequency reference used during inching is determined by B01-17 (Jog Reference).
Table 5-42: Inching Control Parameter Settings

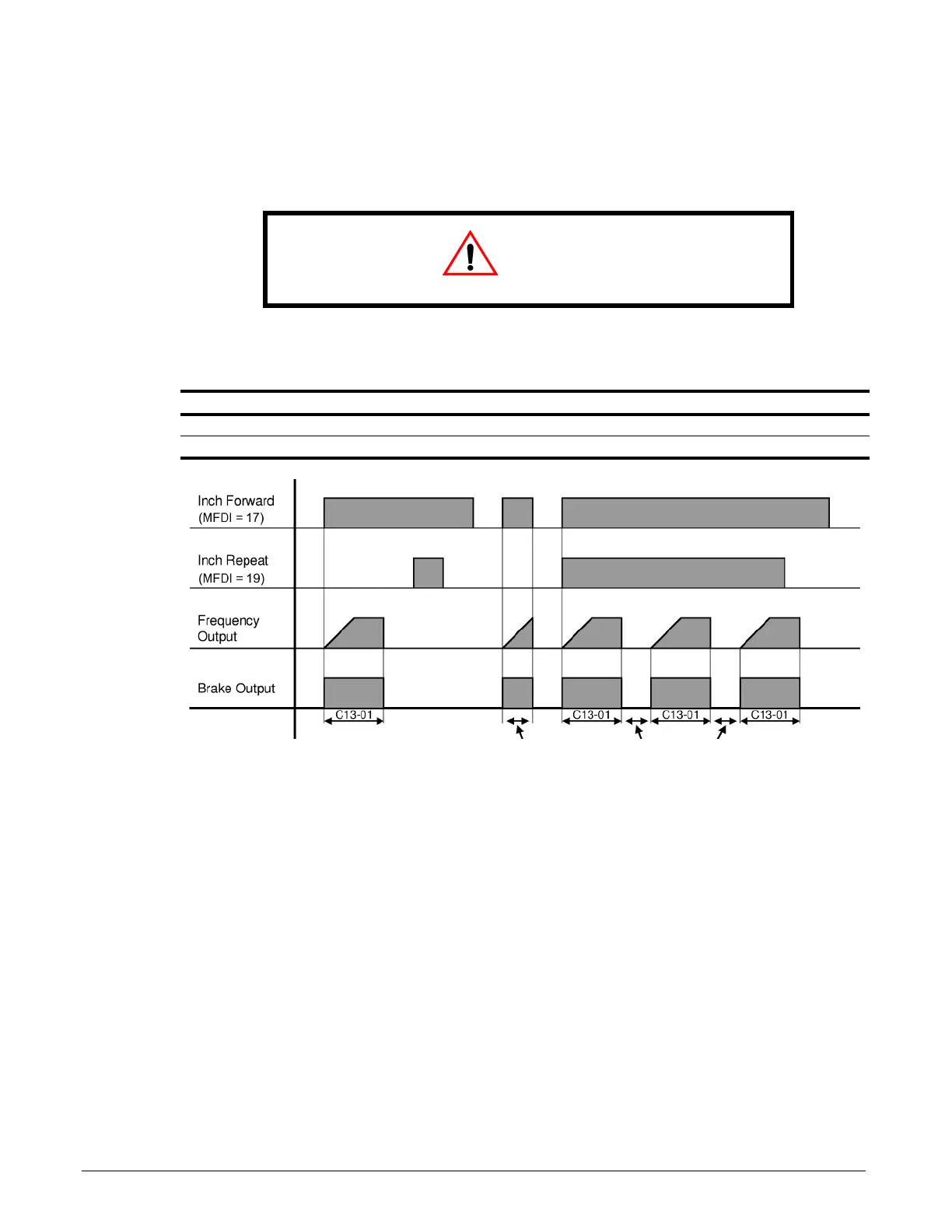

Figure 5-16: Inching Function and Inching Repeat
Parameter Display Function Range Default Model
C13-01 Inch Run Time Inching Control run time. 0.00–2.55 sec 1.00 G+/VG+
C13-02 Repeat Delay Tim Inching Control repeat delay time. 0.00–2.55 sec 1.00 G+/VG+
CAUTION
A directional input is not needed to enable motor torque.
