IMPULSE®•G+ & VG+ Series 4 Instruction Manual - February 2017

3-17

Interface Circuit Board

S4IF DIP Switches and Jumper

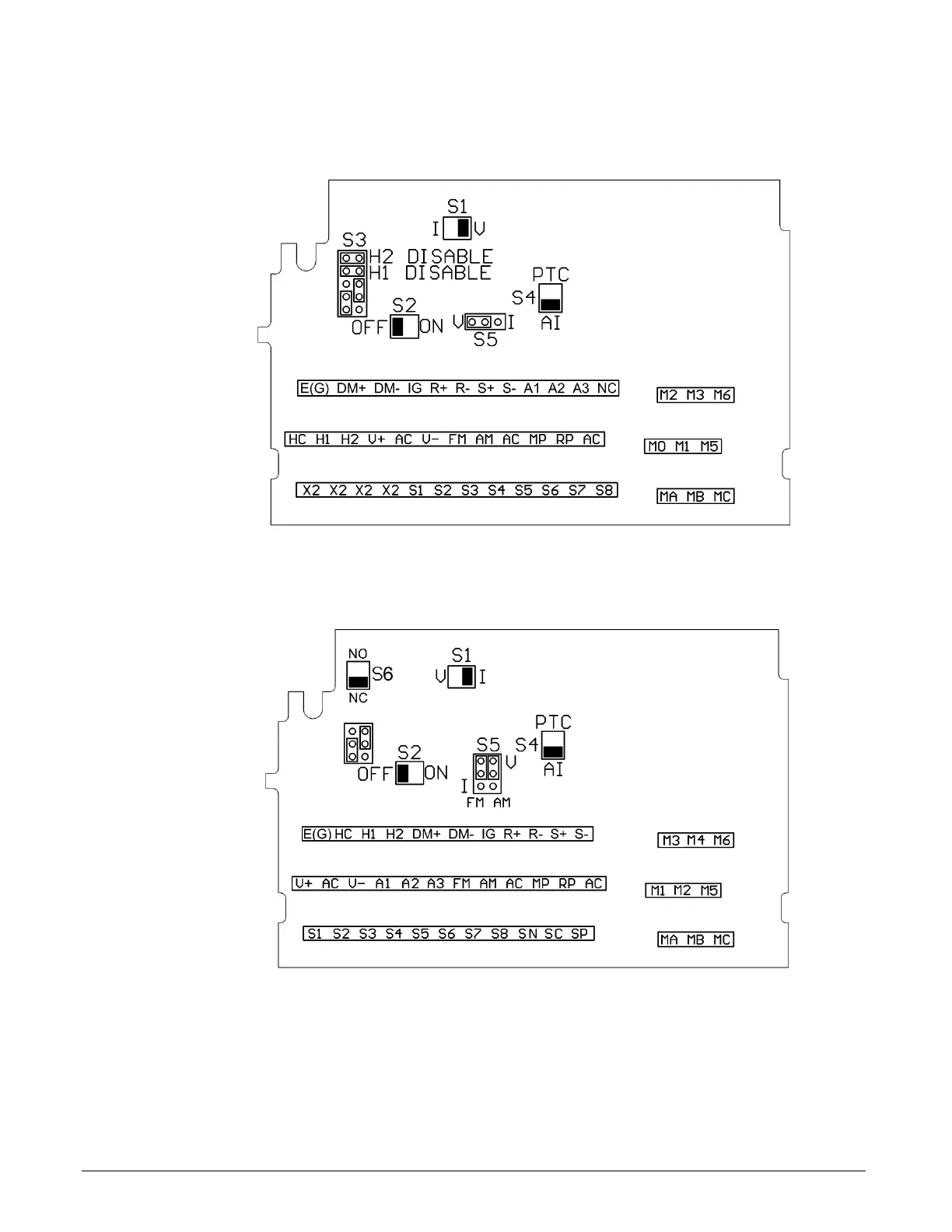

Figure 3-12: S4IF DIP Switches and Jumper Locations for 120 VAC, 42–48 VAC, and

24 VAC)

Figure 3-13: S4IF DIP Switches and Jumper Locations for 24 VDC
