Torque Limit
IMPULSE
®
•G+ and VG+ Series 4 drives dynamically control the torque output of the motor while
running. The Torque Limit Function limits the amount of torque the motor is capable of producing in
Open and Closed loop vector control.

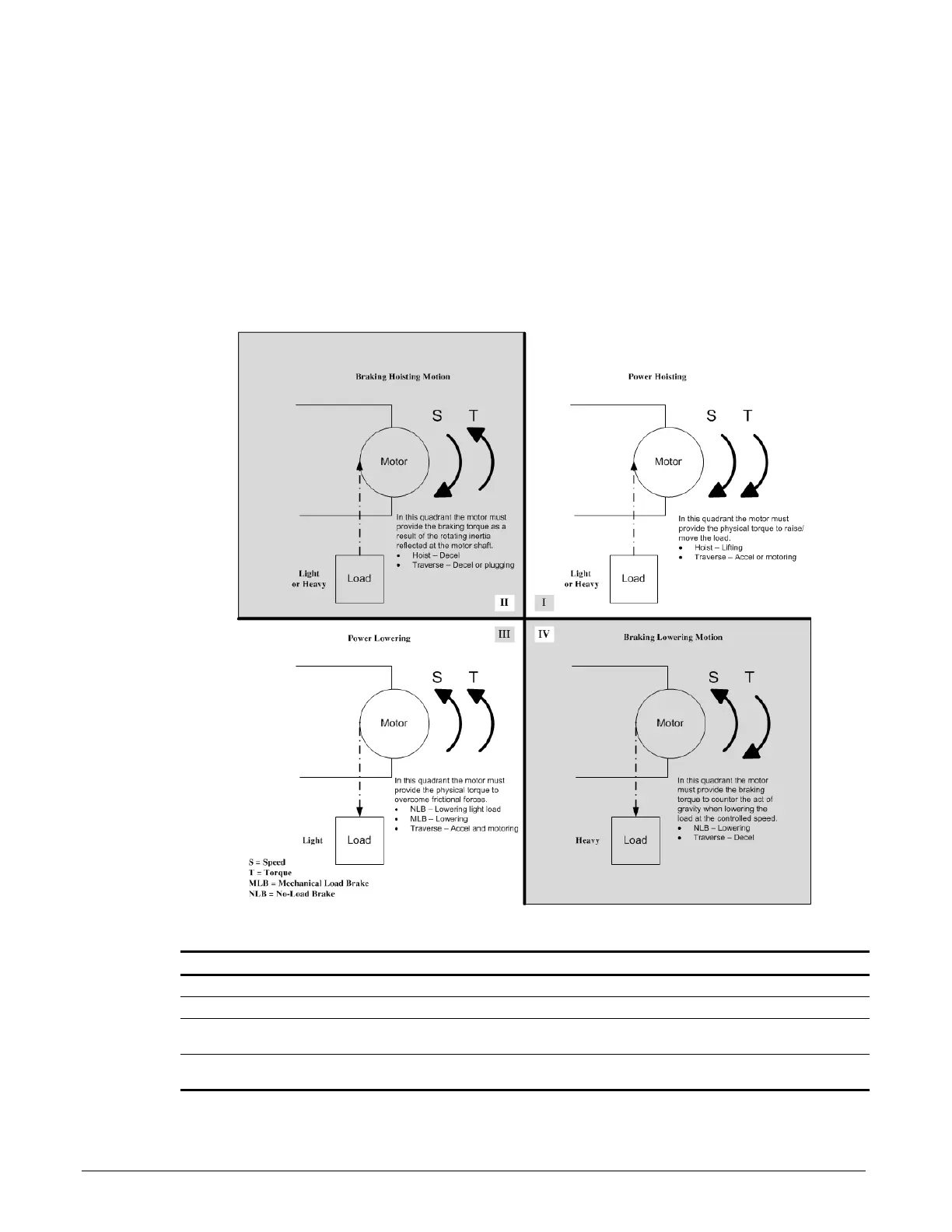

• Forward Motoring (I)
• Forward Regenerating (II)
• Reverse Motoring (III)
• Reverse Regenerating (IV)
Table 5-30: Torque Limit Parameter Settings
Parameter Display Function Range Default Model
C07-01 Trq Limit FWD FORWARD torque limit 0–300% 150 G+/VG+
C07-02 Trq Limit REV REVERSE torque limit 0–300% 150 G+/VG+
C07-03 Trq Lmt FWD Rgn Regenerative torque limit at
FORWARD
0–300% 180 G+/VG+
C07-04 Trq Lmt REV Rgn Regenerative torque limit at
REVERSE
0–300% 180 G+/VG+
