Valve Rocker
Maintenance / Disassembly and reassembly
A5.05. 01.02.02.00
30000
M20
en / 29.05.2000 IB021075 3/3
01
Ĺ

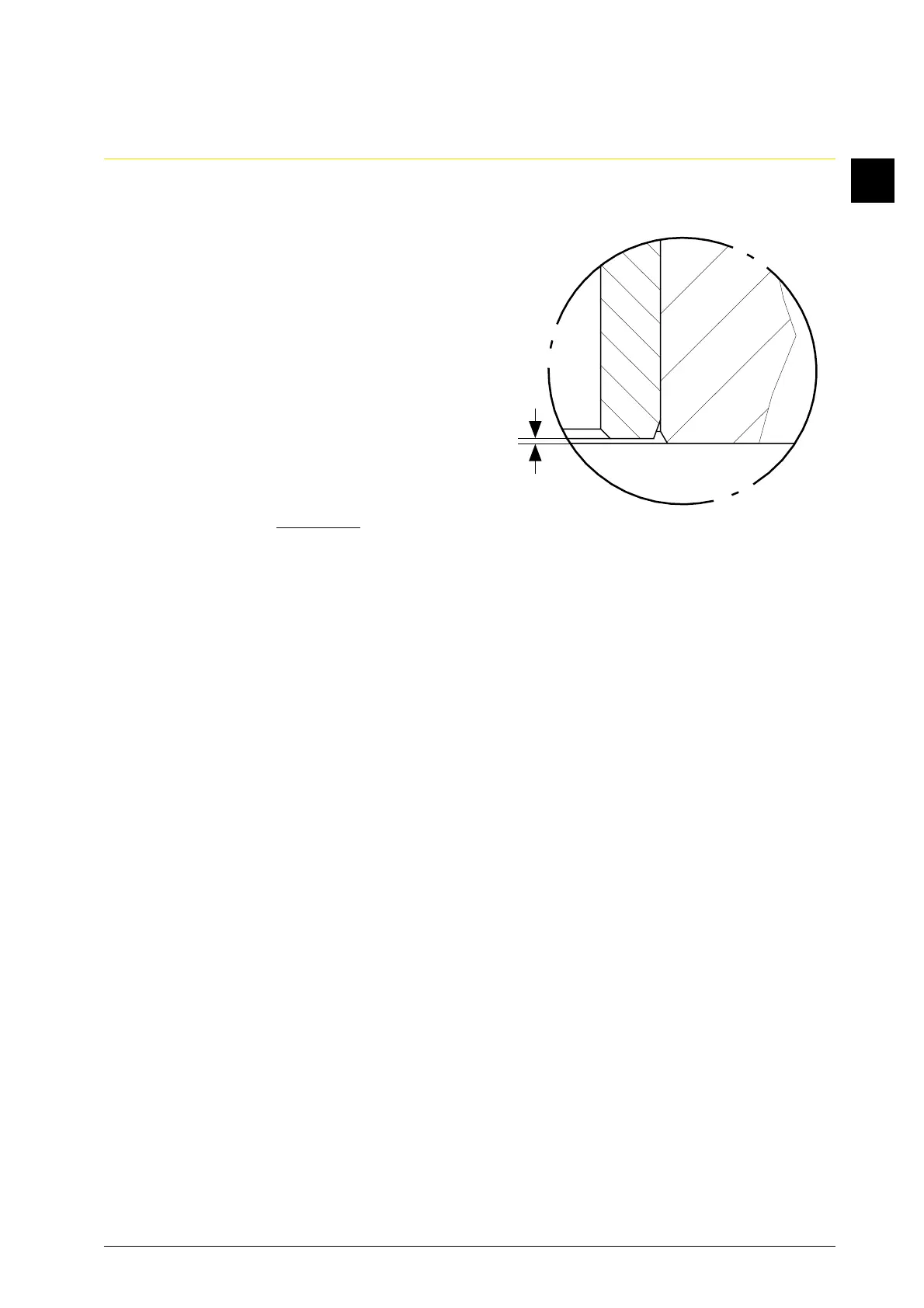

6. Reassembly
Note:
Valve rocker axle must be undamaged
and free of burrs.
6.1 Oil surfaces of the bushes of the inlet
valve rocker (Fig. 1/3) and exhaust valve
rocker (4) and rocker axle and carefully
move the valve rocker onto the axle. Do
not tilt valve rocker.
6.2 Fix the valve rocker with supporting
disc (2) and circlip (1) axially.
6.3 Mount the valve rocker bracket on the
cylinder head (01.02.01.nn) and carry
out lube oil flow control.
