MAK M20 - Cylinder Liner Maintenance;Reassembly

Cylinder Liner
Maintenance / Reassembly
A5.05. 03.04.02.00
M20
en / 21.08.2000 IB001369 1/2
03
Ĺ
See also: 03.04.01.nn
Spare parts list: B1.05.03.2.1110
Time requirement: 1 Pers./ 0,50 h
Personnel qualification: skilled engine hand
---------------------------------------------------------------------------------------------------------------------
-
Operating medium: Heavy fuel and distillate fuel
Tools:
Device for mounting and extracting the W1 2.9216-A
cylinder liners
Auxiliary material:
Vaseline *
* or a product of equal standard
Note:
After fitting a new cylinder liner, the
engine must be driven in according to
the driving-in regulation A3.10.01.nn!
Sequence of operations:
1. Clean cooling water distributor housing
before installation.
2. Insert new O-rings (Fig. 1/1 and 2) at the
cylinder liner collar and in the cooling
water distributor housing (3).
Attention:
Fit the O-rings with vaseline or green
grease soap untwisted in the grooves;
do not pull the rings over the liner
collar.
3. Insert the cylinder liner with mounting
device (W1) in the cylinder block and
crankcase (4) by means of an extracting
device.
W1
3
1

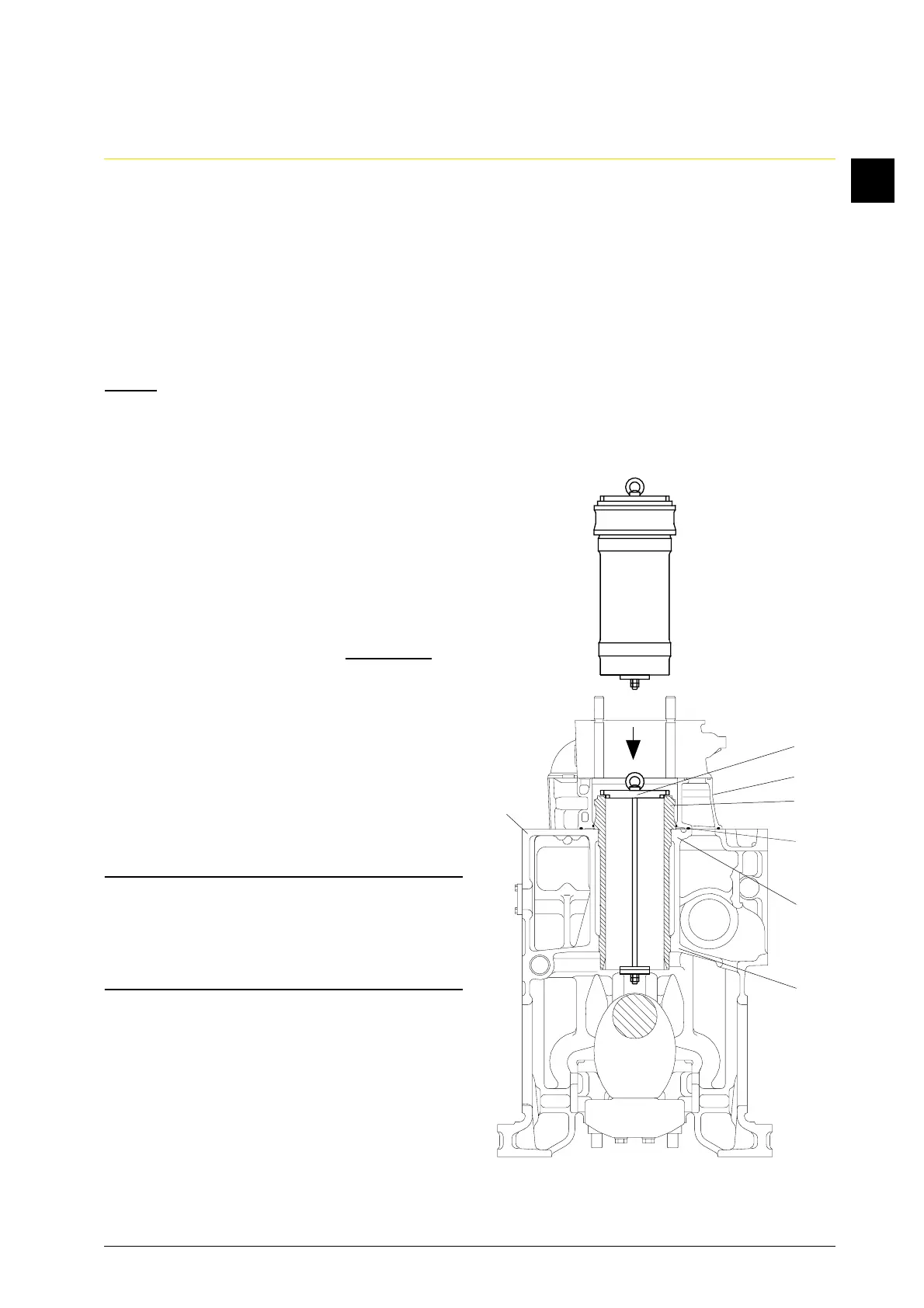

Fig. 1
2
5
5
