Maintenance / Disassembly and reassembly
A5.05. 01.05.50.00
M20
en / 13.06.1997 IB003153 1/3
01
Ĺ
See also:
Spare parts list: B1.05.01.2.2144
Time requirement: 1 Pers./ 0,25 h
Personnel qualification: skilled engine hand
---------------------------------------------------------------------------------------------------------------------
Operating medium: Heavy fuel and distillate fuel
ĭ Safety note:
Depressurize system before commencing work.
Auxiliary material:
soft green soap*
* or product of equal standard
Sequence of operations:
1. Disassembly

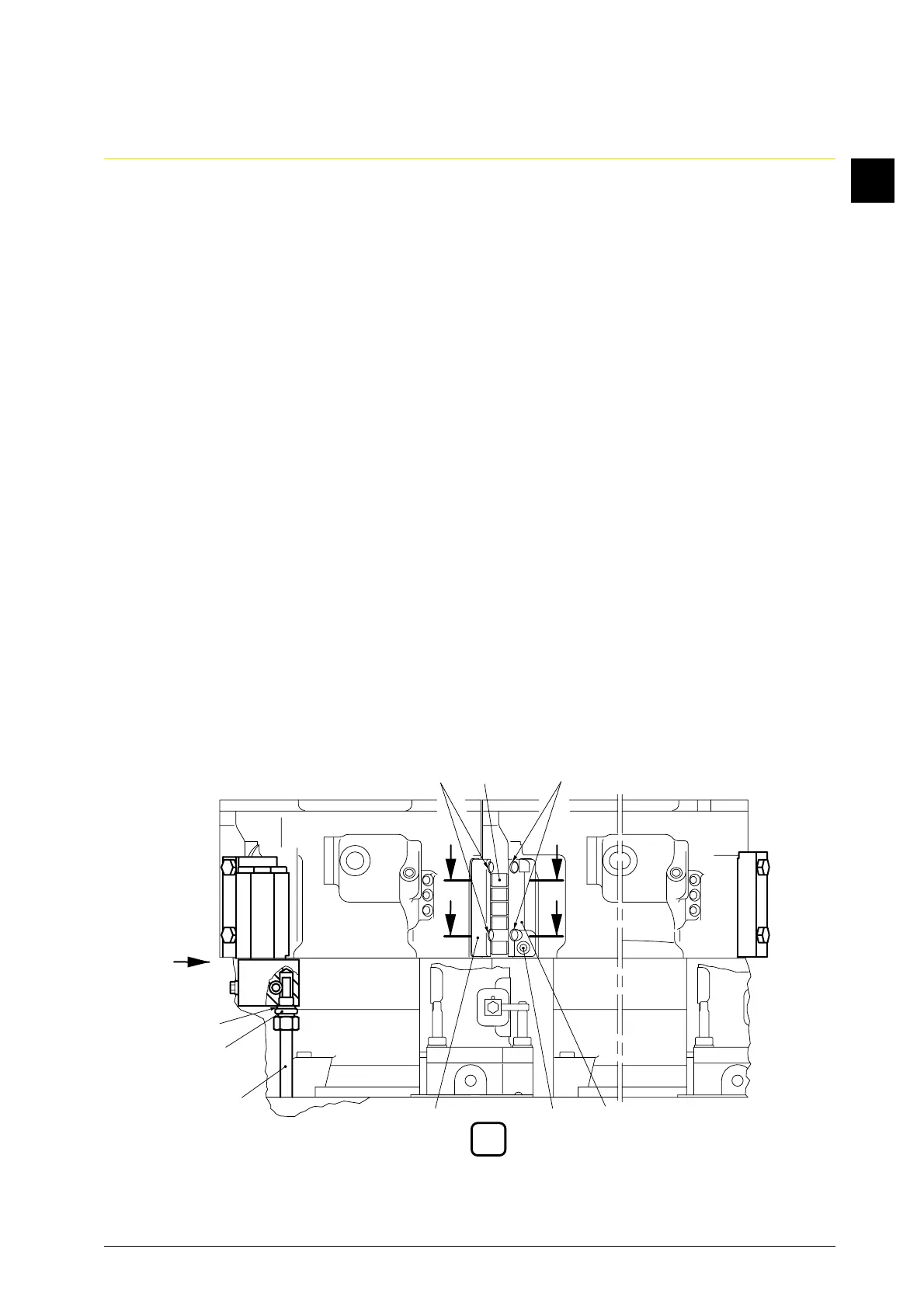

1.1 Disassemble lubricating oil line for the injection pump (fig. 1/1) at the flange (3b) of the me-
dia line.
1.2 Remove cheese head screws (2).
1.3 Remove flange (3a and 3b) together with sleeves (4).
A
2
B
A
B
2
4
Z
1
6
7
3b
1
5
3a
