Initial operation
Putting into service/loading
A3.05.18.04
M20-M601C
en / 01.06.93 BA000050 2/3
Ĺ
Increasing the load of a warmed-up engine (generator engine)
The load can only be increased depending on the continuous power P
me
according to the values
recommended by DIN 6280 and ISO 3046. The graph below shows the possible load stages at which
the frequency settling time stipulated by DIN/ISO is possible.

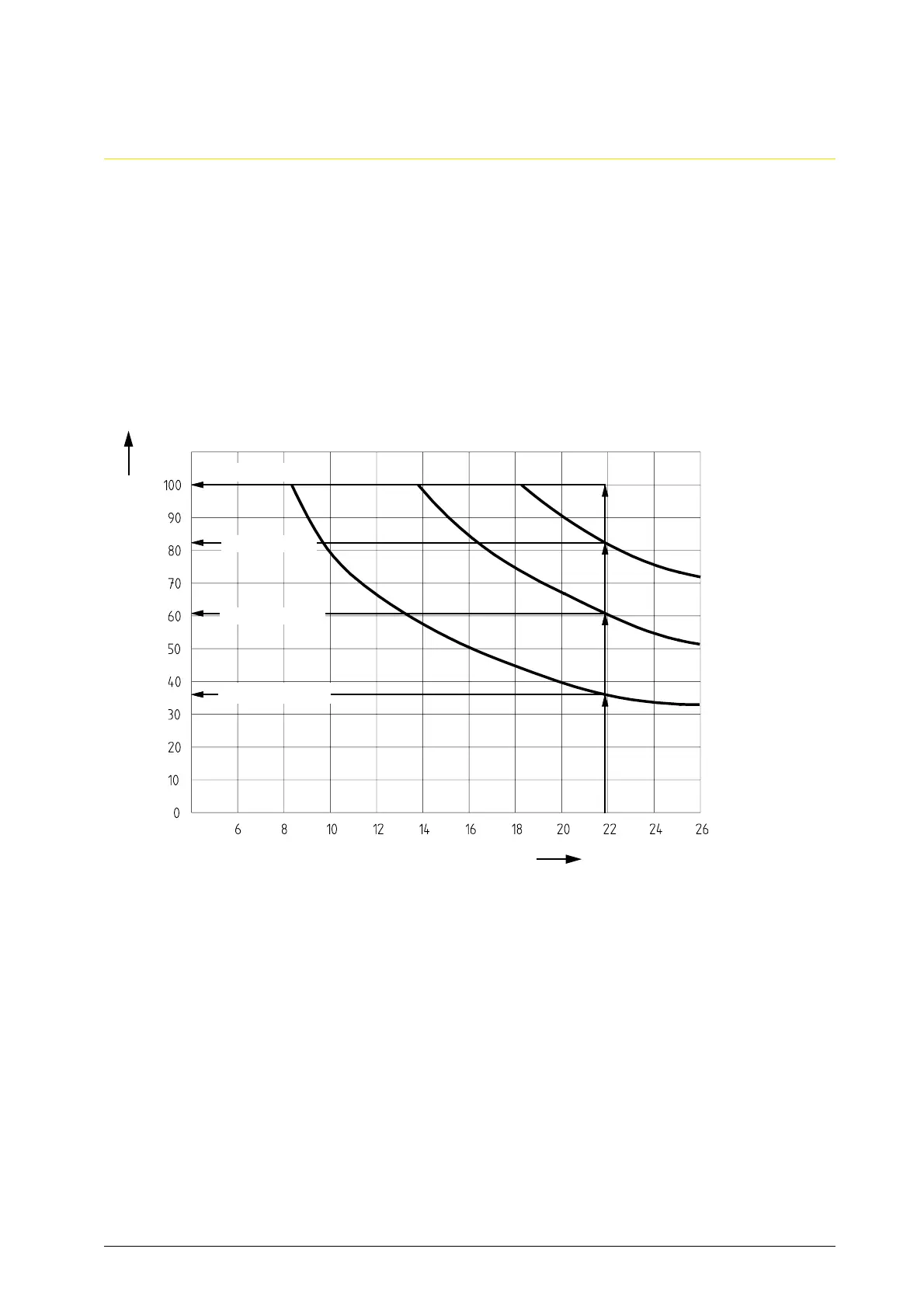

The diagram shows guide values for load stages in % engine rating depending on the mean
effective piston pressure of rated output, on the example of a 6 M20-engine with a full load
p
me
= 21.9 bar.
1. max. load stage from 0 % to 37 % P
nom
2. max. load stage from 37 % to 61 % P
nom
3. max. load stage from 61 % to 83 % P
nom
4. max. load stage from 83 % to 100 % P
nom
P
me
of rated output (bar)
Limit curve for
3rd load stage
Limit curve for
2rd load stage
Limit curve for
1rd load stage
Load increase referred to rated output (%)
4rd load stage
3rd load stage
2rd load stage
1rd load stage
