MAK M20 - Fuel Distributor Line;Manifold Line Repair;Disassembly and Reassembly

Fuel Distributor Line/Manifold Line
Repair / Disassembly and reassembly
A5.05. 07.15.01.00
M20
en / 21.07.93 IB002028 1/2
07
Ĺ
See also:
Spare parts list: B1.05.07.2.8510
Time requirement: 1 Pers./ 0,50 h
Personnel qualification: skilled engine hand
---------------------------------------------------------------------------------------------------------------------
-
Operating medium: Heavy fuel and distillate fuel
Tools:
Torque wrench 20 - 90 Nm W1 * 1.9454-20
* not available as figure
Auxiliary material:
Molykote paste “G-Rapid Plus” **
** or a product of equal standard
Sequence of operations:
1. Disassembly
1.1 Drain fuel distributor line and manifold line (drain spigot at anti-drive end above fuel doub-
le filter).
1.2 Disassemble covering.
1.3 Loosen screws (Fig. 1/1 and 2).
1.4 Remove distributor housing (3) with equalizer (4).
1.5 Pull equalizer (4) out of distributor housing (3).
242 2
2
2
Z

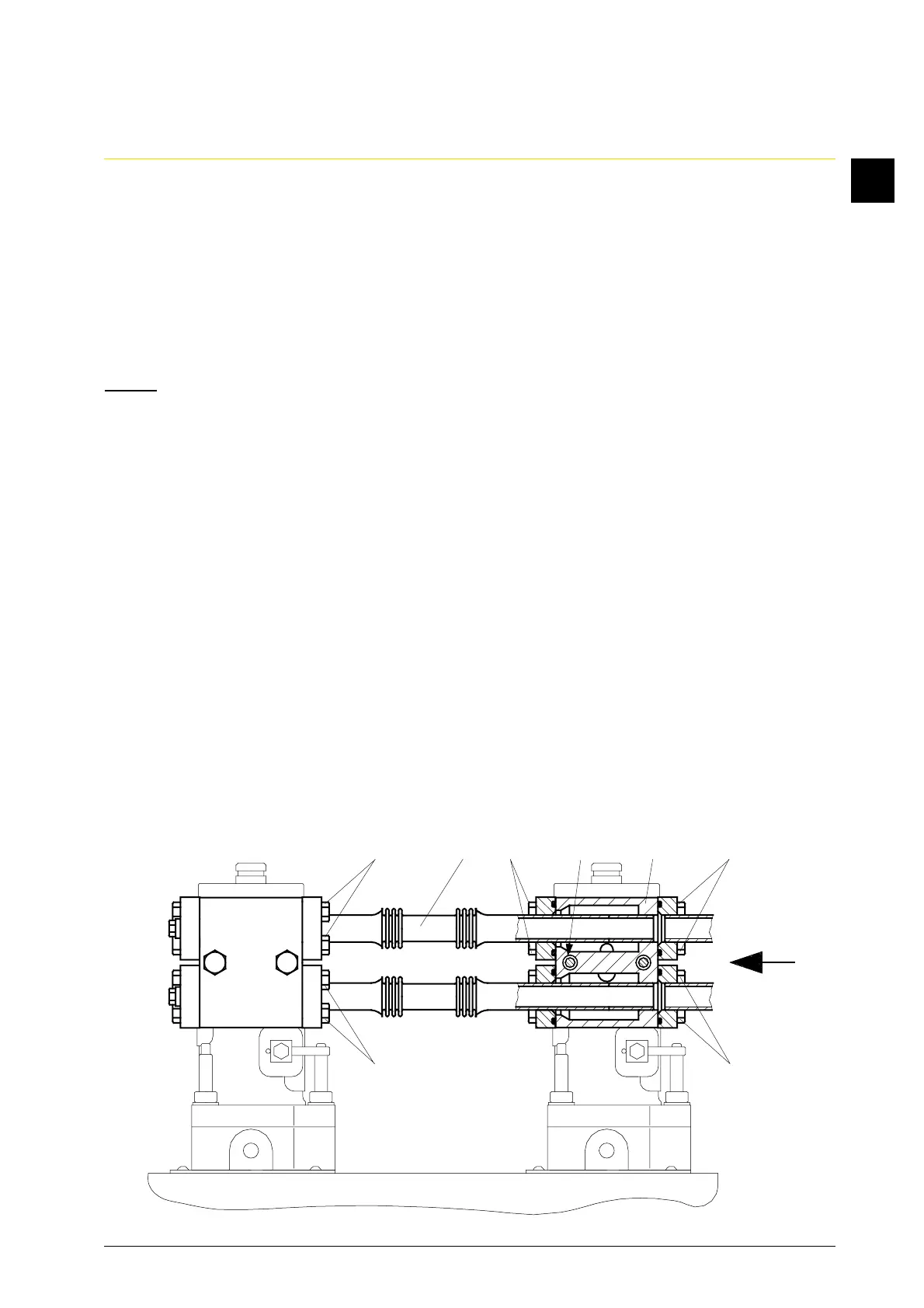

Fig. 1
1 3
