MAK M20 - Page 400

Fuel Distributor Line/Manifold Line
Repair / Disassembly and reassembly
A5.05. 07.15.01.00
M20
en / 21.07.93 IB002028 2/2
07
Ĺ

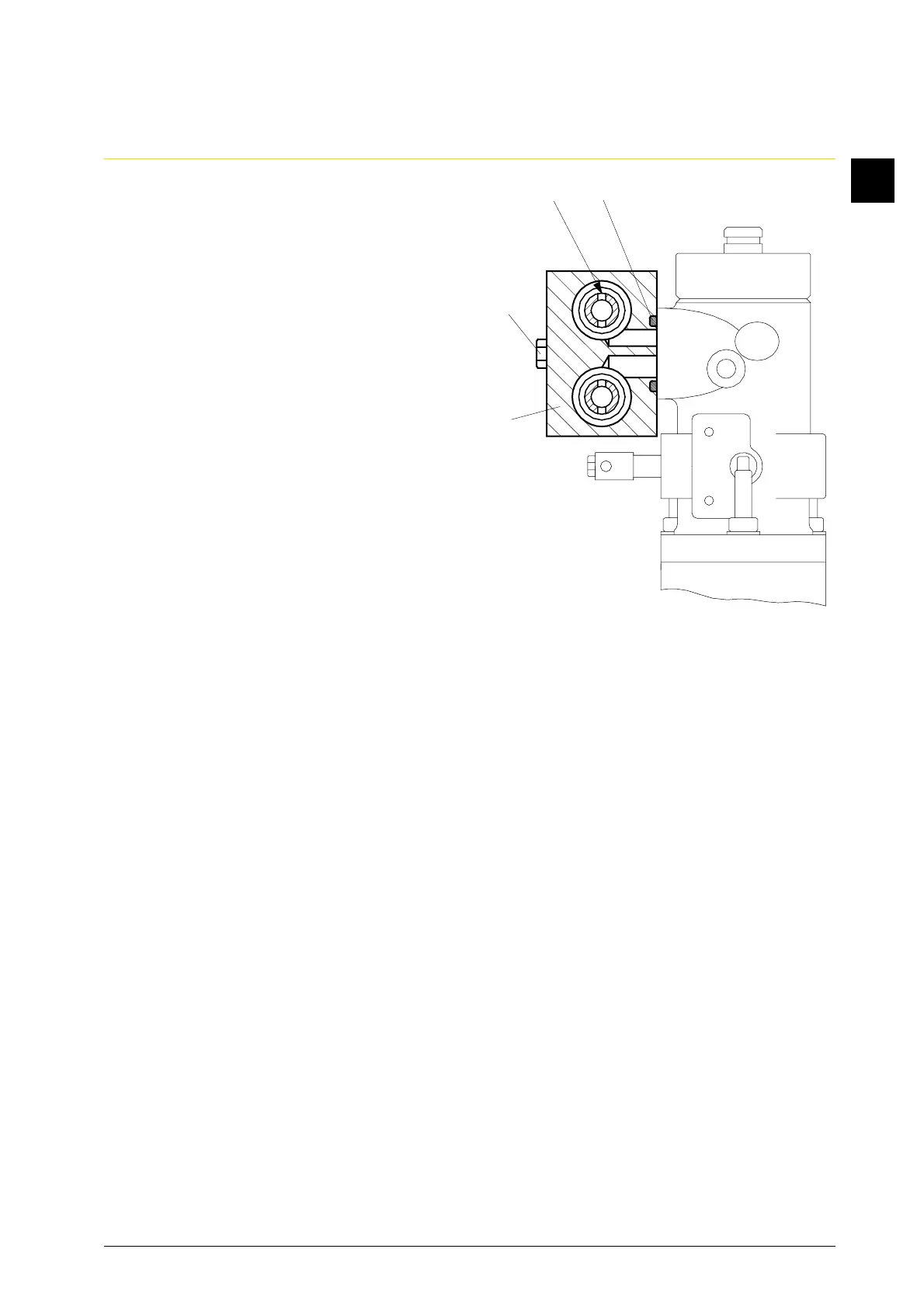

2. Reassembly
2.1 Clean faces at distributor housing (3).
2.2 Insert new O-rings (5).
2.3 Check bore (6) in equalizer for passage.
2.4 Insert and reassemble equalizer (4) in
distributor housing (3).
2.5 Insert screws (1) with Molykote paste
“G-Rapid Plus” and tighten them with a
Torque = 50 Nm.
2.6 Insert screws (2) with Molykote paste
“G-Rapid Plus” and tighten them with a
Torque = 34 Nm.
2.7 Replace covering.
