Instructions for heavy fuel Operation
Care and supervision / Lubricating Oil
A3.04.08.01
M20/M282/M332C/M452/M453C/M551/M552C/M601/M601C
en / 11.07.1996 BA000015 2/4
Ĺ

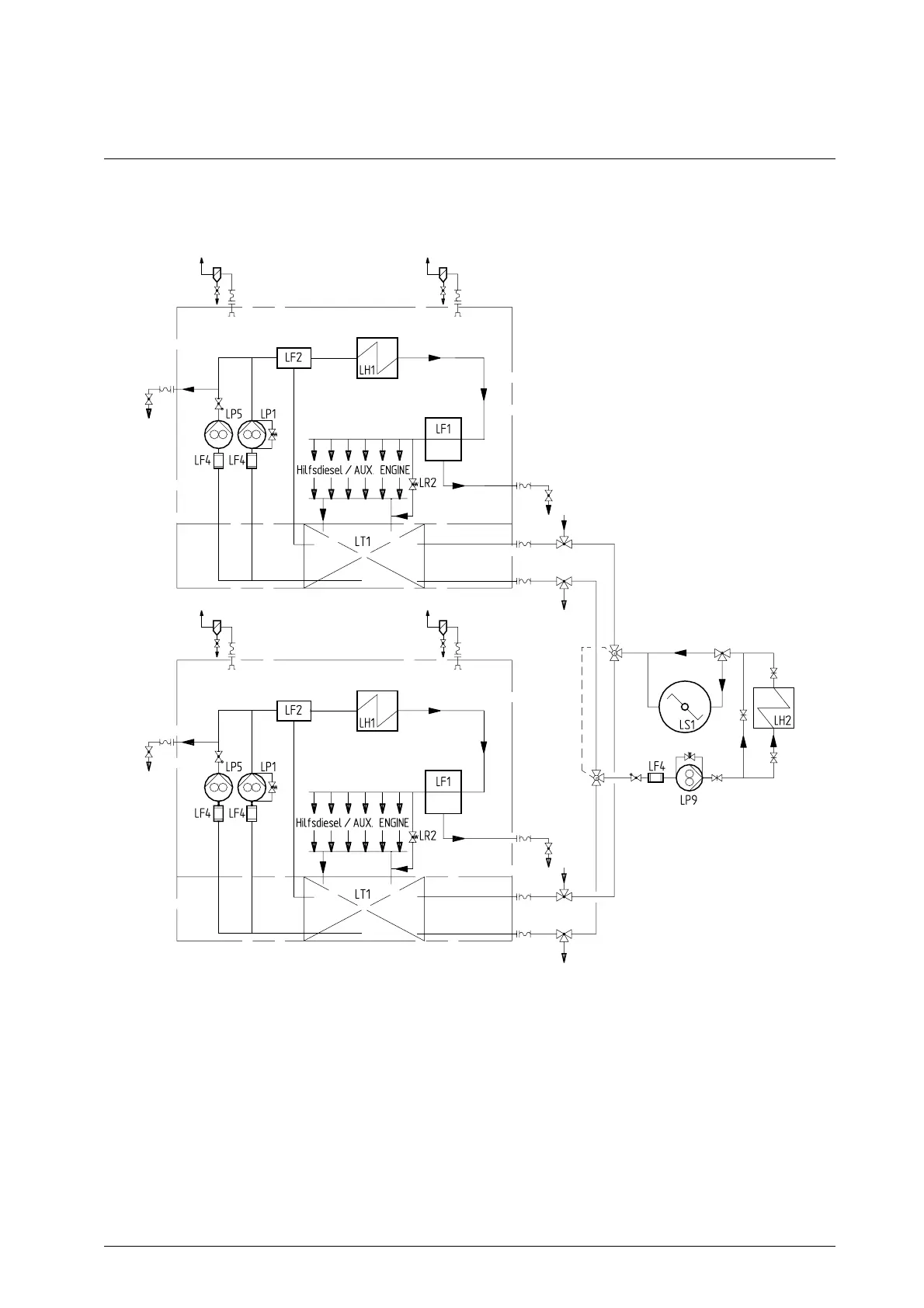

Principal diagrammatic view of
the lubricating oil circulatory
system
LF1 Duplex lube oil filter
LF2 Lube oil automatic filter
LF4 Suction strainer
LH1 Lube oil cooler
LH2 Lube oil preheater
LP1 Lube oil force pump
LP5 Prelubrication pump
LP9 Transfer pump (separator)
LR2 Oil pressure regulating valve
LS1 Lube oil separator
LT1 Lube oil sump tank
