Cylinder Liner
Maintenance / Reassembly
A5.05. 03.04.02.00
M20
en / 21.08.2000 IB001369 2/2
03
Ĺ
4. The cylinder liner must slide into the
fitting of the cylinder block and
crankcase (Fig. 1/5) through its own
weight.
Note:

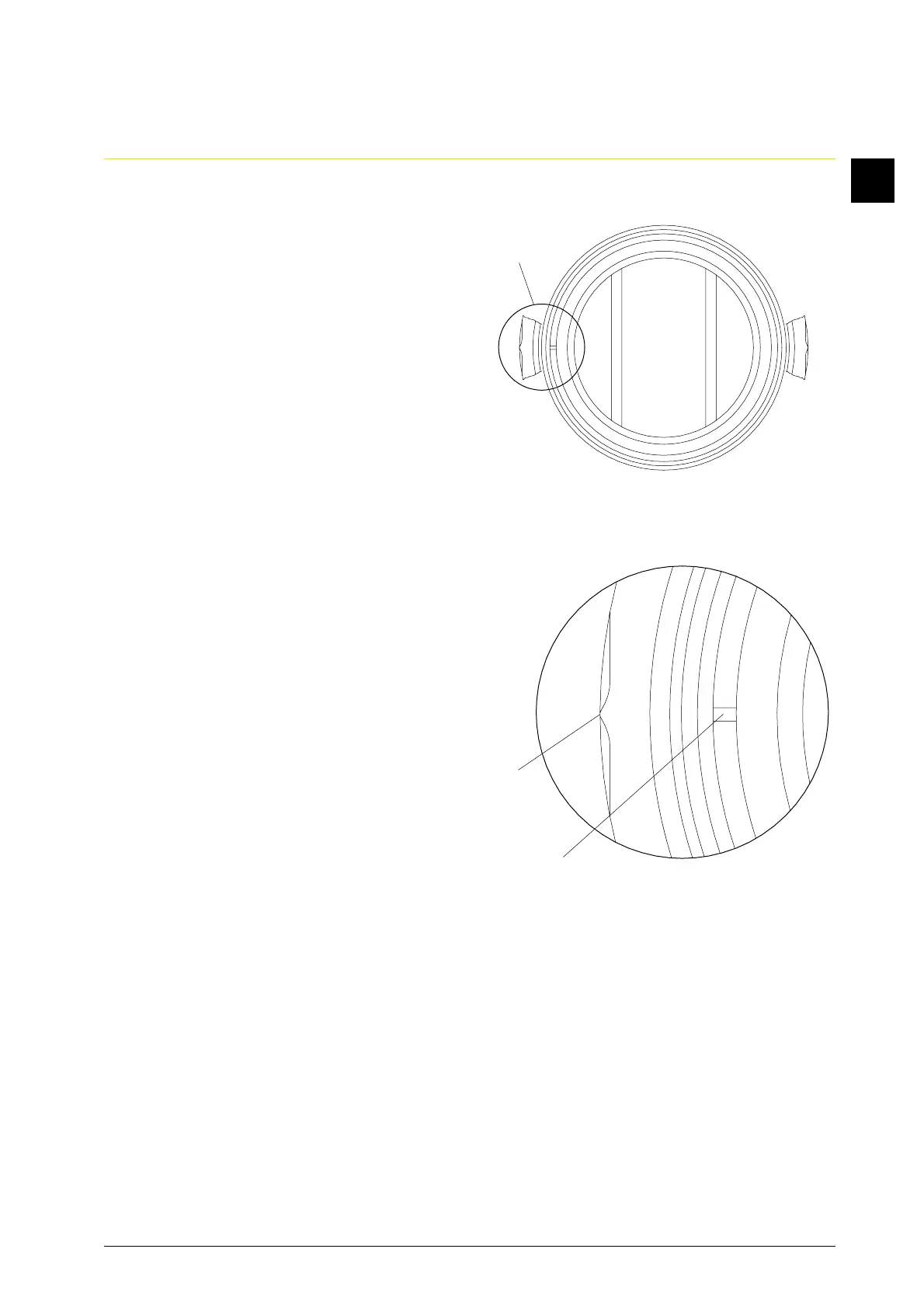

Insert the cylinder liner in such a way,
that the markings (11) (Fig. 2/X, top
view liner collar) point in longitudinal
direction to the coupling side.
The cast nose (12) serves as an aligning
aid at the cooling water distributor
housing.
Fig. 2
X
X
12
11
