Cylinder Head
Maintenance / Disassembly
A5.05. 01.06.01.00
M20
en / 11.07.2001 IB001347 2/4
01
Ĺ
3. Disassemble lube oil line for the injection pump at the respective block piece of the
medium guide and at the injection pump.
Attention:
Screw off pressure gage line from end flange (lube oil jet cooling) during disassembly of
the last cylinder head at counter-coupling side.
4. Loosen and remove block pieces and/or end flange (Cyl. 1) of the medium guide of the
cylinder head to be disassembled.

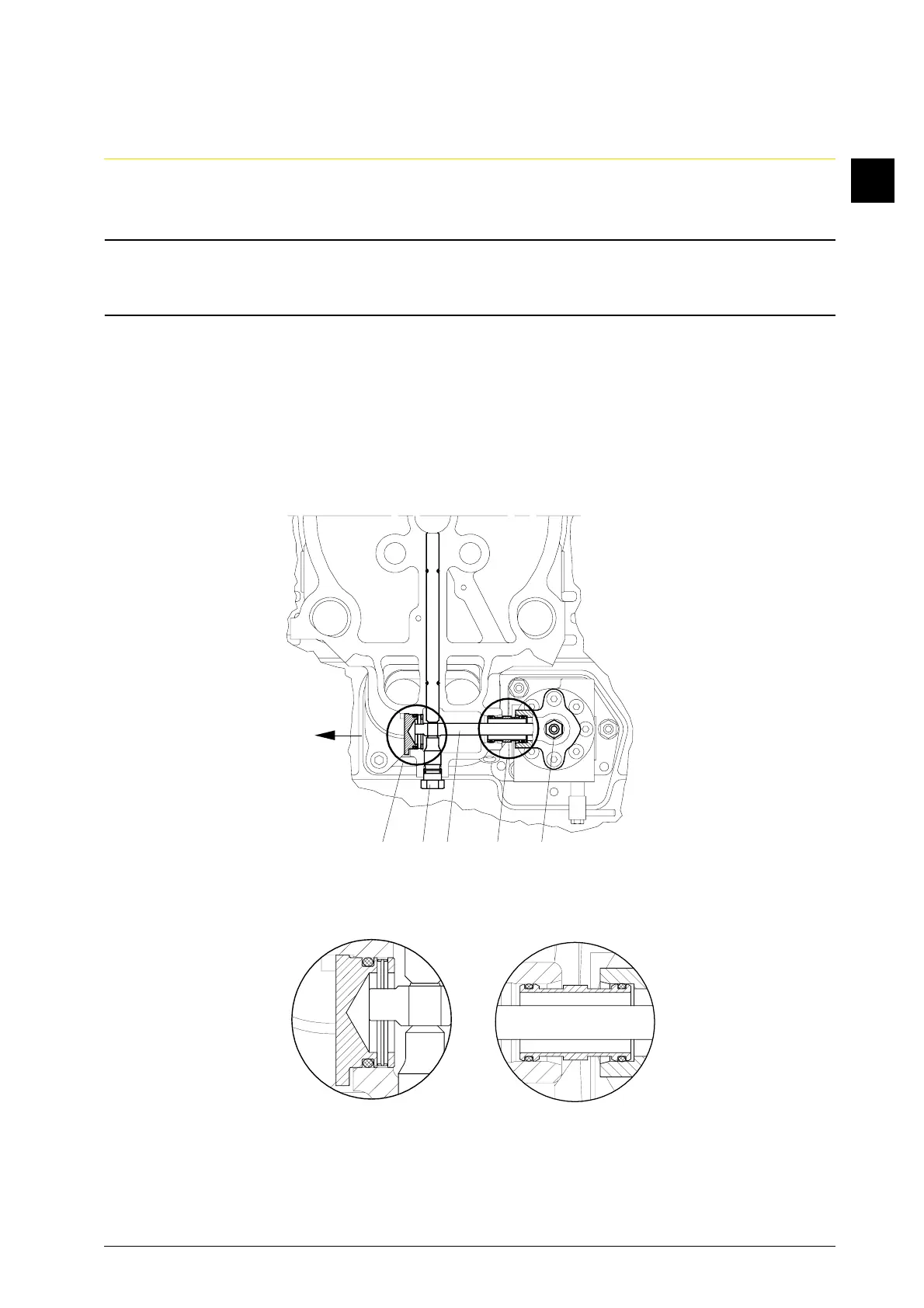

5. Loosen pressure screws (Fig. 1/1 and 2) and lever off transverse pressure piece (3) with
cover (X) and pull to the left out of the injection pump and the cylinder head.
6. Slide sleeve (Y) to the left in the cylinder head frame.
7. Disassemble covering plate between exhaust pipe and cylinder head.
2Y31X
Fig. 1
X Y
