Valve Seat Ring
Repair / Checking
A5.05. 01.08.02.01
M20
en / 15.03.2001 IB023062 2/5
01
Ĺ
Sequence of operations:
1. Check of valve condition

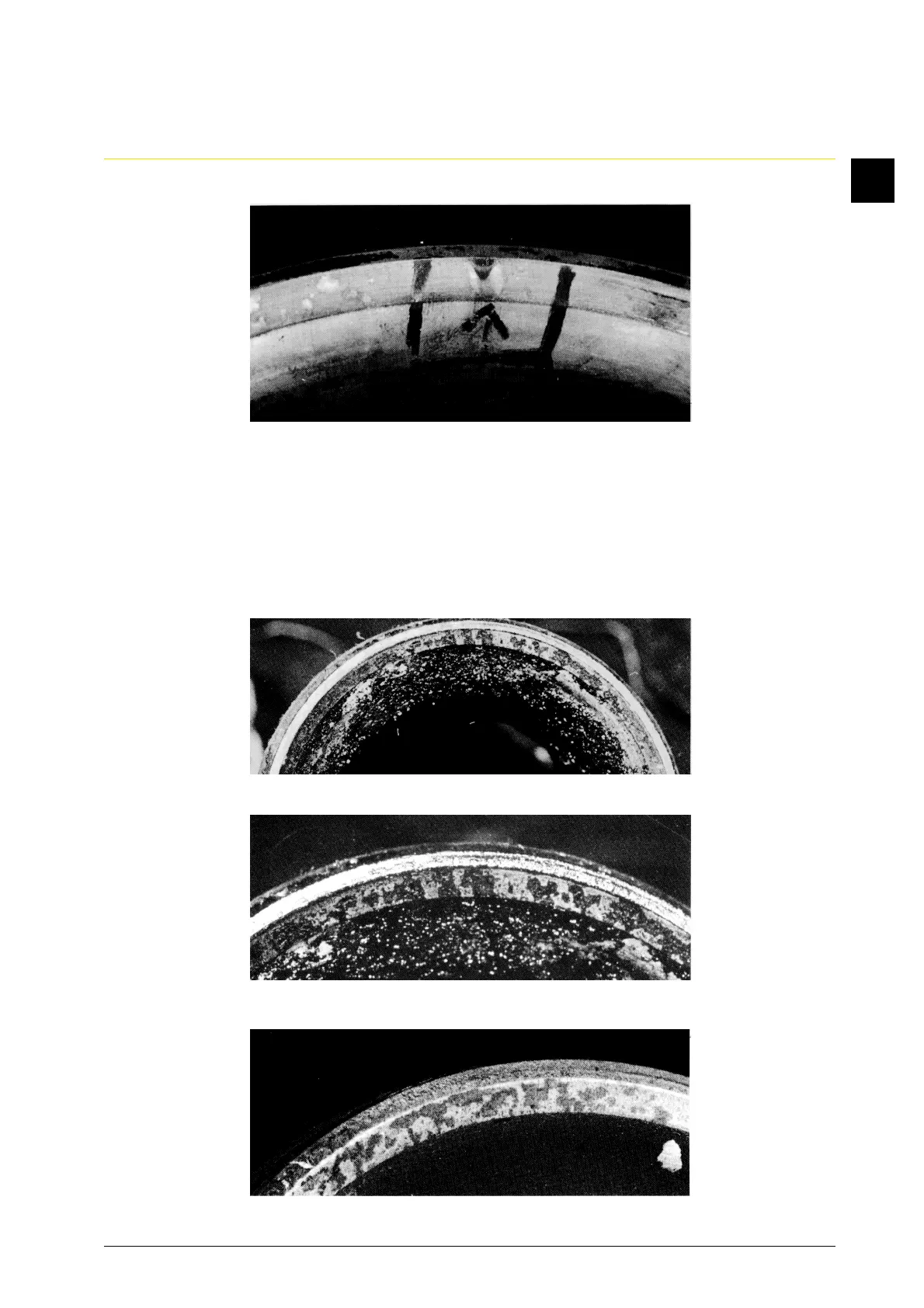

The hardness of the valve seats is designed in such a manner that a certain adaptability is
present with regard to the valve face. Carbon deposits are therefore a normal indication
and not hazardous if good cooling is present (Fig. 3, 4 and 5).
Fig. 2
Fig. 3
Fig. 4
Fig. 5
