Al-Grooved Bearings
Inspection / Evaluate
A5.05. 02.03.09.01
M20
en / 26.09.1995 IB000142 3/7
02
Ĺ

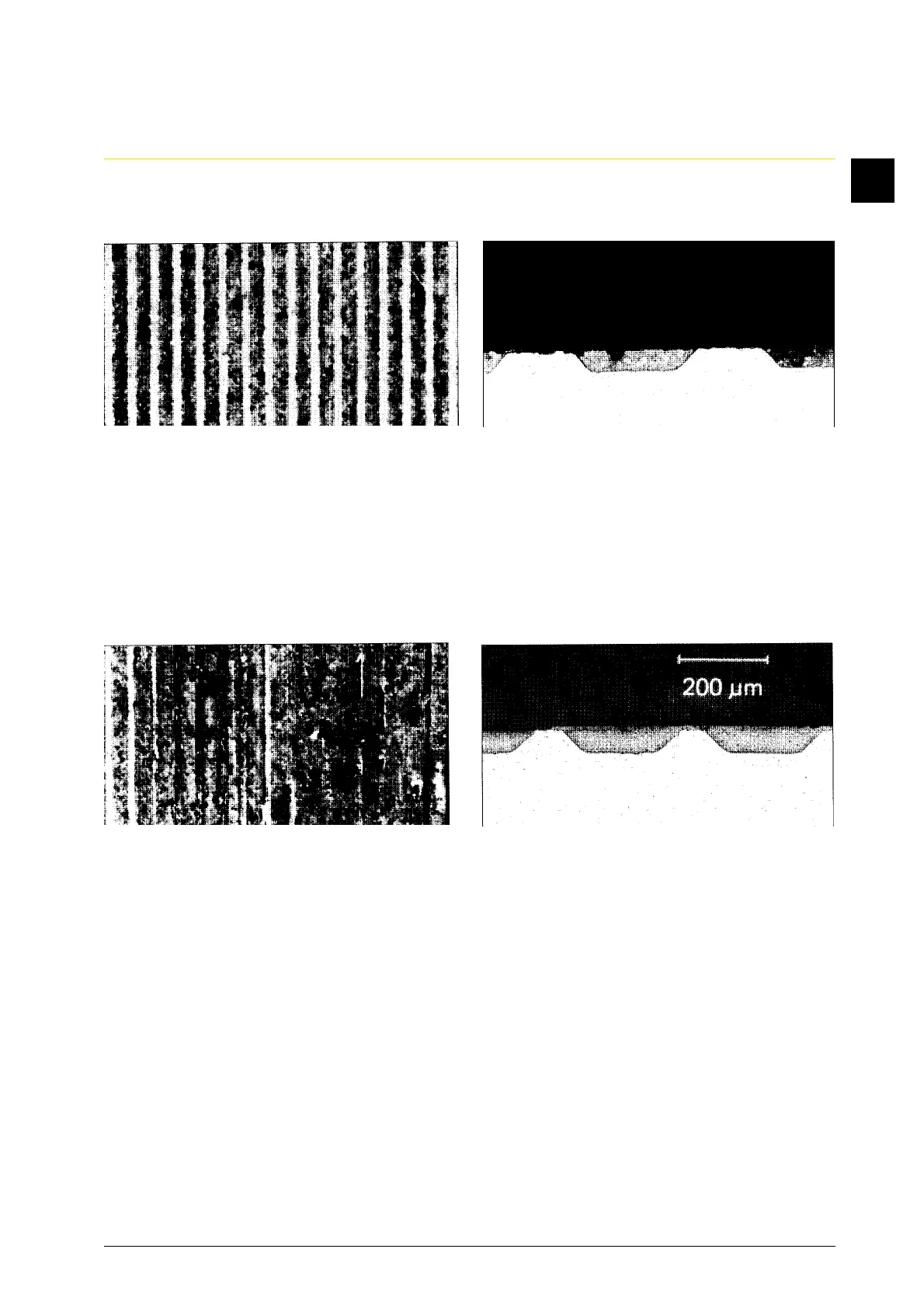

1.1 Reuse possible
Condition:
Small foreign particles spread over the entire running surface. No significant alteration of
the aluminium allow ridges (Fig. 4).
Assessment:
Reuse of the bearing shell is possible, since foreign particles are embedded in the grooves.
Condition:
The overlay has been locally “dragged” and “smeared” over the aluminium alloy ridges.
The aluminium alloy ridges can no longer be seen in some places.
Assessment:
Reuse of the bearing shell is possible.
Fig. 4
Fig. 5
