Camshaft
Repair / Disassembly and reassembly
A5.05. 04.04.01.02
M20
en / 07.04.1997 IB002116 3/3
04
Ĺ
Attention:
Do not cant camshaft piece in the
camshaft bearings during removal.
Handle with utmost caution. Danger of
destruction of the bearings.
2. Assembly
Note:

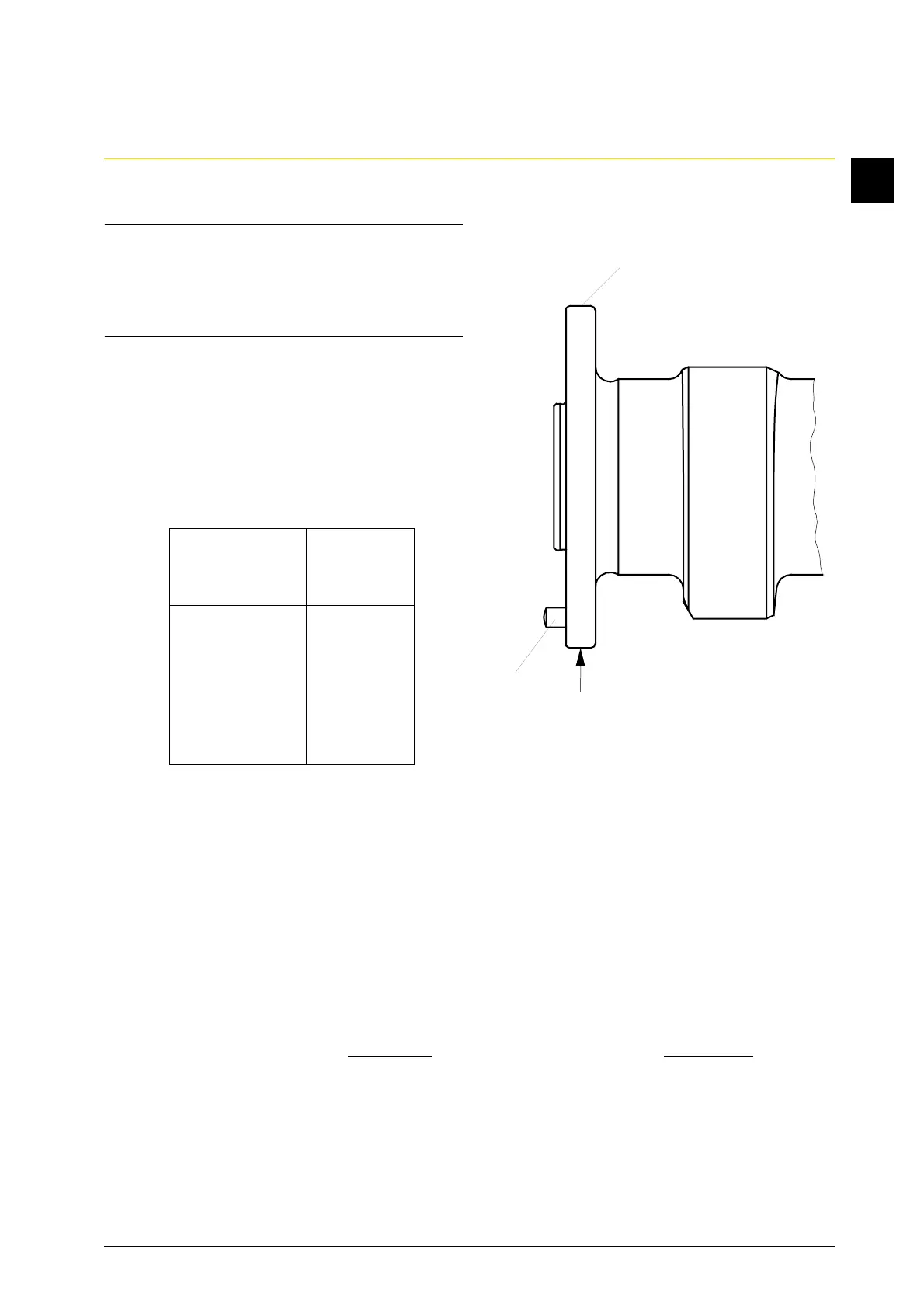

The camshaft flange (Fig. 4/31) of every
piece is pinned according to the
cylinder and position in accordance
with the firing order (32) and provided
with a flange index (33) (see table).
Camshaft Flange
piece index
cylinder No.
15
22
33
44
55
66
77
88
2.1 Position the camshaft pieces in reverse disassembly order.
2.2 Grease the threads and contact surfaces of the flange screws with Molykote paste
”G-Rapid Plus” and bolt the loosened camshaft pieces.
2.3 Tighten the flange screws crosswise with a torque of
100 Nm = 50° angle of rotation.
Remove the camshaft - mounting devices (W1).
2.4 Remove the locking screws (W2) of the raised valve and pump drive rocker.
2.5 Mount the valve rocker (01.02.01.nn) and check the valve clearance (01.01.01.nn).
2.6 Check the lubricating oil flow.
Fig. 4
33
32
31
