Compressed-Air Filter
Maintenance / Cleaning
A5.05. 05.09.06.00
24, 7500
M20/M25/M32/M43/M453C/M552C/M601C
en / 30.05.2000 IB021438 2/2
05
Ĺ

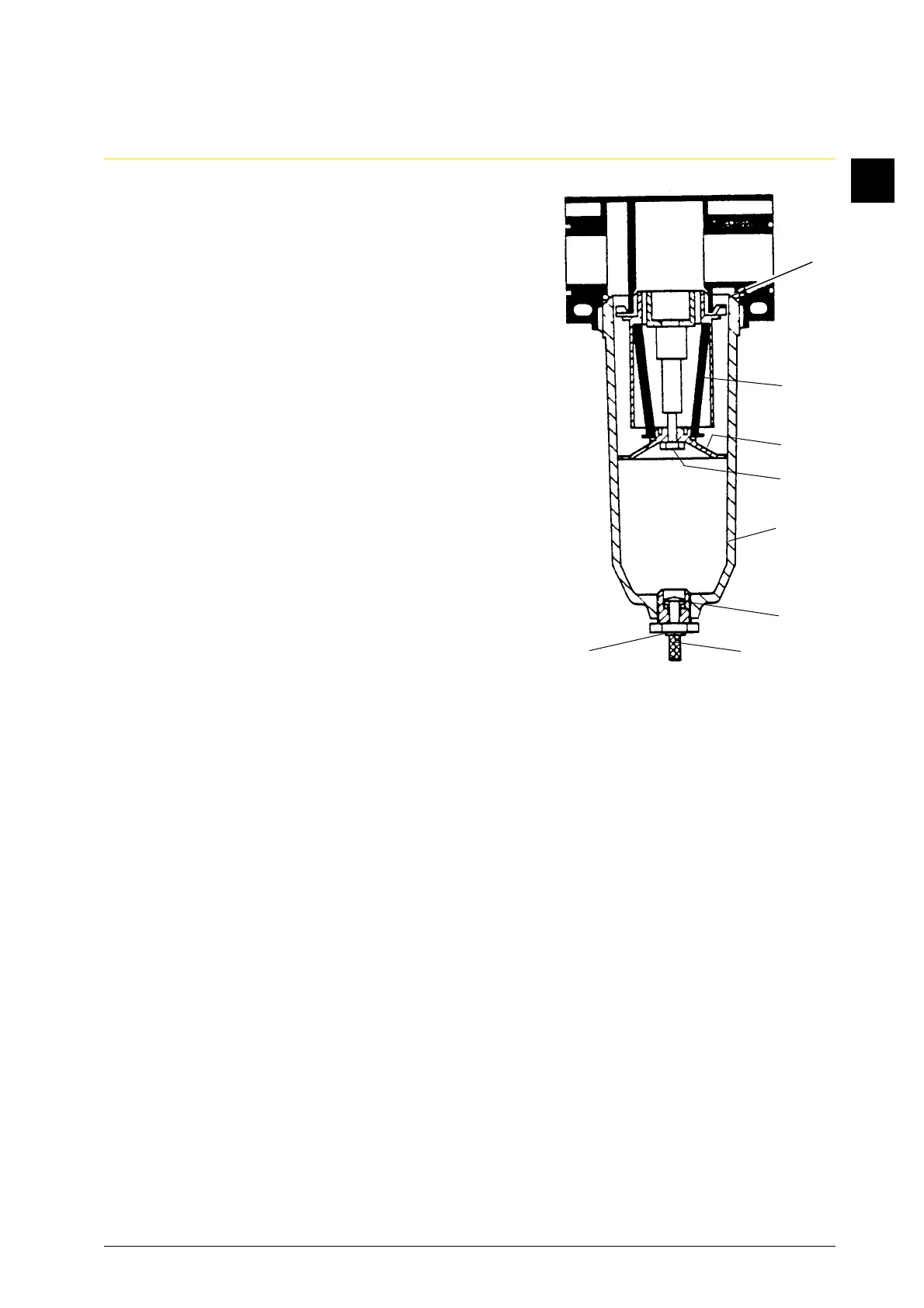

Sequence of operations:
1. Drain compressed-air filte
1.1 Loosen drain plug (7) and empty filter
completely.
1.2 Close drain plug.
2. Disassemble compressed-air filter and
clean
2.1 Loosen drain plug (7) and drain filter
completely.
2.2 Close compressed-air feed line and
secure.
2.3 Relieve compressed-air filter via drain
plug.
2.4 Loosen housing cap (5) and remove,
check O-ring (1) and replace if necessa-
ry.
2.5 Loosen Phillips screw (4), remove with
guide (3) and filter element (2).
2.6 Remove locking ring (8), unscrew drain
plug and check O-ring (6), replace if ne-
cessary.
2.7 Clean all disassembled parts and check for reuse.
2.8 Assemble compressed-air filter in reverse sequence. Open shut-off valve in the compres-
sed-air supply line.
2.9 Close drain plug after a short while.
1
2
3
4
5
6
7
8
