Injection Pump
Repair / Disassembly and reassembly
A5.05. 07.02.01.01
M20
en / 16.06.1997 IB003956 1/3
07
Ĺ
See also: A5.05.07.15.01.nn
Spare parts list: B1.05.04.2.3580
Time requirement: 1 Pers./ 1,00 h
Personnel qualification: skilled engine hand
---------------------------------------------------------------------------------------------------------------------
Operating medium: Heavy fuel and distillate fuel
Tools:
Torque wrench 40 - 180 Nm W1 * 1.9454-40
* not available as figure
Auxiliary material:
soft green soap**
Molykote paste “G-Rapid Plus” **
** or a product of equal standard
Sequence of operations:
1. Disassembly
1.1 Empty fuel system (drain cock at counter-coupling side over fuel double filter).

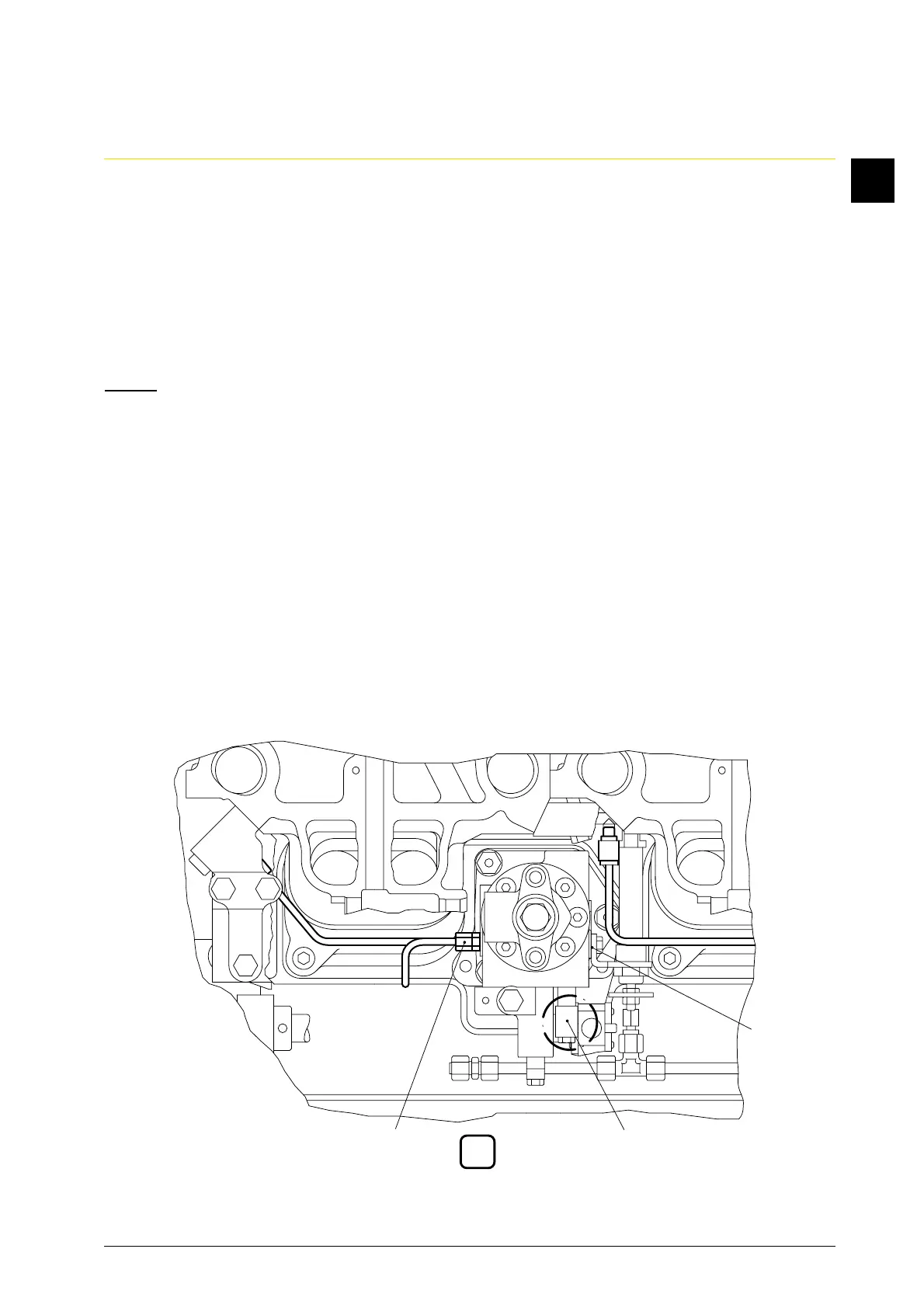

1.2 Disassemble lube oil lines (Fig. 1/1) at the injection pump.
3
2
X
1
1
